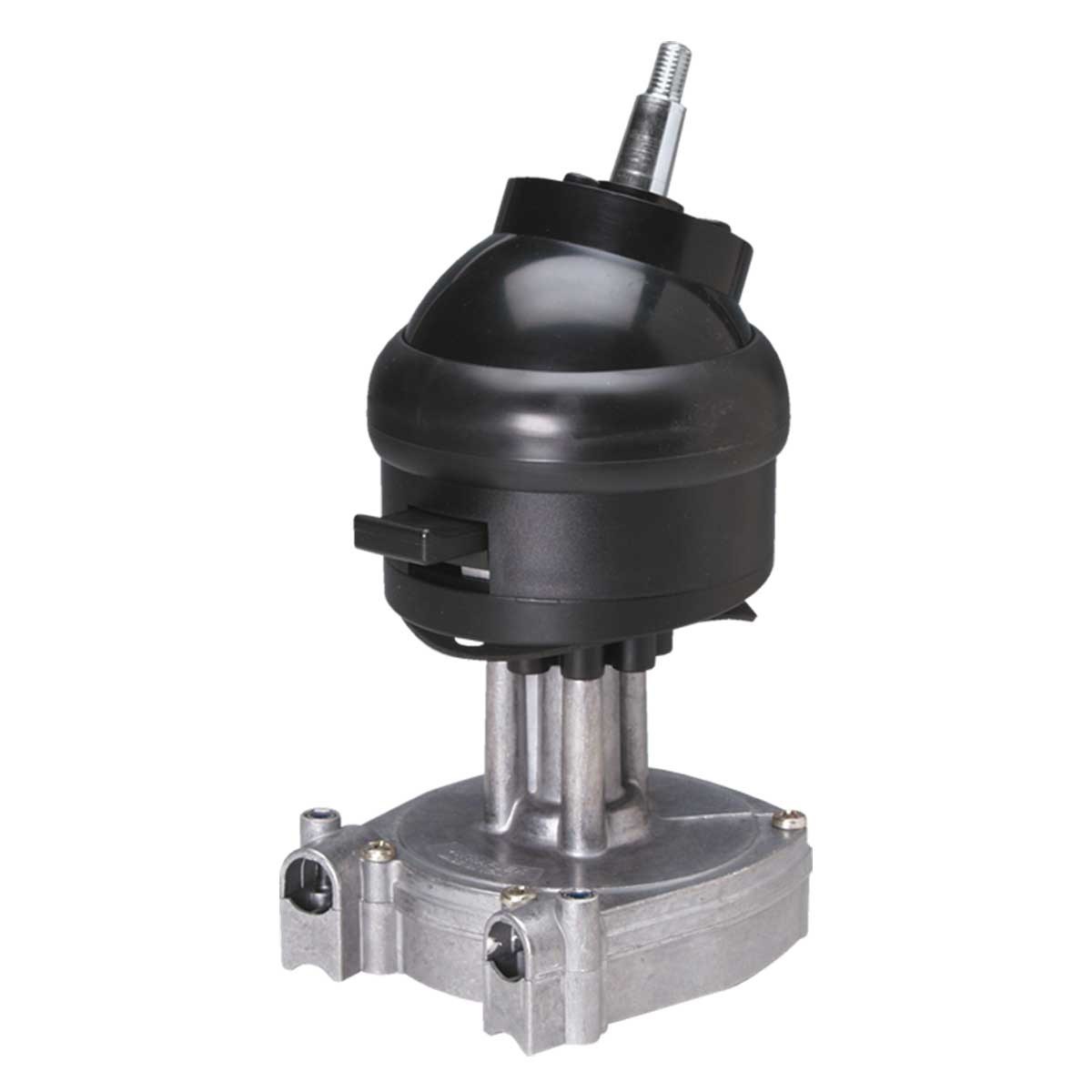

T81FC steering box

Ref. OSC-45.081.00

The Ultraflex T81 FC rotary steering gear in single version is designed for boats up to 9-10 m sailing at speeds under 50 mph. It operates solely with an M66 cable for smooth, compact helm control at the cockpit.

It is made from corrosion-resistant materials and features a quick-connect for easy installation.

Supplied without handwheel and cable.

Read more Features
from
€132.42 Tax included
Public price
€148.25
-10%
Price tax excl. / DOM TOM €132.42
Quantity
Choose a version
In stock in 8 to 10 days
132 loyalty points.
Article
Model Version M66 cable only 90° hub with mechanism for tilting up to 48°
In stock in 8 to 10 days
T 81 FC Simple for hulls up to 9/10 meters 45.185.xx * 45.186.xx OSC-45.038.00
€132.42
In stock in 8 to 10 days
T 83 NRFC Simple irreversible for hulls up to 9/10 meters 45.185.xx * 45.186.xx OSC-45.038.00
€185.40
OSC-45.081.00

Data sheet

Number of revolutions
3,8
Enclosure type
Management
Description

Ultraflex - T81FC steering box

The T81 FC rotary steering gear is a simple solution for hulls up to 9-10 meters. Its compact size makes it easy to integrate with your steering wheel, while maintaining a smooth, pleasant steering feel.

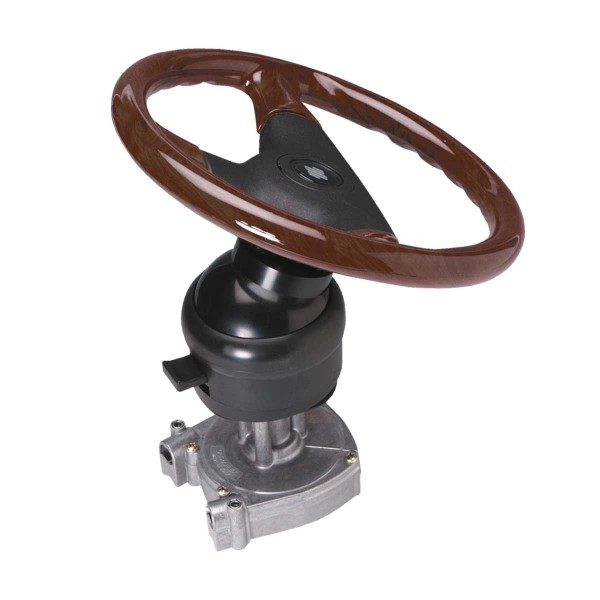

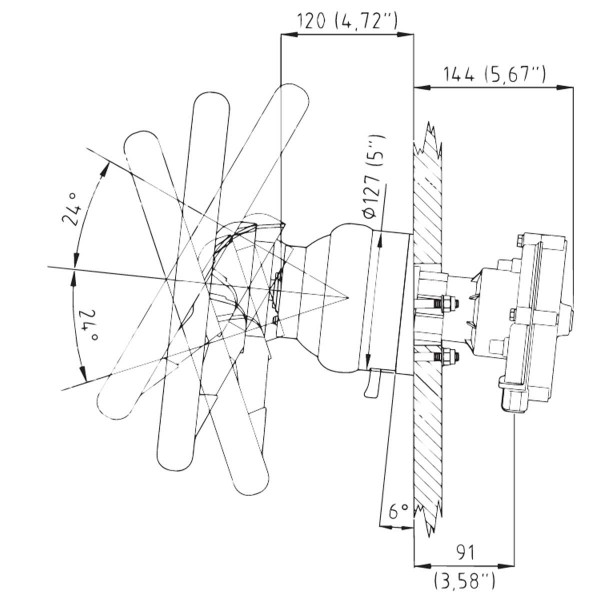

It is designed for use with M66 cable only. For greater steering comfort, it can be combined with the x52 kit with its 90° hub with tilt mechanism up to 48° (optional).

MAIN POINTS :

  • Standard 3/4" tapered shaft
  • M66 cable operation
  • Number of handwheel turns: 3.8
  • Minimum bending radius: 200 mm
  • Max. steering wheel diameter: 406 mm
  • Steering cable travel: 228 mm

BOX CONTENTS :

  • 1 - T81 FC rotary steering box
  • 1 - PDF documentation
