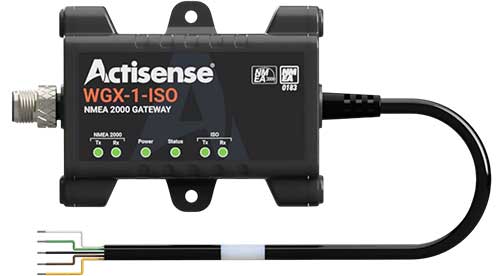

Interface ISO NMEA/Wi-Fi WGX-1

Navigation Data via Wi---Fi

The WGX-1 ISO transmits NMEA 0183 and NMEA 2000 data via Wi---Fi. You can view this data on a tablet, smartphone, or computer using a compatible navigation app.

• Wi---Fi transmission to a smartphone, tablet, or PC
• Support for TCP and UDP streams
• Internal Wi---Fi antenna
• Unique SSID and password for each device

This ensures that key navigation data remains accessible on your connected devices, without the need to add multiple interfaces on board.

NMEA 2000 and NMEA 0183 conversion

The WGX-1 ISO converts NMEA 0183 data to NMEA 2000, and vice versa. It can connect older equipment—such as a GPS, wind vane, depth sounder, or AIS —to a modern network.

• Bidirectional conversion between NMEA 0183 and NMEA 2000
• Compatibility with NMEA 0183, RS232, and RS422
• Isolated opto--input and ISO--Drive output
• ISO baud rate from 4,800 to 230,400 baud

This allows you to use equipment from different generations together without having to replace the entire system.

Network diagnostics and data monitoring

The WGX-1 ISO includes Actisense- i to monitor the NMEA 2000 network. The tool measures bus voltage, displays connected devices, and provides an overview of the electronic system’s activity.

• NMEA 2000 Network Diagnostics
• Automatic bus voltage measurement
• Diagnostic LEDs for NMEA 2000 activity and Wi---Fi

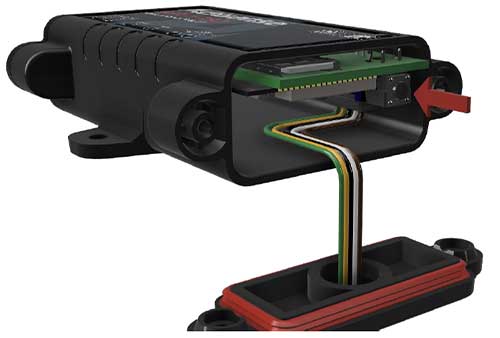

• Data logging to a micro SD card (not included)

The recorded data can then be used to review a voyage, prepare a logbook, or investigate the cause of a malfunction.

KEY FEATURES:

• IP67-rated housing
• Built-in Wi---Fi
• Dimensions: 126 x 73 x 24 mm
• Bidirectional NMEA conversion
• Data broadcasting via TCP and UDP
• Network diagnostics with Actisense- included
• Compatible with NMEA 0183, RS232, and RS422

BOX CONTENTS:

• 1 - WGX Interface-1 ISO
• 1 - 0.8 m integrated ISO cable
• 1 - PDF documentation
