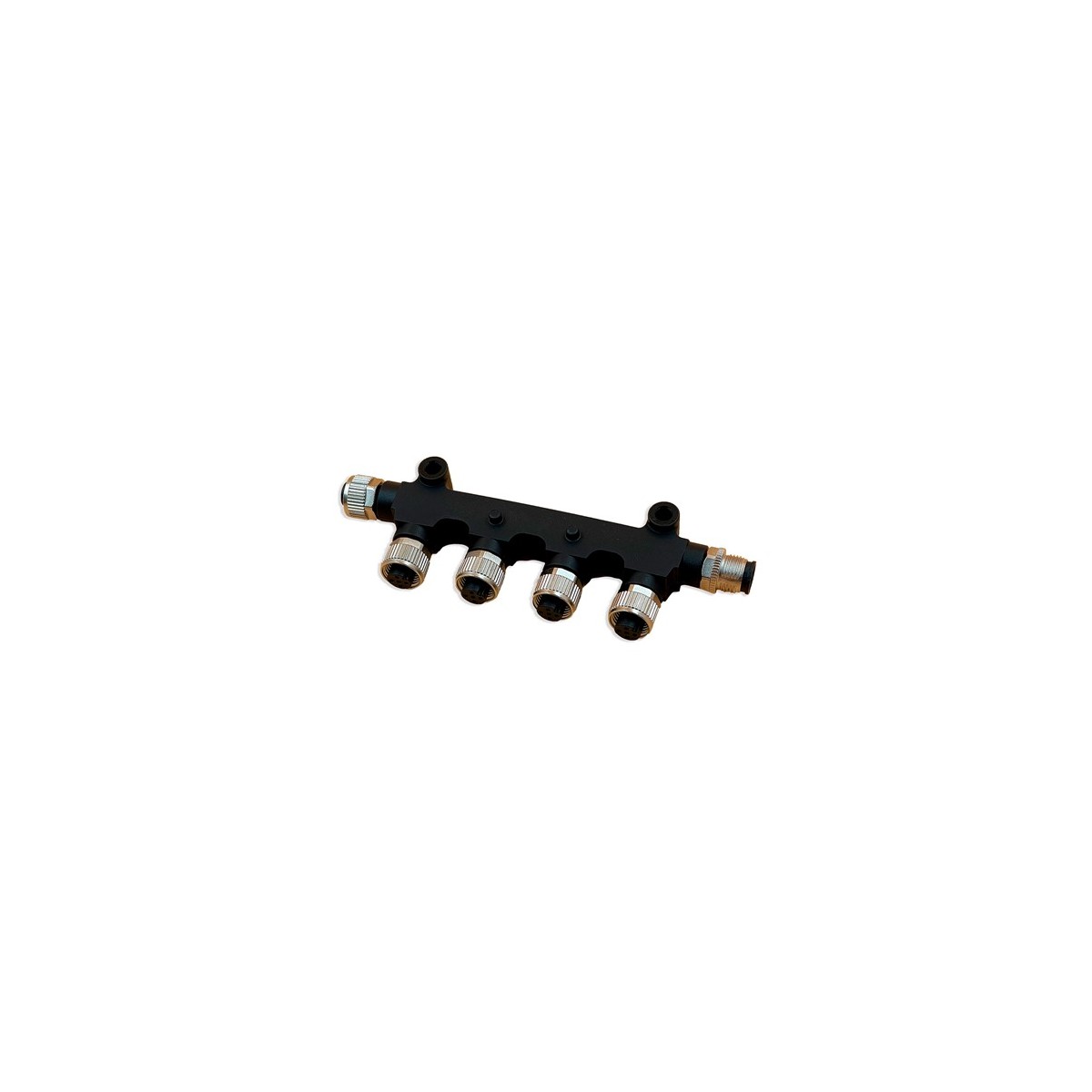

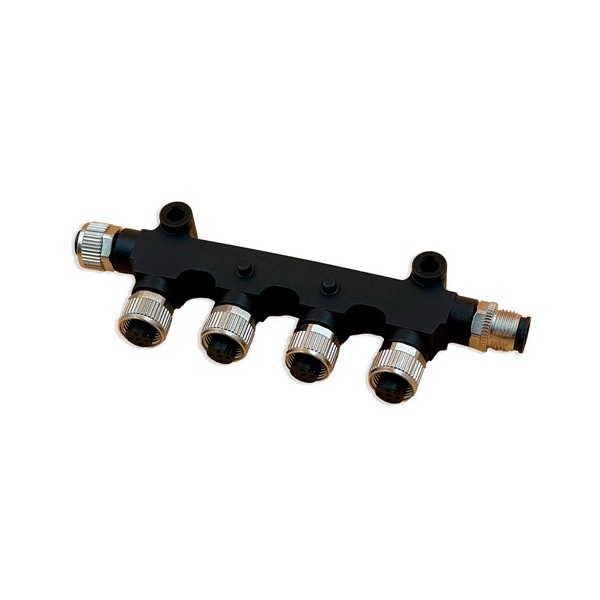

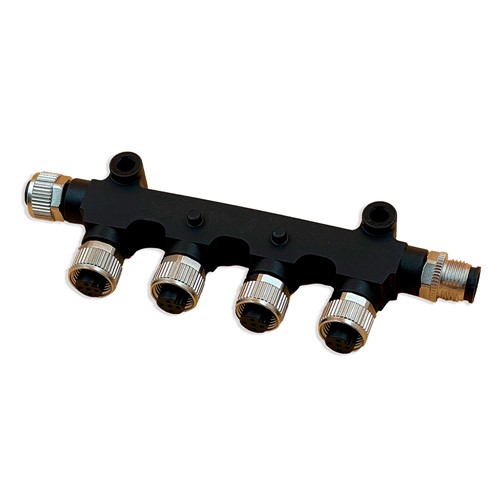

NMEA 2000 Column (4 devices)

FOUR NMEA 2000 CONNECTIONS IN A COMPACT DESIGN

The ZDIGN26W features four T-connectors for connecting equipment to the NMEA 2000 backbone. This design minimizes the number of separate connections and allows you to centralize multiple connections in a small area of the boat.

• Four ports for NMEA 2000 devices
• Micro---C connectors commonly used in marine electronics
• Clear layout for easy connection verification
• Can be connected to other NMEA 2000 backbone components

The four ports can accommodate branch cables or the network power cable. This flexibility in connection helps adapt the wiring to the actual layout of the instruments and sensors installed on board.

A BACKBONE THAT’S EASY TO INSTALL AND UPGRADE

The hub must be integrated into a powered and properly terminated NMEA 2000 network. It should preferably be mounted vertically, with the outputs facing downward, to facilitate cable routing and minimize moisture around the connectors.

• Recommended installation in a dry, accessible location
• Connectors can be tightened by hand without excessive force
• Can be extended by connecting directly to another column
• Compatible with NMEA 2000 backbone and branch cables

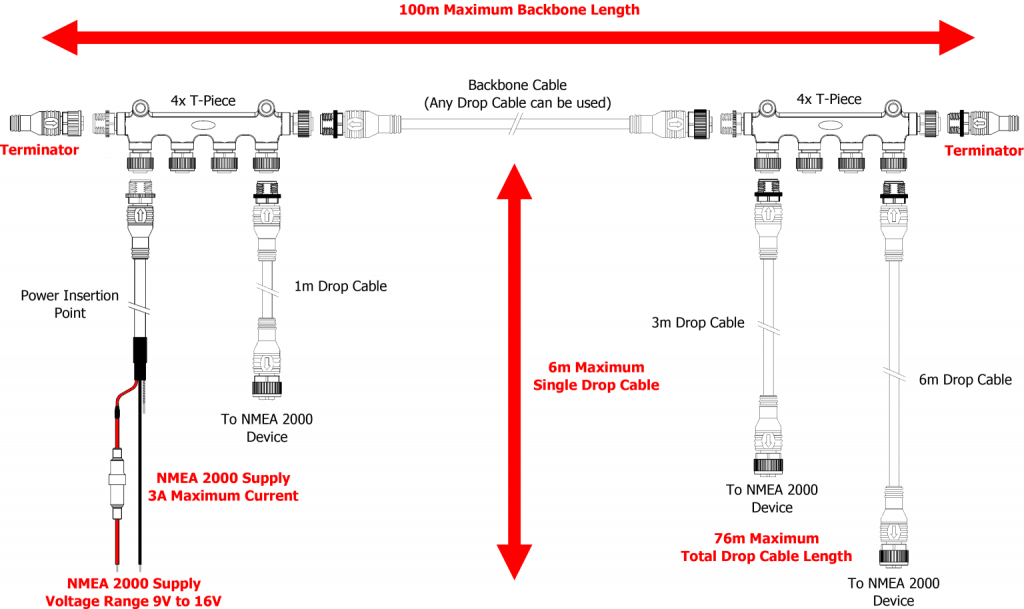

This scalable architecture allows new equipment to be added as needed. A second column can be connected directly or using a suitable cable, while maintaining the terminations at both ends of the backbone.

KEY FEATURES:

• Compact design
• Four T-connectors
• Neat and easily accessible installation
• Easy extension of the boat’s NMEA 2000 backbone

WHAT'S IN THE BOX:

• 1 - NMEA 2000 T-connector column with 4 connectors
