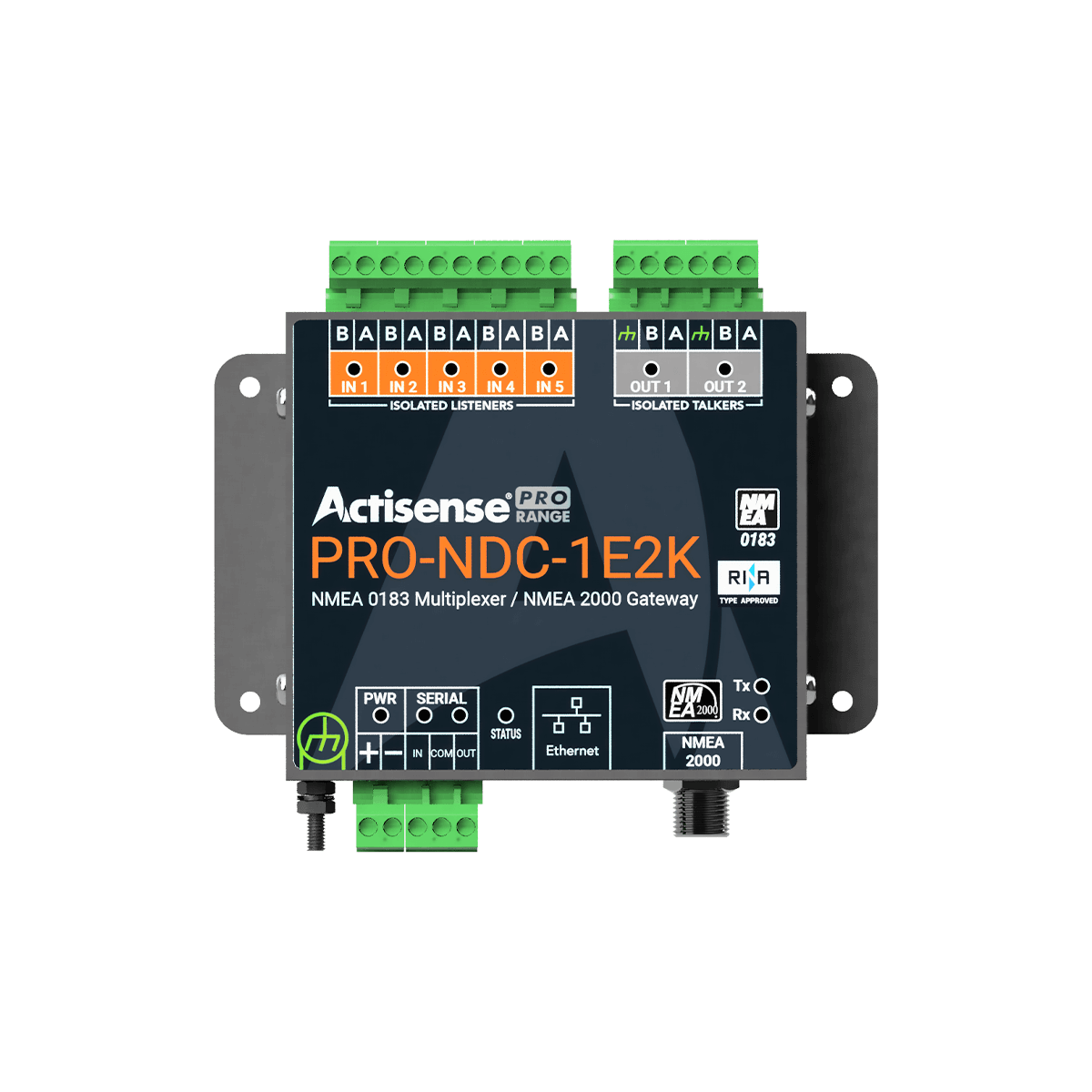

NMEA0183 multiplexer - PRO-NDC-1E2K

Actisense - NMEA0183 multiplexer

Multiplexers are generally used to combine data from several instruments into a smaller number of outputs.
As it is not possible to directly connect two transmitters ("talkers") to a single receiver ("listener"), a multiplexer allows data to be grouped together and transmitted via a single transmitter connection.

An example of application would be on a commercial vessel equipped with several NMEA 0183 instruments such as GPS, wind vane-anemometer, AIS and depth sounder.
To consolidate all this data and send it to an NMEA 0183 display, the various transmitter inputs can be combined into a single output using the PRO- NDC -1E2K.
If these data are to be integrated into a NMEA 2000 network, the 1E2K can convert and transmit them over a connected N2K network, thanks to the product's built-in conversion matrix and NMEA 2000 connectivity.

With the PRO- NDC -1E2K, data can be filtered, transmitted or blocked, and monitored, offering greater flexibility and control over all instrument data.

The device is also capable of broadcasting NMEA data in various formats via Ethernet, enabling it to connect to other existing Ethernet systems and share ship data with connected third-party applications or devices.

Managing and routing your NMEA data is simple and straightforward with the PRO-NDC-1E2K :

• Automatic switching between inputs, allowing primary, secondary and tertiary priorities to be defined.
• Configurable data rates, allowing 38400 and 4800 baud devices to operate via the same multiplexer.
• Phrase filtering to block unwanted phrases on certain outputs, thus limiting bandwidth consumption.
• Simple configuration via web interface, with no manual entry of text strings.
• RINA approval: suitable for recreational, commercial and certified/classified installations.
• Multiple diagnostic LEDs for quick status checks.
• Certified NMEA 2000 connectivity, with data conversion and output on NMEA 2000 network.
• Bi-directional conversion between NMEA 0183 and NMEA 2000, for seamless integration between older and newer equipment.
• Streaming NMEA 0183 and NMEA 2000 over Ethernet for easy connection to existing Ethernet systems.
• 5 isolated NMEA 0183 OPTO-inputs and 2 isolated ISO-Drive NMEA 0183 outputs to protect connected instruments.

Features :

• Type-certified (RINA)
• NMEA 0183 and NMEA 2000 Ethernet streaming
• NMEA 2000 output via M12 connector
• 5 configurable opto-isolated NMEA 0183 inputs
• 2 configurable, isolated NMEA 0183 ISO-Drive outputs
• 1 configurable and isolated bidirectional serial port
• Automatic rate matching on inputs
• Advanced data routing/filtering
• Free software updates
• Diagnostic LEDs on all inputs and outputs
• Two-color status LED
• Panel mounting
• Stainless steel housing for durability

Benefits :

• Quick and easy installation
• Configuration via standard web browser, without system compatibility issues
• Advanced functions to solve NMEA 0183 routing problems
• Full insulation with ISO-Drive technology for added security
• Simple software updates guarantee product longevity
• Type approval (RINA)
