Interface NAVLink Blue NMEA2000 Bluetooth
Ref.
ZDIGNLINKBT
The NAVLink Blue interface Digital Yacht connects Bluetooth devices such as smartphones, tablets and computers to your boat's NMEA 2000 network.
Ideal for easy monitoring and analysis of data from your navigation instruments, it installs quickly on board and ensures a reliable, secure connection.
The NAVLink Blue interface is sold separately.
Read more Features
€241.58
Public price
€250.00
Price tax excl. / DOM TOM
€241.58
ZDIGNLINKBT
Data sheet
- Product type
- Interface
- Features
- NMEA 2000, Bluetooth
DIGITAL YACHT - NAVLINK BLUE NMEA2000 - Bluetooth

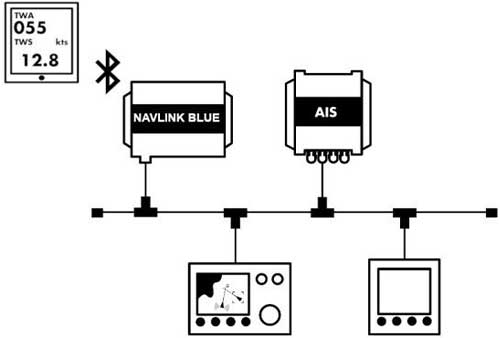

NAVLink Blue acts as an intelligent gateway between your NMEA 2000 network and your Bluetooth devices. In addition to exchanging data with the NMEAremote iOS app, it allows you to view navigation information from the NMEA 2000 network in real time. Retrieve data from sensors such as the RuuviTag (temperature, humidity, pressure) and automatically inject them onto the NMEA 2000 bus (sensors available as an option), and develop new Bluetooth integrations thanks to the SDK supplied, enabling developers to connect and make custom sensors or systems dialogue with the NMEA 2000 network.
Powered directly by the NMEA 2000 network, this server features an integrated 1-meter cable for fast, stress-free installation. Configuration is simple via a web browser, thanks to the integrated interface. NAVLink Blue supports multiple simultaneous connections and interfaces seamlessly with the NMEA Remote app, turning your phone or iPad into a complete and intuitive instrument display.
 |

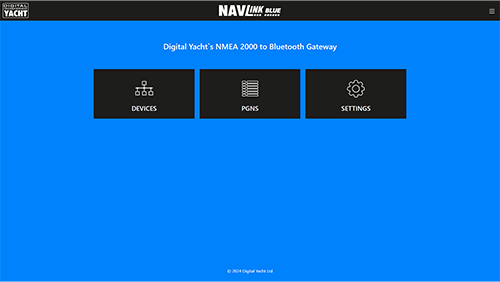

HOW NAVLINK BLUE WORKSNAVLink Blue is easily configured via its dedicated web interface. Simply enter the unit's IP address in your browser to filter PGN data categories, perform software updates or diagnose the NMEA 2000 network. The gateway can also be used in WiFi mode if required, connecting up to three devices simultaneously. To switch from Bluetooth to Wi-Fi mode, simply follow these steps:
After switching to WiFi mode, the NAVLink Blue becomes accessible for configuration via its dedicated web interface. |
INTERFACE FEATURESThe NAVLink Blue efficiently connects your NMEA 2000 network to Bluetooth-enabled mobile devices such as smartphones and tablets. It enables navigation data to be transmitted and Bluetooth sensors to be integrated into the on-board network. Thanks to its SDK, it also paves the way for the development of new sensors or connected systems.
|
 |
KEY FEATURES
|
BOX CONTENTS :
|
Customer Reviews (0)
Questions / Answers (4)
Le pack est-il compatible avec tous les réseaux NMEA 2000 ?
Augustin, the 24/11/2025
Oui. Le NAVLink Blue est conforme à la norme NMEA 2000 et fonctionne avec tous les équipements certifiés NNEA2000 : capteurs de vent, sondes de vitesse ou de profondeur, GPS, capteurs environnementaux ... Il est également compatible avec le standard Raymarine SeaTalkNG via un adaptateur de connecteur NMEA 2000 vers SeaTalkNG.
Comptoir Nautique Team
Quelle est la portée Bluetooth du NAVLink Blue ?
Dany, the 24/11/2025
Bonjour Dany, la portée varie selon l’environnement. En général, elle est de 10 à 15 mètres. Attention toutefois : les coques en acier ou en fibre de carbone peuvent fortement atténuer le signal et nécessiter une implantation plus soignée.
Comptoir Nautique Team
Est-ce que le NAVLink Blue remplace un routeur Wi-Fi ?
Malik, the 24/11/2025
Bonjour Malik, non. Il est conçu comme une passerelle NMEA 2000 - Bluetooth (et Wi-Fi pour la configuration), mais n’a pas vocation à remplacer un NavLink2.
Comptoir Nautique Team
Peut-on utiliser l'interface NAVLink Bluetooth dès sa sortie de la boîte ?
Zack, the 24/11/2025
Bonjour Zack, oui, il est immédiatement opérationnel en mode Bluetooth et peut envoyer les données NMEA 2000 vers l’application iOS NMEAremote sans configuration avancée.
Comptoir Nautique Team
