Passerelle Victron BT vers NMEA2000

Name: Passerelle Victron BT vers NMEA2000
Brand: Digital Yacht

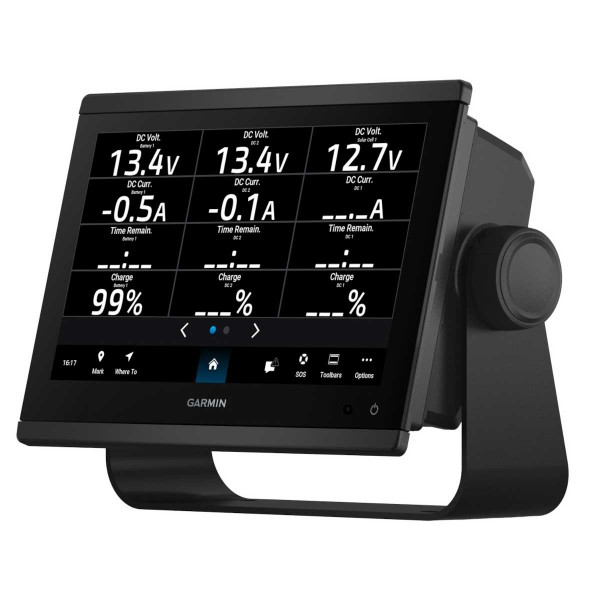

The veLink gateway lets you connect up to 8 Victron devices via Bluetooth to a compatible display via the boat's NMEA2000 network. You'll be able to monitor battery status, current consumption, battery voltage and even retrieve data from an MPPT solar controller to visualize solar gain and panel exposure in real time.

What's more, it even centralizes alarms from Victron devices so you can be immediately alerted on your screen.

€216.58

Public price

€230.00

Price tax excl. / DOM TOM €216.58

Quantity

Available on 09/02/26

216 loyalty points.

Reference ZDIGVELINK

Description
Attachments
Customer Reviews
Questions / Answers
Products also ordered

Description

Digital Yacht - VeLink Gateway - Victron data via NMEA2000

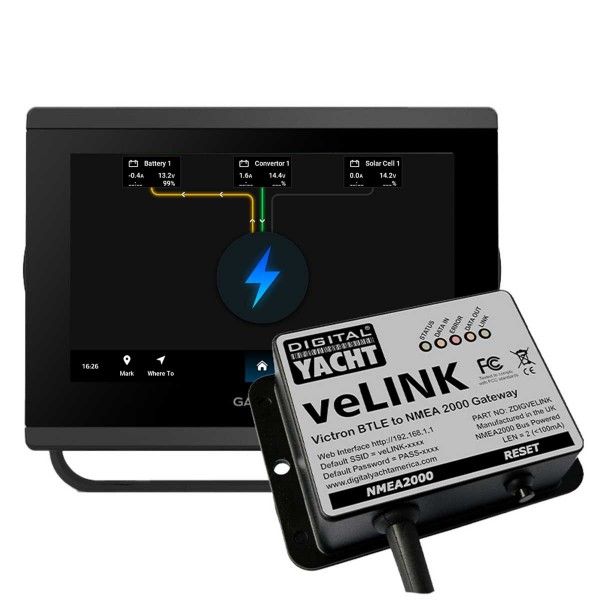

The veLink gateway is dedicated to Victron on-board energy systems. It retrieves data via the wireless link, then publishes it on your NMEA2000 network for display on a compatible screen.

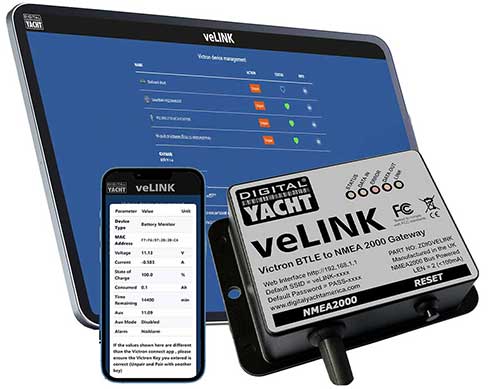

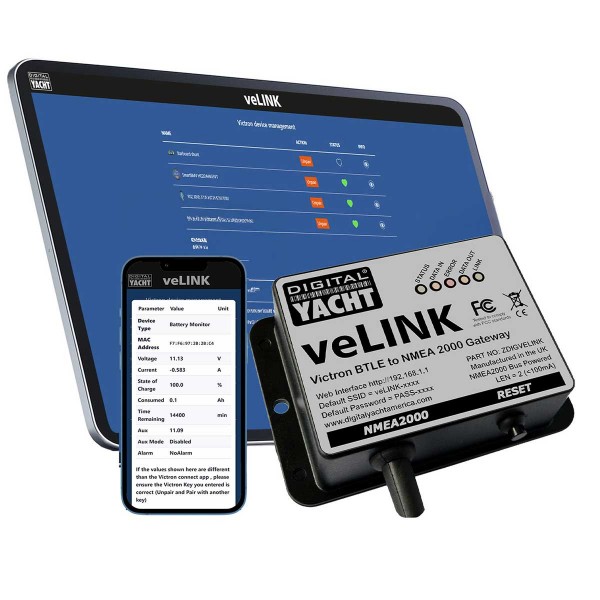

It's easy to configure from a phone or computer, thanks to integrated Wi-Fi and a web interface. A practical solution for monitoring battery status, charge and consumption, without the need for multiple screens.


	A Victron gateway to NMEA2000 veLink is designed to connect to data-producing Victron equipment, then transmit this information on the boat's NMEA2000 bus. It can discover and pair up to 8 devices, centralizing useful information in one place. Up to 8 paired Victron devices Data sent over the NMEA2000 network Creation of one virtual NMEA2000 device per connected product SmartShunt, BMV-712 Smart, SmartSolar MPPT, BlueSmart AC, Orion-Tr Smart compatible Ideal for making energy status readable on a single screen, without juggling between applications and displays.

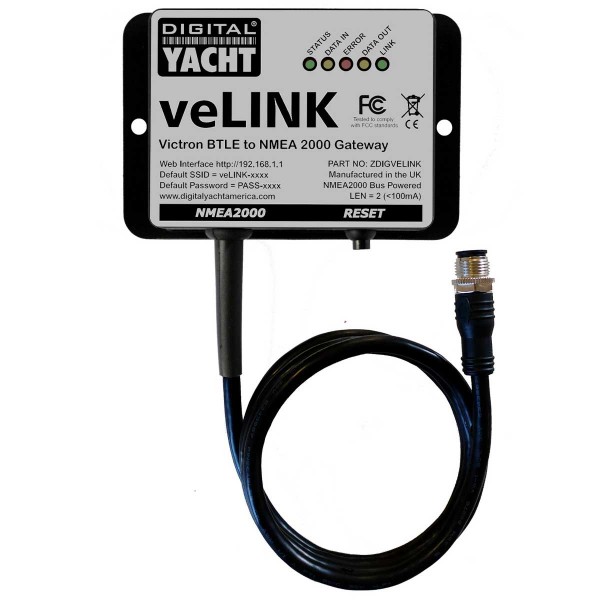

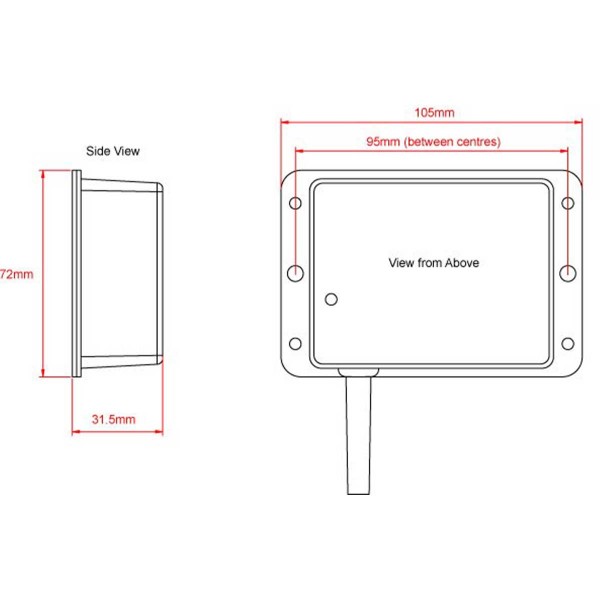

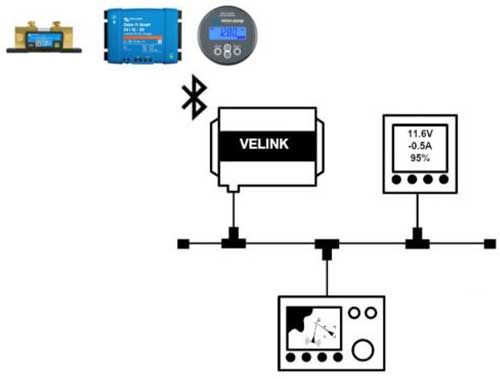

Simple installation on the NMEA2000 bus The unit connects directly to a T-connector on the NMEA2000 network via its integrated cable, and is powered via the bus. For reliable installation, the unit should be placed below deck, in a dry area, and 0.5 m from the magnetic compass. Integrated NMEA2000 cable with male connector Power supply via NMEA2000 network Two mounting holes, for installation in any orientation Non-standard SeaTalkNG or Simnet bus adapters possible A good location also helps radio range, especially if your installation is close to metal enclosures or power lines.
