USG-2 NMEA0183 to USB converter

Name: USG-2 NMEA0183 to USB converter
Brand: Actisense

The USG-2 Actisense is a bi-directional USB to NMEA 0183 interface designed to easily connect on-board electronic instruments to a PC, whether on a sailboat or a powerboat. It is ideal for integrating GPS, AIS and other NMEA 0183 equipment in demanding marine environments.

Thanks to its galvanic isolation, it secures the link between your navigation network and your computer, avoiding ground loops and the risk of electrical damage.

€141.58 Tax included

Public price

€143.00

Price tax excl. / DOM TOM €141.58

Quantity

IN SUPPLIER STOCK

Delivery times and costs

141 loyalty points.

Reference AS0170

Description
Attachments
Customer Reviews
Questions / Answers
Products also ordered

Description

Actisense - USG-2 NMEA0183 to USB converter

The USG-2 is a reliable solution for connecting NMEA 0183 equipment to a computer via USB in a nautical environment. It enables simple connection of data from on-board marine electronics, such as GPS or other navigation instruments, to a PC used for mapping, navigation or data supervision.

Compatible with many navigation systems and software, it creates a communication port on the PC for easy retrieval of NMEA 0183 data from onboard instruments. It's a particularly relevant solution for integrating a GPS, plotter or other navigation devices with an on-board PC.

Technical specifications :

IP67 protection
USB port compatible with USB 1.1, 2.0 and higher 3.0.
Communication rates up to 230400 baud.
Compatible with Windows XP to Windows 11 and Mac OS X.
NMEA0183, RS422, RS232 and Listener RS485 compatible.
Screwless plug-in connector with locking system.
USB bus-powered, maximum consumption 50 mA.
LED for status indication (USB power supply/receive/transmit)

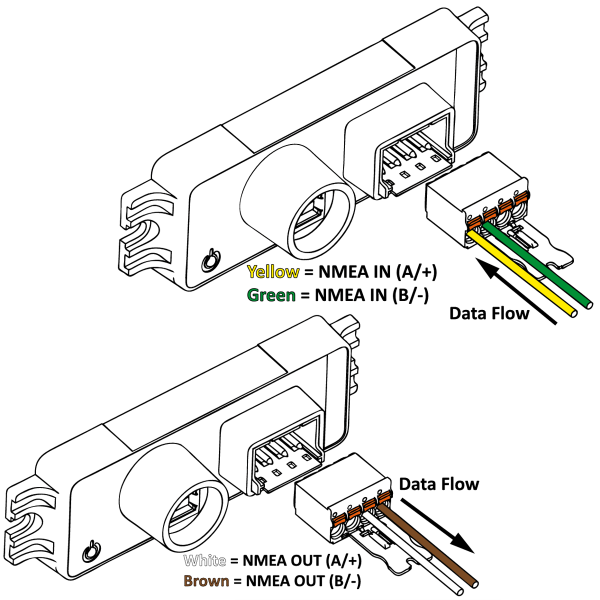

USB to NMEA0183 interface (1 isolated Listener input and 1 isolated Talker output)
