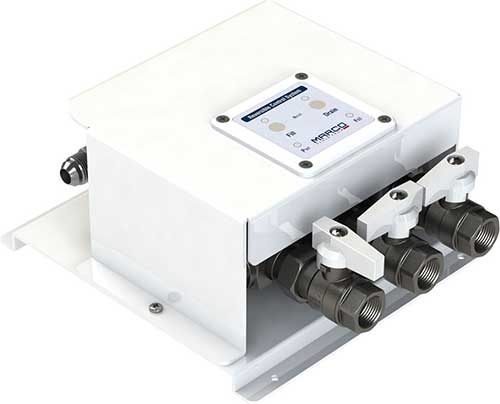

OCS3/E Electric Oil Drain Pump

CENTRALIZED ONBOARD OIL DRAIN

The MARCO OCS3/E simplifies oil drain and refill operations on a boat. Designed for a fixed installation, it allows multiple circuits to be grouped around a single system, thereby simplifying onboard maintenance procedures.

• For engines
• Generators
• Transmissions

Its three BSP valves allow you to select the relevant circuits. This centralized system also helps keep engine rooms cleaner by minimizing oil spills and leaks during maintenance operations.

ELECTRONIC CONTROL

The MARCO OCS3/E’s electronic control adjusts the pump motor speed based on the oil’s viscosity and temperature. It also increases the pump speed during the priming phase to facilitate the start of the transfer.

• Automatic speed control
• Adaptation to oil viscosity
• Adjustment based on oil temperature
• Increased speed during priming

The system also includes several safety features. It shuts down if the tank is empty, in the event of a short--r circuit, or after 30 minutes of operation, to protect the system during draining and refilling operations.

KEY FEATURES:

• 12/24 V
• Weight: 4.4 kg
• Pressure: 2 bar
• Max. flow rate: 10 l/min
• Suction lift up to 1.5 m
• 3 3/8" BSP valves to centralize the circuits
• Electronic regulation based on oil viscosity and temperature

PACKAGE CONTENTS:

• 1 - OCS3/E electric oil drain pump
• 1 - PDF documentation
