Nuvola freshwater intake

Osculati - Nuvola freshwater intake

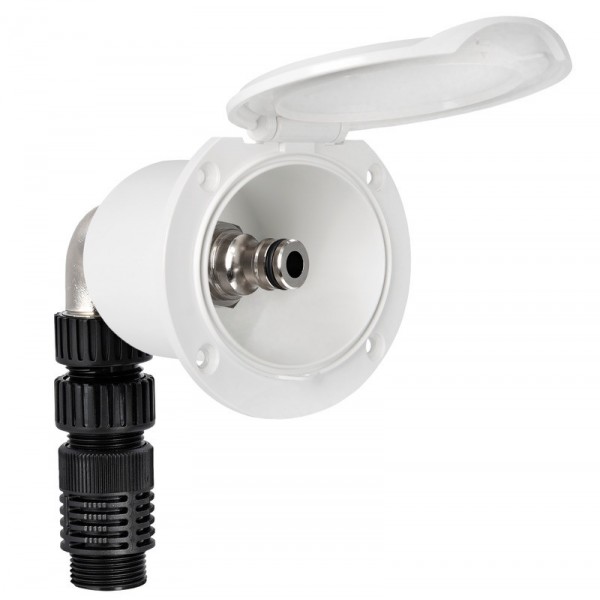

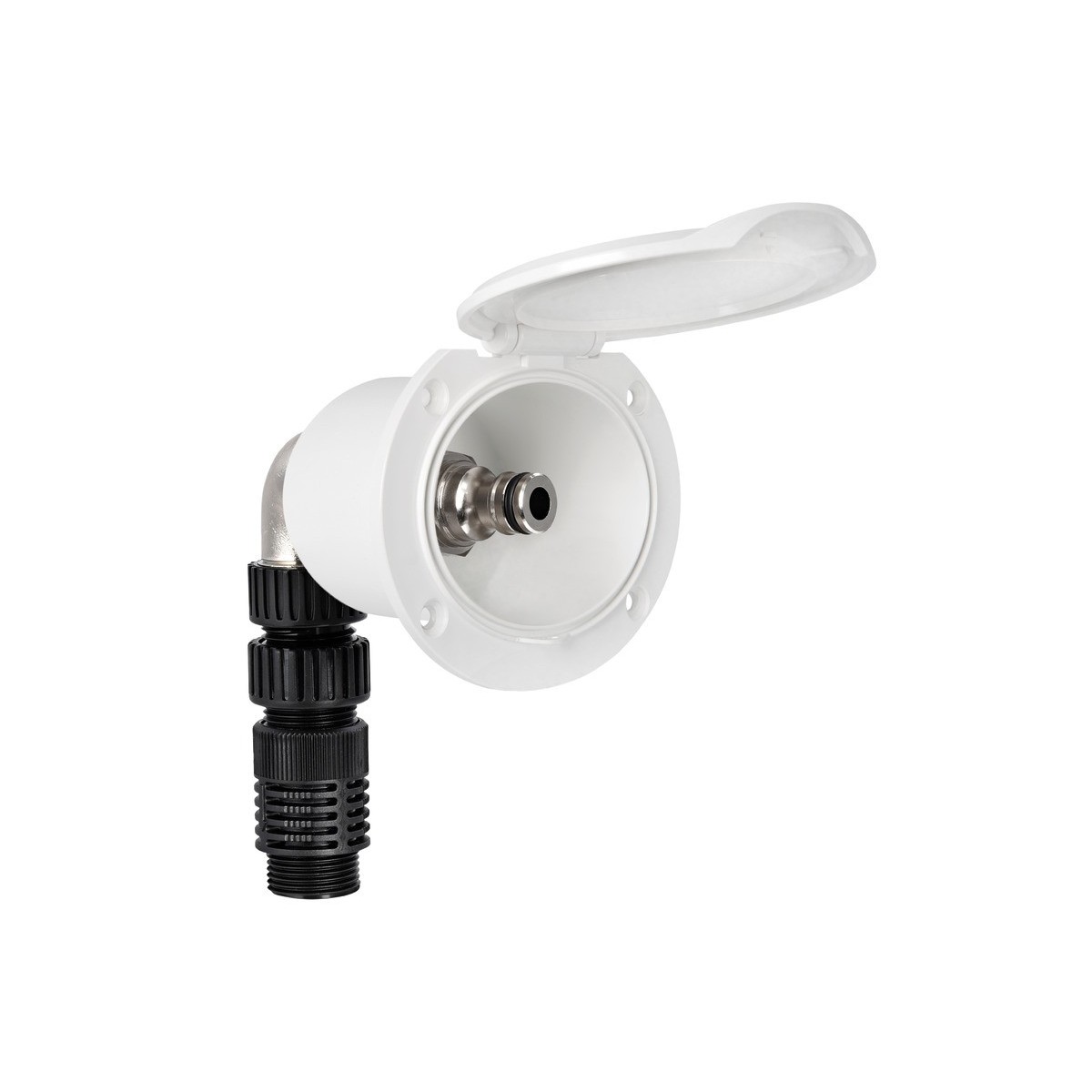

OSCULATI Nuvola water inlet.

Water inlet for constant connection to the harbor or camping water system, without having to fill the tank, on boats, caravans and camping-cars.

A very practical accessory, this OSCULATI Nuvola water inlet box means you don't have to tap into your own water tanks. Ideal for boats, camping-cars or vans that stay close to a water source. This equipment is fitted with a pressure reducer to obtain a water outlet pressure of 3 bars, compatible with on-board consumers.

The OSCULATI Nuvola water inlet must not be used for filling tanks, but exclusively for direct use of the equipment. Ideally, it should be connected directly after the automatic pump, as the powerful anti-return valve of this type of pump will block tank filling.

OSCULATI highlights Nuvola water inlet :

• Saves tank water
• Constant water pressure, just like at home
• Hose-type quick connector included
• Modern, elegant housing design

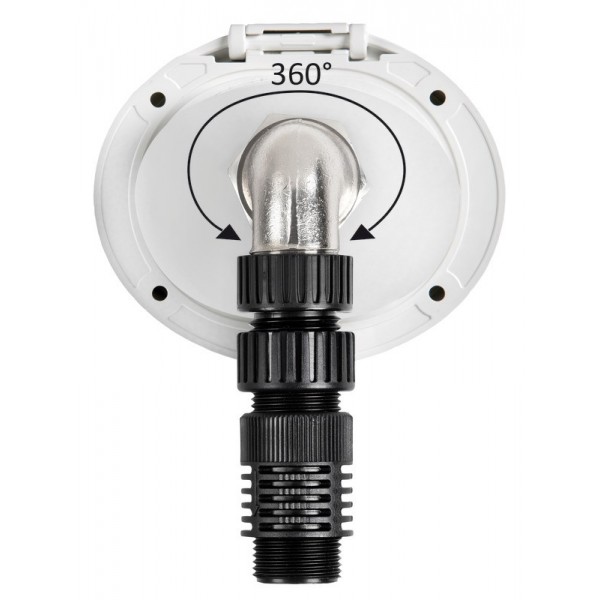

• Threaded outlet can be rotated 360

Specifications of the OSCULATI water inlet for boats & camping-car:

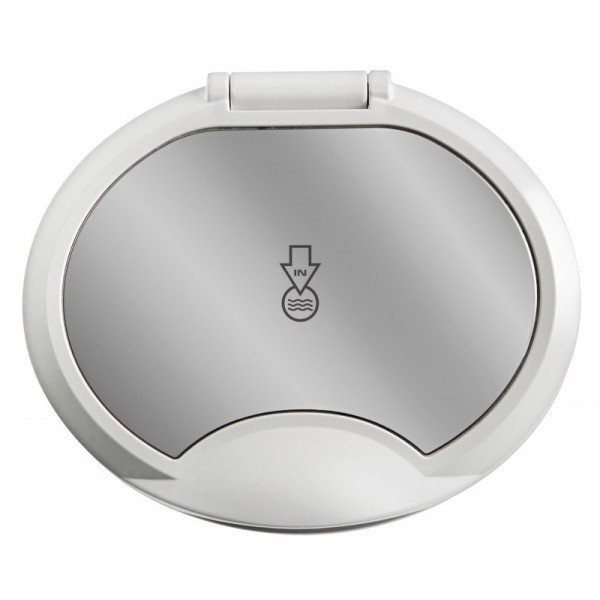

• White ASA housing with splash-proof stainless steel cover
• Pressure reducer: max. inlet 7.5 bar and operating pressure 3 bar

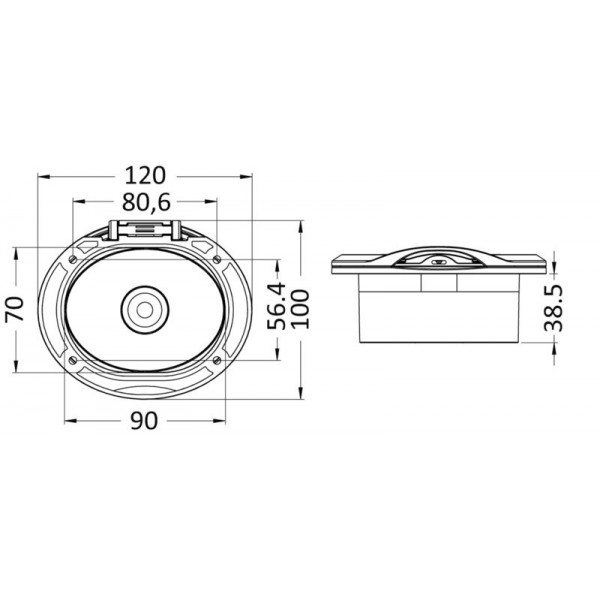

• Mounting diameter: 90 x 70 mm
• Mounting depth: 38.5 mm
• 3/4" male threaded outlet
• Supplied without connectors for ø 16 mm pipe (optionally straight or 90° bent)
• Brass fitting for all pipe sizes
