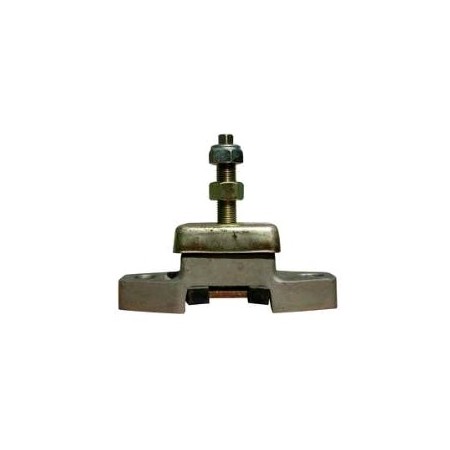

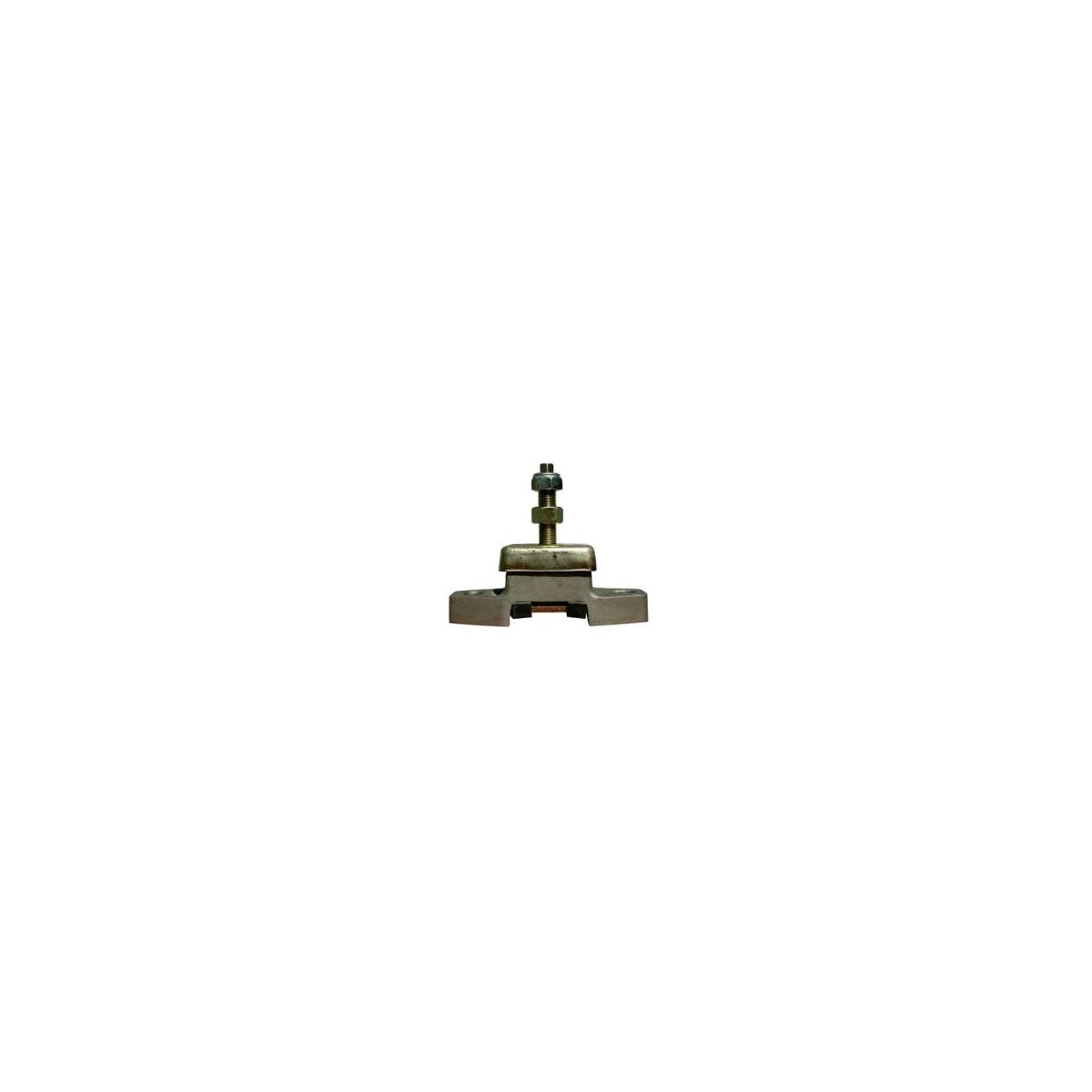

Side-load motor support with protection 54/187kg

Designed for marine applications, they accept propeller thrust.
Their shear strength provides a high level of vibration isolation and acoustic comfort.
Steel elements are zinc-plated and passivated.
They are factory-stressed to limit motor movements.
Alignment facilitated by oblong holes on base plate.
Adjustable height facilitates alignment.

Note: mini-maximum loads are given for each stud individually.
The preload value corresponds to the minimum load.
Height adjustment range: max. 10mm between the underside of the nut and the cup.
Motor support side load with protection with center distance 127mm with 5/8 UNF rod
Minimum / maximum load: 54 / 187Kg
Maximum compression: 5.33mm
Preload: 2.28mm
