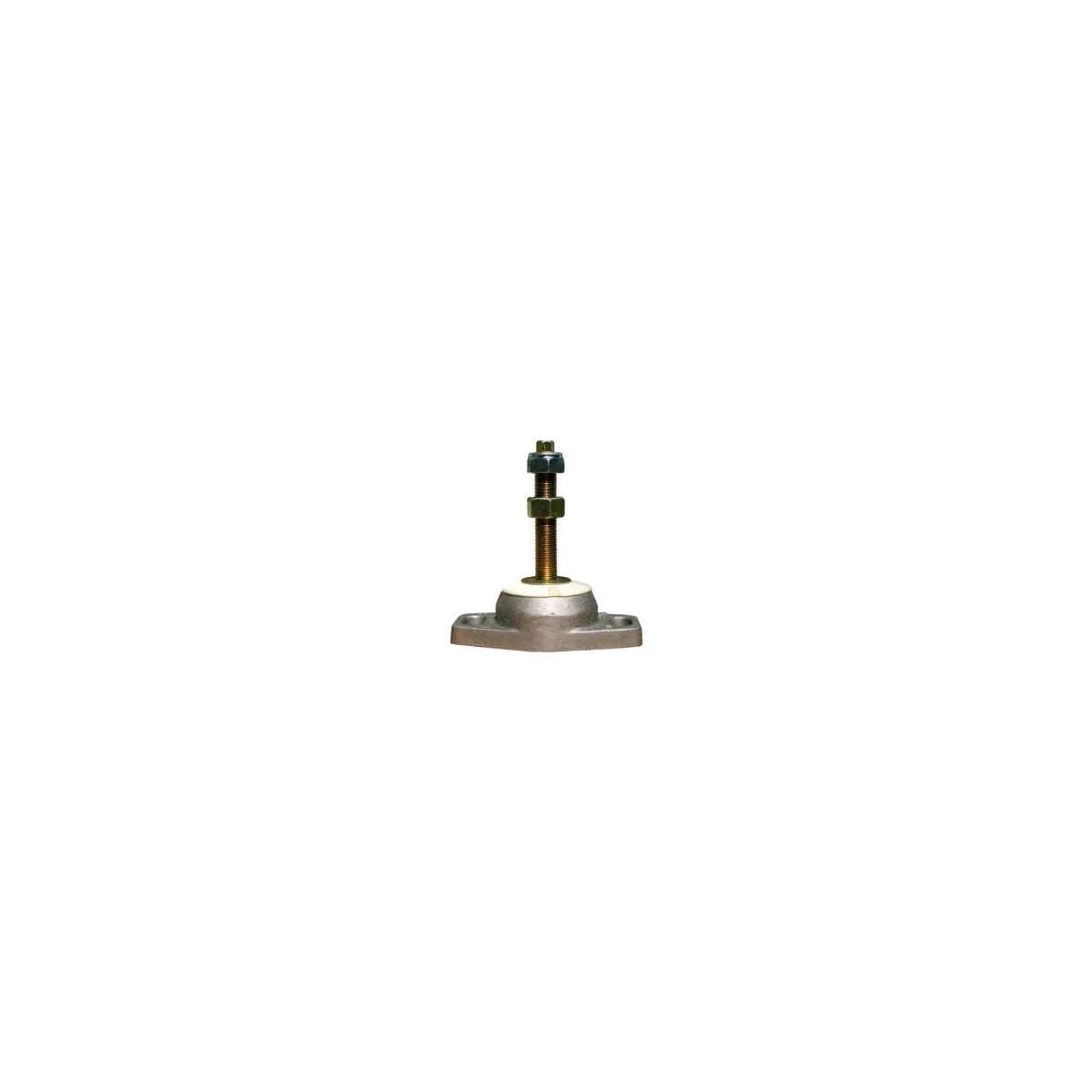

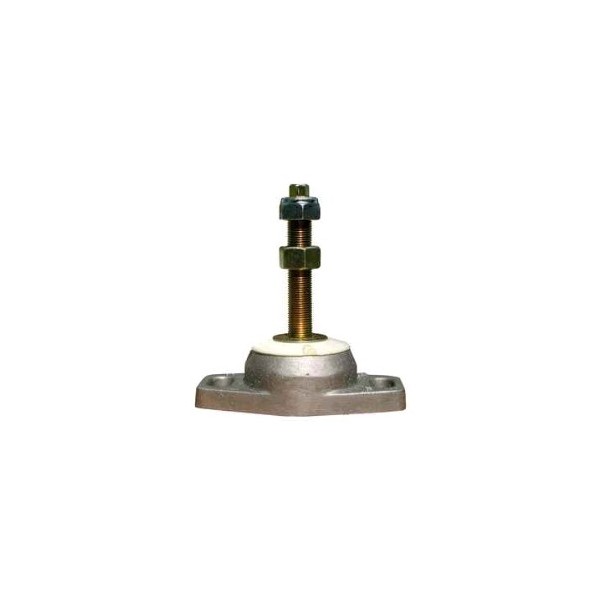

Compact motor mount 136kg max

Designed for marine applications, they accept propeller thrust.
Their shear strength provides a high level of vibration isolation and acoustic comfort.
Steel elements are zinc-plated and passivated.
They are factory-stressed to limit motor movements.
Alignment facilitated by oblong holes on base plate.
Adjustable height facilitates alignment.

Note: min-max loads are given for each stud individually.
The pre-stress value corresponds to the min load.
Height adjustment range: max. 10mm between the underside of the nut and the cup.
Max load: 136Kg
Max compression: 1.65mm
