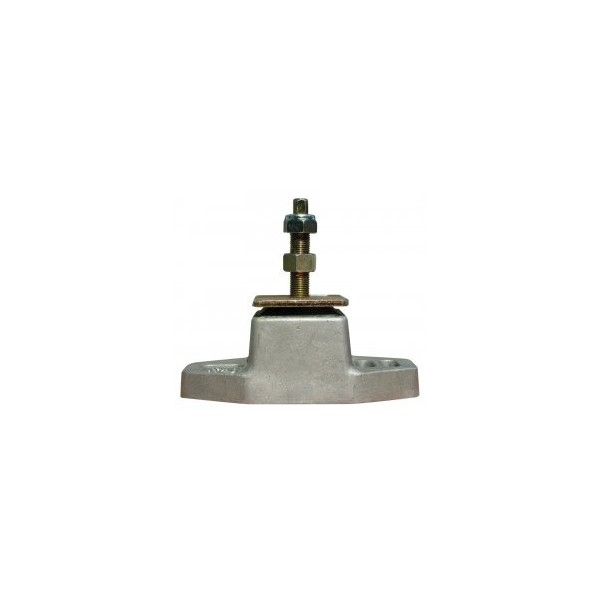

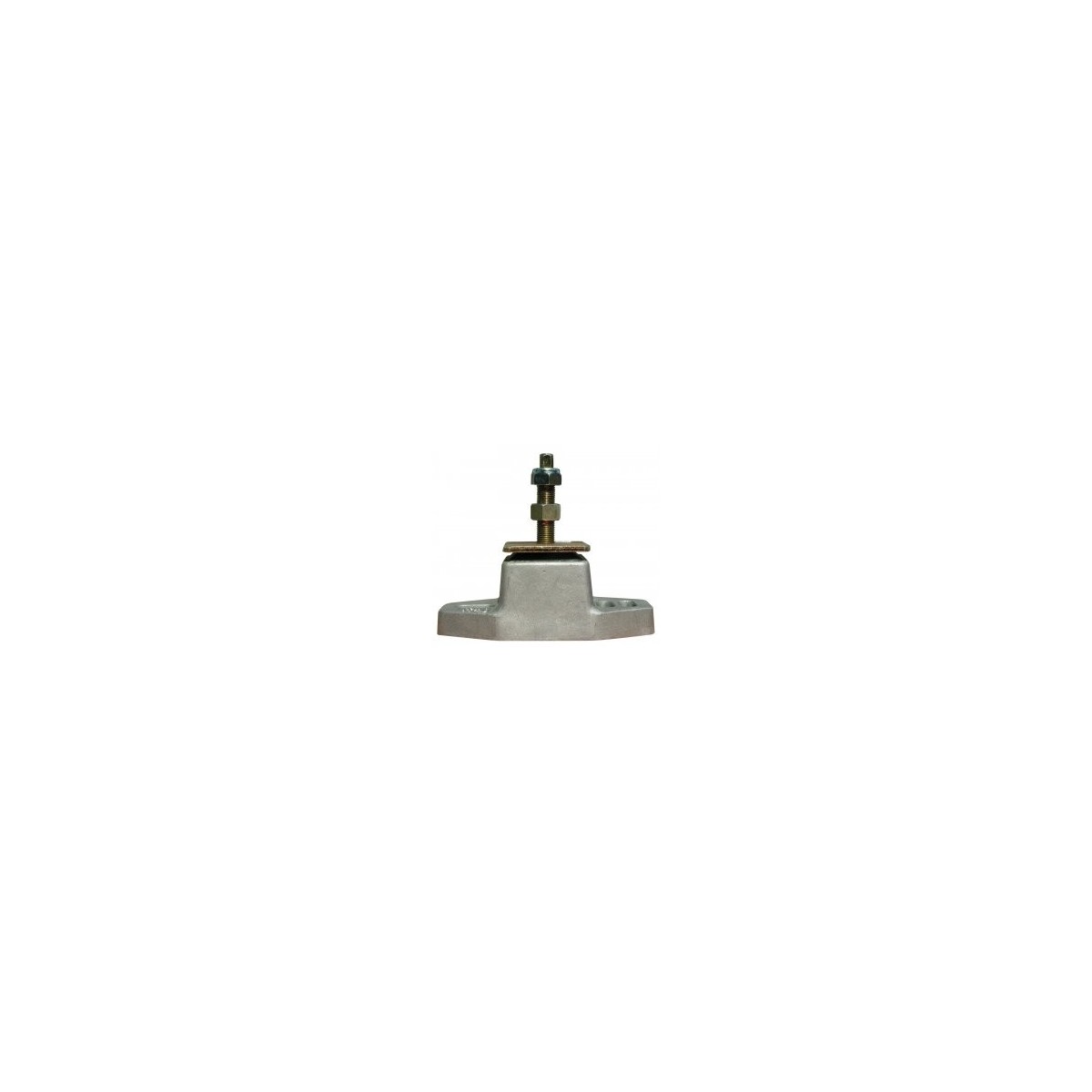

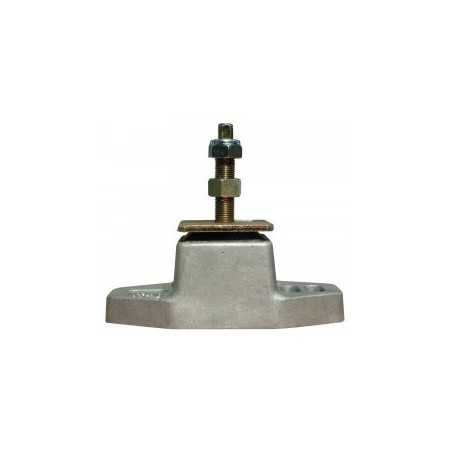

72.6/304kg double-insulated motor mount with 3/4" rod

Designed for marine applications, they accept propeller thrust.
Their shear strength provides a high level of vibration isolation and acoustic comfort.
Steel elements are zinc-plated and passivated.
They are factory-stressed to limit motor movements.
Alignment facilitated by oblong holes on base plate.
Adjustable height facilitates alignment.

Note: mini-maximum loads are given for each stud individually.
The preload value corresponds to the minimum load.
Height adjustment range: max. 10mm between the underside of the nut and the cup.
Double-insulated brackets 2 opposing preloaded elements with 3/4 UNF shank
Minimum / maximum load: 72.6 / 304Kg
Maximum compression: 7.6mm
Preload: 4.8mm
