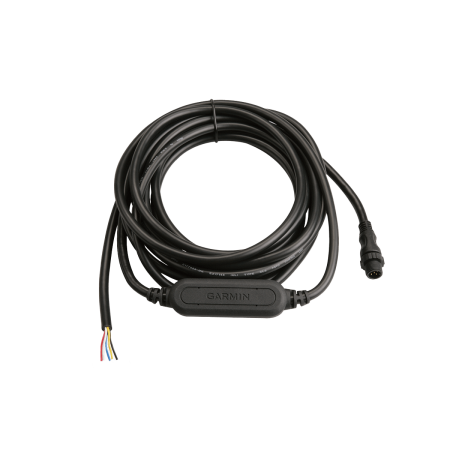

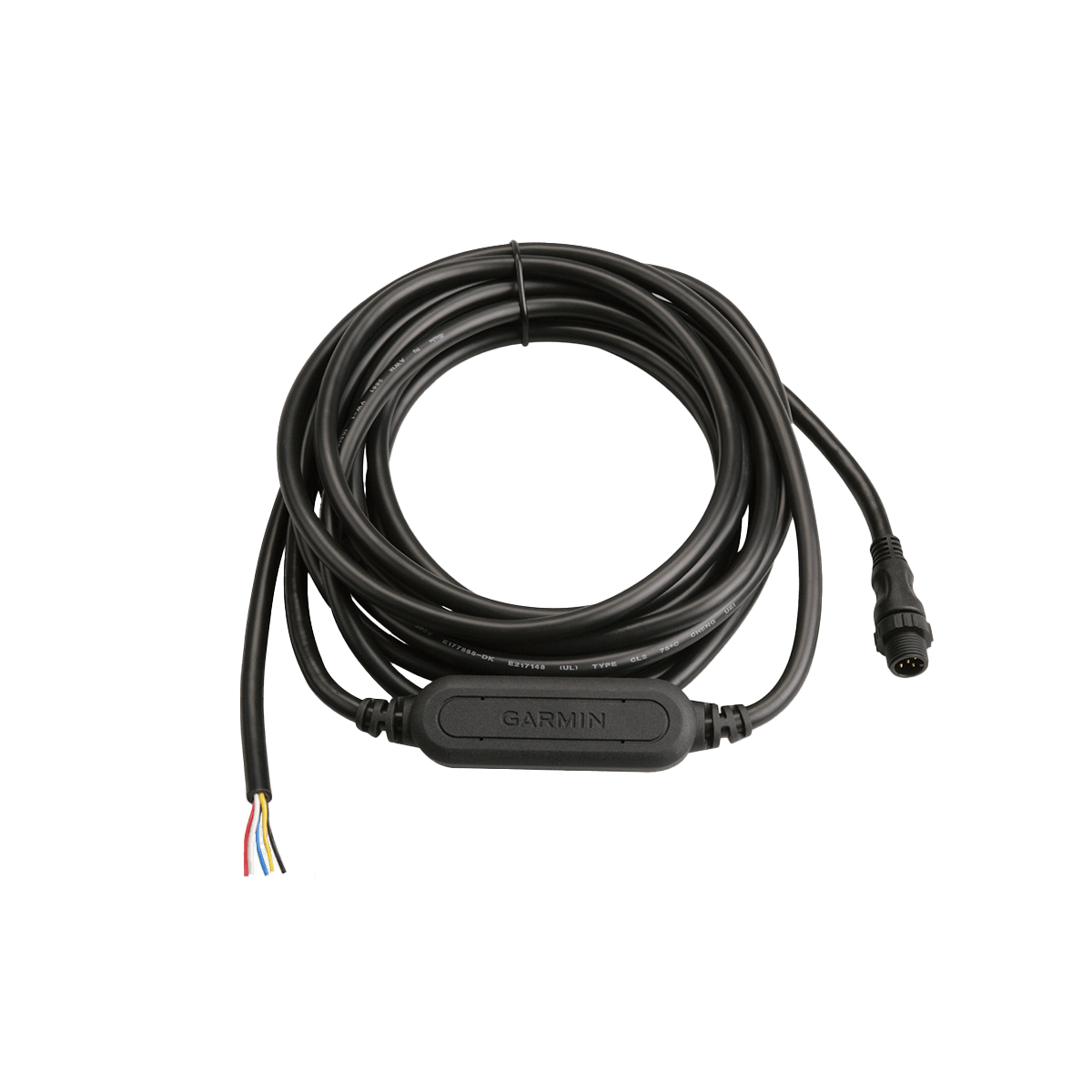

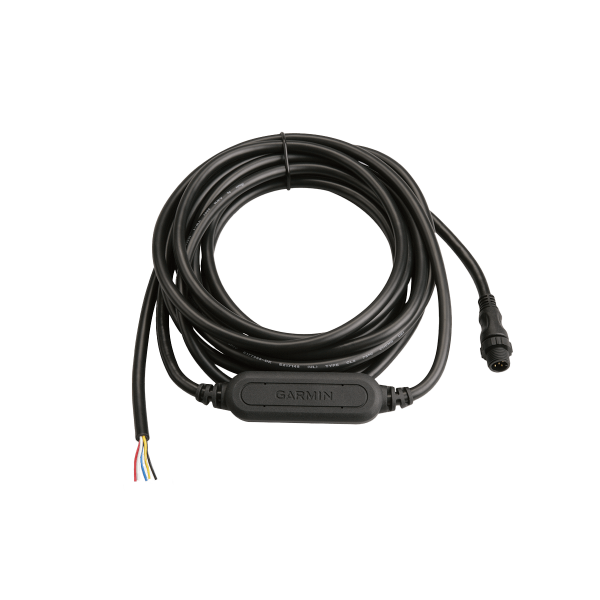

NMEA2000 adapter for GRA 10 rudder angle sensor
Ref.
010-11324-00
With this GRA 10 rudder angle adapter Garmin, you can give a second life to your ship's old dials by switching from the analog to the digital era.
It takes the data generated by analog dials and converts it into an NMEA2000 signal.
Read more
€166.58
Tax included
Public price
€174.17
Price tax excl. / DOM TOM
€166.58
010-11324-00
GARMIN - NMEA2000 adapter for GRA 10 rudder angle sensor
Easy to install, this Garmin GRA 10 adapter takes the data generated by conventional analog dials and converts it into an NMEA2000 signal, enabling you to create a network or extend your existing network without having to replace all your boat's equipment.
 |

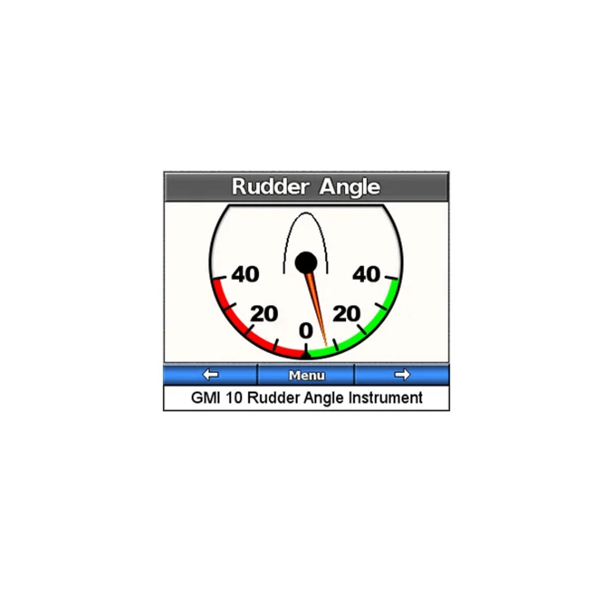

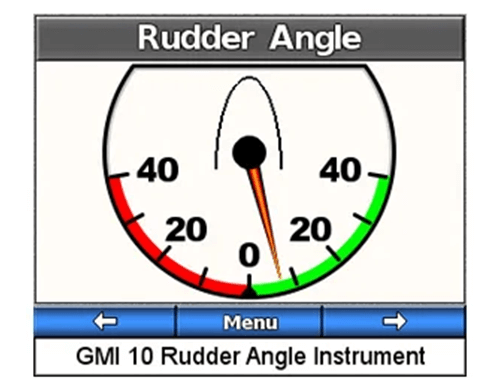

Connect to your networkThe NMEA 2000 GRA 10 adapter from Garmin converts analog information from your boat's rudder angle sensor (not supplied) to your Garmin network. It enables rudder angle information to be displayed on compatible Garmin display devices connected to your NMEA 2000 network. NMEA2000 analog adapters from Garmin can be easily integrated into any existing on-board network. Once the adapter is installed, its data can be displayed on the screen of your GMI 10 multifunction display or other compatible Garmin devices. Easy to install and use, this product will help you make the digital leap. |
Technical specifications Garmin GRA 10
| Dimensions (W x H x L) | 24.7 x 17 x 78.6 mm |
| Total cable length | 4.9 m |
| Compass safety distance | 5 cm |
| Input power supply | 9 to 16V DC from NMEA2000 |
| NMEA2000 power consumption | 1.1 W Max |
| NMEA2000 load equivalence number |
2 (100 mA) |
| Weight | 85 g |
| Temperature range | from -15°C to 70°C |
