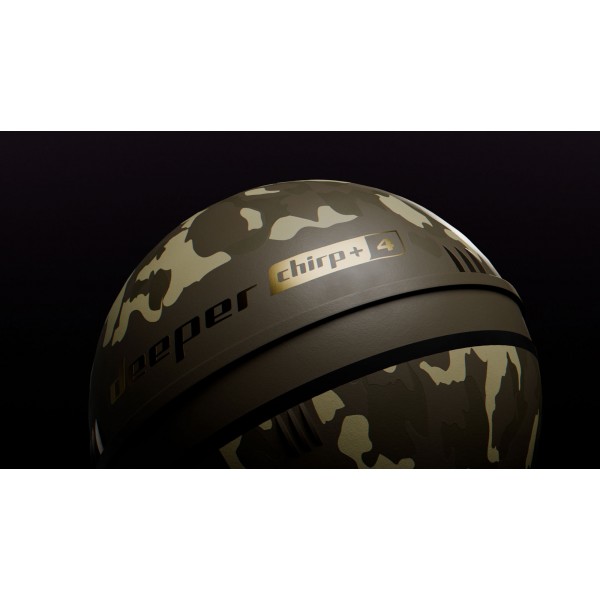

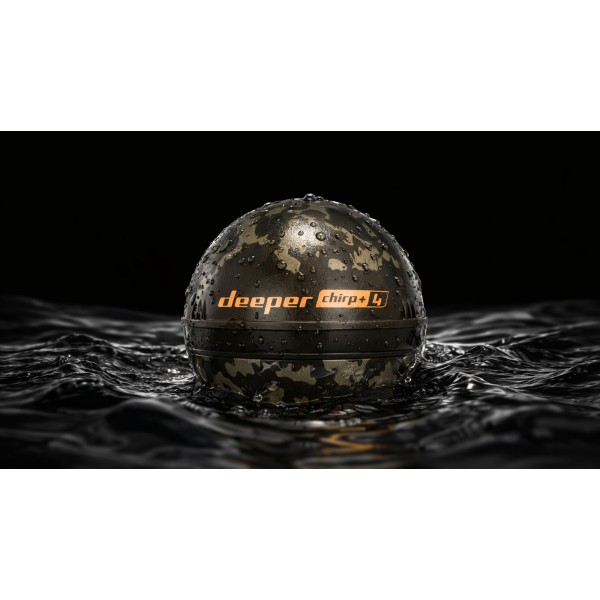

DEEPER CHIRP+ 4 - GPS and AI assistance

Fish detection using artificial intelligence

This is the big news from CHIRP+ 4: an onboard AI developed by fishermen, analyzes sonar data in real time directly on your smartphone.

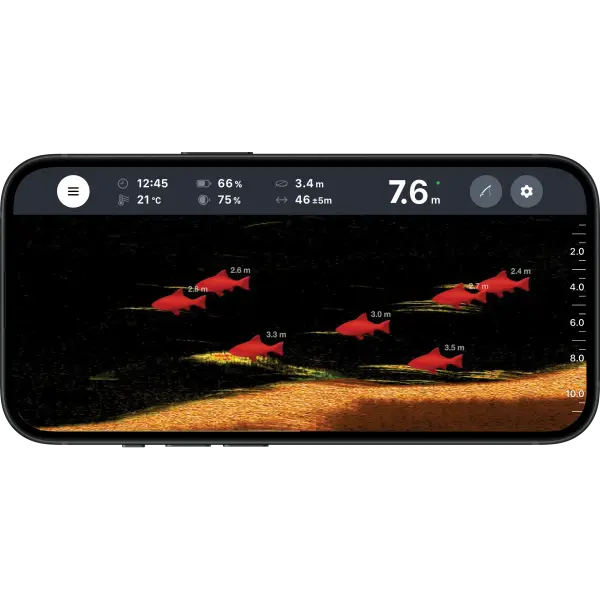

During the scan, it automatically identifies fish echoes among false signals: submerged branches, air bubbles and other parasites, then distinct icon mark on the screen.

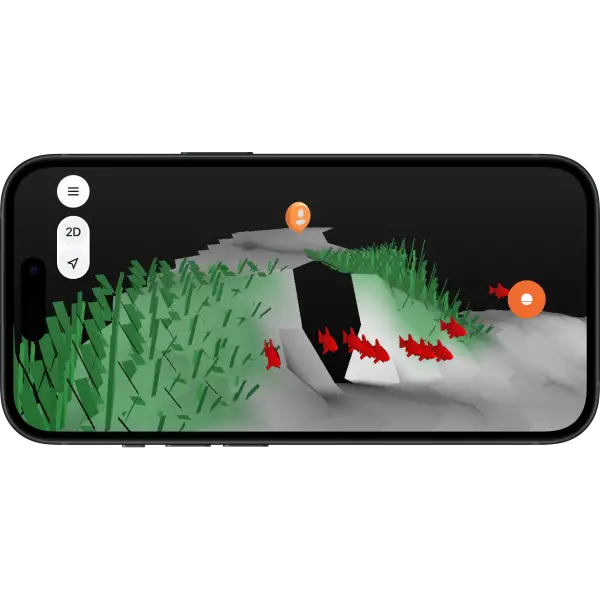

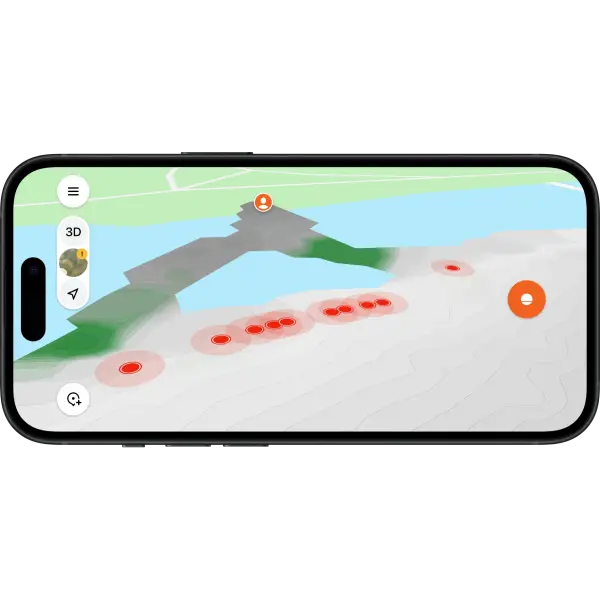

These markings are then recorded with their GPS position and remain visible on your personal 2D and 3D bathymetric maps, even after your session. This means you can find geolocated fish zones on your background map, so you can fine-tune your positions from one outing to the next.

• Automatic identification fish echoes in real time
• Fish visualization on 2D and 3D map registered
• Reliable differentiation between fish and false echoes (branches, air bubbles, etc.)
• AI designed and calibrated by fishermen in the field

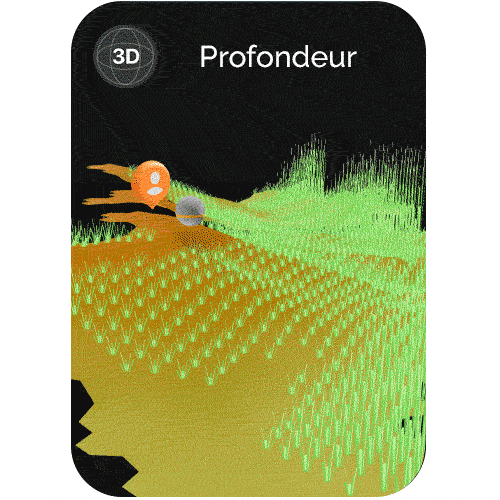

2D and 3D multi-layer bathymetric maps

Portable sounder CHIRP+ 4 goes far beyond simple depth mapping. Thanks to its high-precision sonar data, it generates personal maps with three overlapping layers of information :

• Depth : mark the contours under-breaks and plateaus. Ideal for understanding the topography of a spot.
• Bottom hardness distinguish between areas of hard gravel and soft, muddy bottoms. This information is crucial for targeting the right positions.
• Aquatic vegetation the most important thing to remember: precisely map the meadows, their edges and the clear corridors between plant zones.

These three layers are features exclusive to CHIRP+ 4, no other model Deeper offers them. They are generated from your own scans and can be viewed free of charge in the Fish application Deeper (iOS, Android and web).

The Cartes+ subscription (from €24.99/year, 7-day free trial) also gives access to maps already mapped by the community for over 50,000 bodies of water.

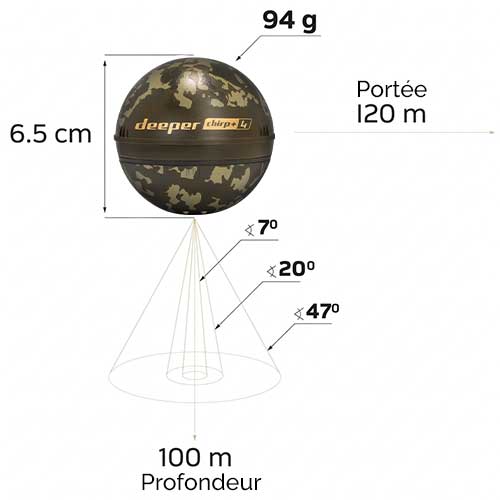

Technology CHIRP triple beam: unrivalled precision

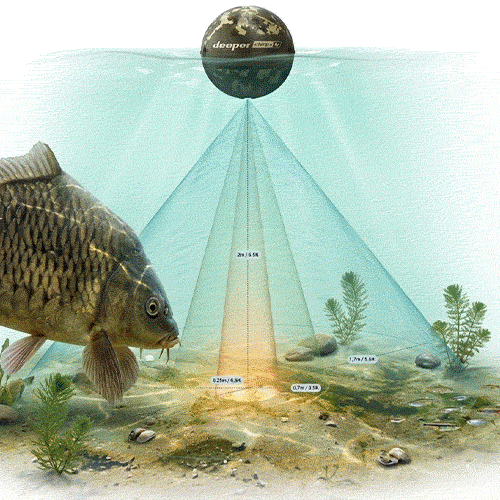

Unlike conventional sonar, which transmits a single frequency, the CHIRP (Compressed High Intensity Radiated Pulse) sends a continuous flow of variable frequencies for sharper, more detailed images. The CHIRP+ 4 offers a choice of three beams depending on the situation:

• Wide-beam 47° at 100 kHz ideal for covering a large area and quickly spotting fish activity.
• Intermediate beam 20° at 240 kHz the perfect balance between coverage and precision. Reveals background hardness and vegetation.
• Narrow beam 7° at 675 kHz : maximum sensitivity to scan the seabed in the finest detail, with 1 cm target separation.

In shallow water (up to 5 m), resolution is 4 times greater at Deeper PRO+ 2. The minimum detection depth is just 15 cm, for use in rivers or at the edge of seagrass beds. The sounder operates in sub-zero temperatures down to -20°C, making it ideal for ice fishing.

A versatile sounder for all fishing styles

Visit CHIRP+ 4 works without cell phone or internet connection : the Wi-Fi connects the sounder directly to your smartphone up to 120 m range which can be extended to 200m with the range amplifier kit optional. The lithium battery-polymer ensures up to 15 hours of autonomy (GPS deactivated) or 9 hours with GPS active, for long sessions without recharging. Recharging is via USB-C in 110 minutes.

It adapts to any situation:

• Fishing from bank or shore, casting up to 120 m

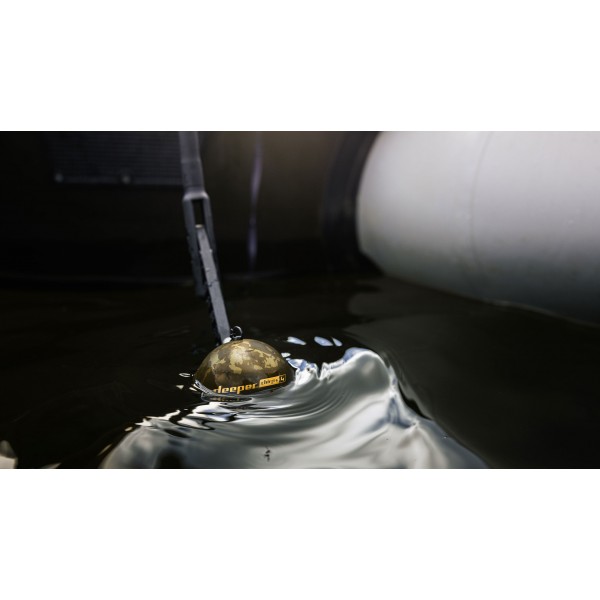

• From a boat, kayak or float tube
• Mounted on a radio-controlled bait boat
• Ice fishing in winter, up to -20°C
• In fresh or salt water

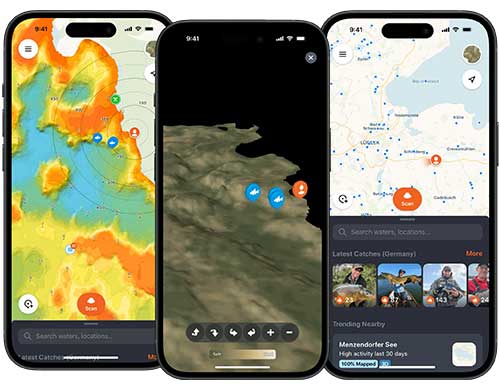

Fish application Deeper plan and analyze your outings

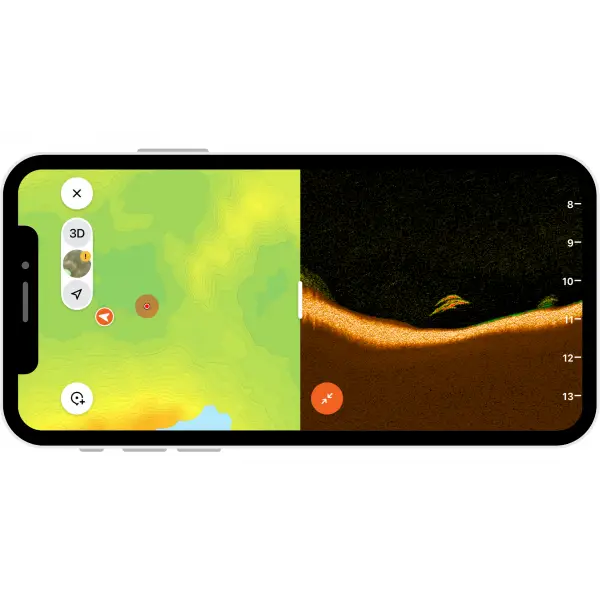

Visit CHIRP+ 4 is controlled via the Fish application Deeper, available free of charge on iOS, Android and as a web version. It centralizes real-time sonar returns, AI markings, your personal saved maps and geolocated spots, accessible on any device.

Subscription Cartes+ (from €24.99/year, 7-day free trial) unlocks access to community bathymetric maps of over 50,000 bodies of water in 2D and 3D, so you can prepare a spot before you even set foot on it. Subscription Cartes+ with Sounder Protection adds a replacement guarantee in the event of loss, theft or accidental damage.

• Real-time sonar returns with AI fish tagging
• Personal depth, hardness and vegetation maps (free)
• Geolocated spotlights, catch recording, weather and water temperature
• Access to community cards via Cartes+ subscription

Find out more about the Fish application Deeper and subscriptions.

Accessories for the Deeper Chirp+4

Visit Deeper Chirp+4 can be enhanced by a number of optional accessories, making it even easier to fish from the shore or from a boat (kayak, float, etc.)-tube, boat...)

• Smartphone holder Deeper on cane - Ref : FROM-FLACC04
• Bracket for mounting on priming boat - Ref : FROM-EXT-SUPP
• Wifi amplifier pack for shore fishing - Ref : FROM-EXT-PACK2
• Wifi amplifier pack for bait boat - Ref : FROM-EXT-PACK1
• Tripod for mounting wifi amplifier and smartphone - Ref : FROM-EXT-TRIPOD
• Flexible arm for mounting your DEEPER on your boat - Ref : FROM-FLACC01V2

MAIN POINTS :

• Throwing range: 120m
• AI fish detection
• GPS multi-integrated constellation
• CHIRP triple beam: 7° / 20° / 47
• Depth: 15cm min. / 100m max.
• Freshwater and saltwater / -20°C to +40°C
• Autonomy: 15h (GPS off) / 9h (GPS on)
• Multilayer maps: depth, hardness, vegetation

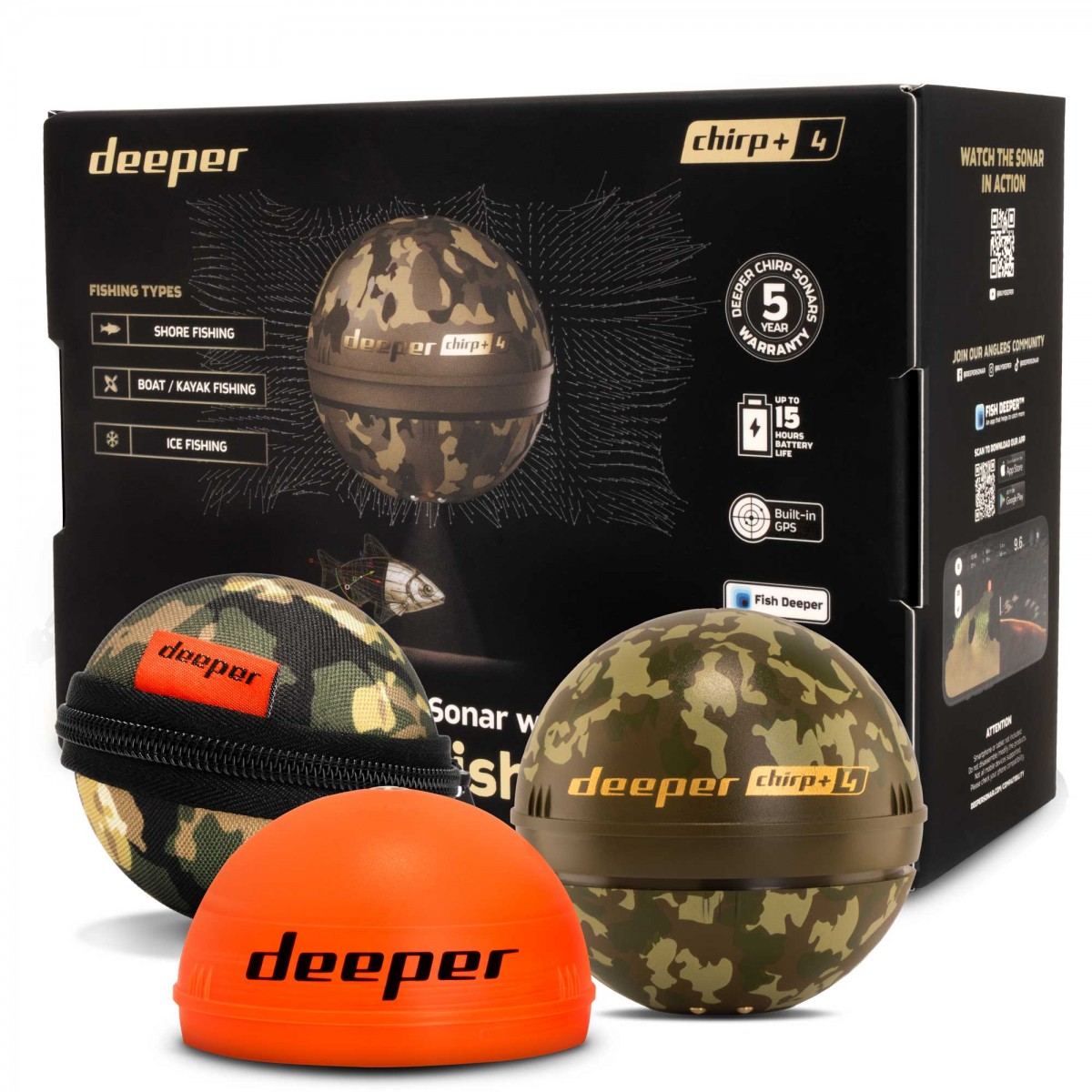

BOX CONTENTS :

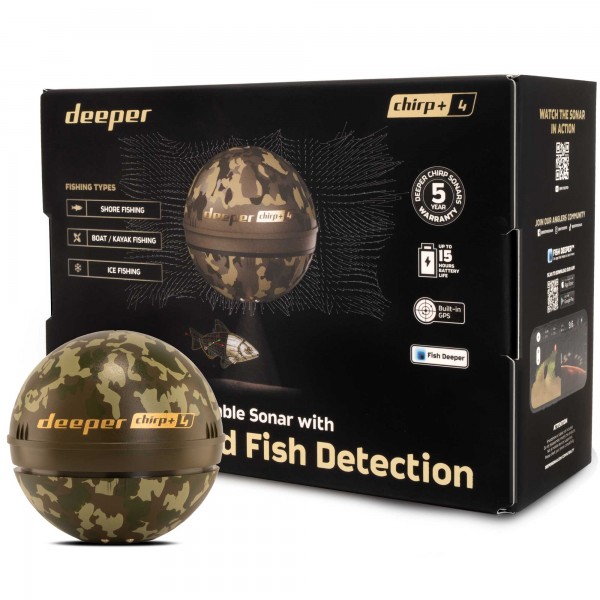

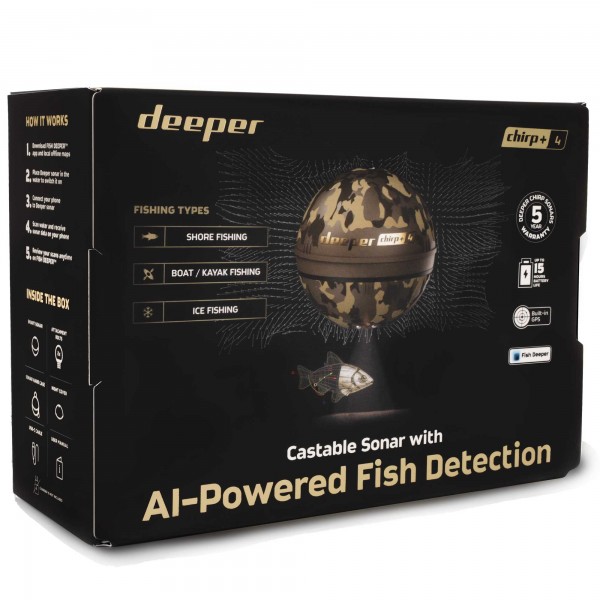

• 1 - Depth sounder Deeper CHIRP+ 4
• 1 - Rigid protective case

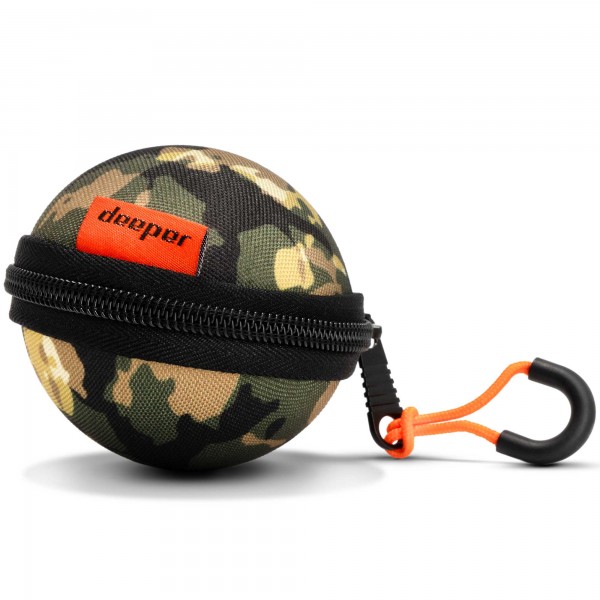

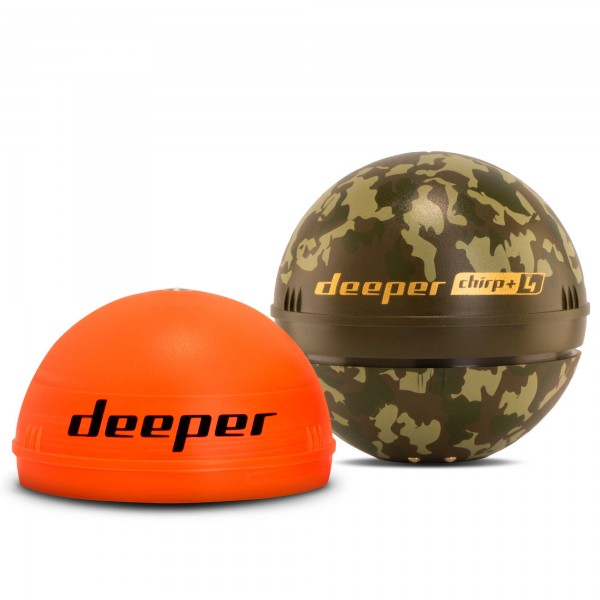

• 1 - Cover for night fishing
• 1 - USB charging cable-C
• 2 - Fixing bolts
• 1 - PDF documentation
