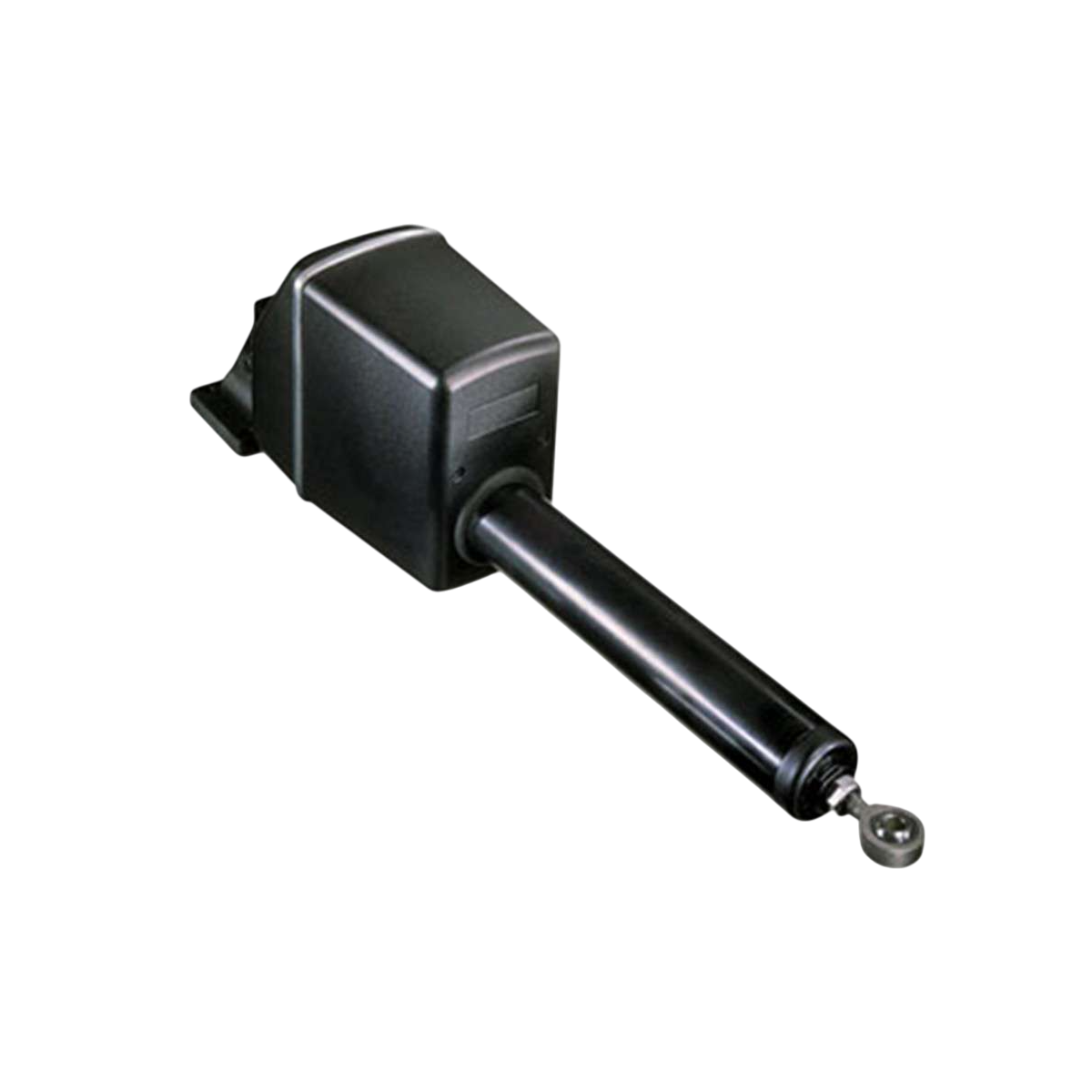

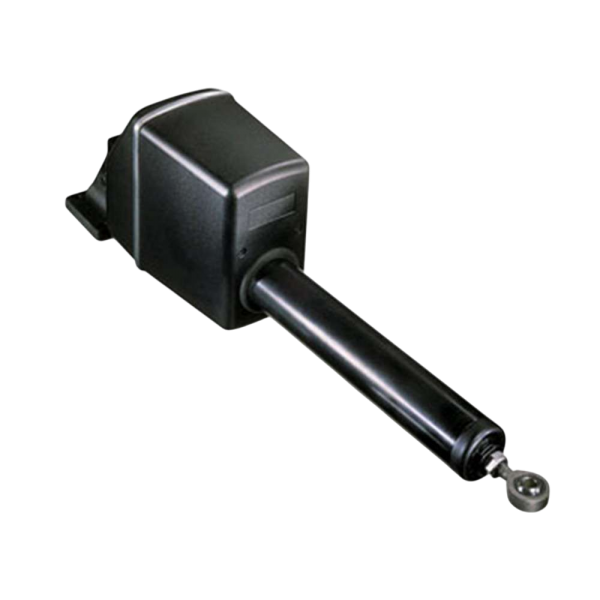

T1 mechanical linear actuator - 12V

Ref. M81130

The Type 1 12V Linear Actuator is a power unit Raymarine, designed for boats with mechanical steering systems and displacements of up to 10T (22,000lb).

Read more
€2,119.90 Tax included
Public price
€2,394.00
-11%
or pay in
10x 60x
Price tax excl. / DOM TOM €1,766.58
Quantity
By buying this product you can collect up to 2119 loyalty points. Your cart will total 2119 points that can be converted into a voucher of €21.19.
M81130
Description

RAYMARINE - LINEAR ACTUATOR - FAST, POWERFUL AND QUIET

The Raymarine power units are characterized by high torque, high speed from stop to stop and silent operation. Installed below deck, linear power units maneuver the tiller directly by acting on the bit arm or tiller sector. Linear power units are the most commonly fitted power units on sailboats.

Linear cylinders from Raymarine benefit from low inertia, allowing manual steering without the presence of a disengaged autopilot. In addition, the electric motor is controlled by an electromagnetic clutch, with a high-strength drive belt and a high-performance gear train.

Finally, the advantage of Raymarine linear actuators is that they deliver high performance with minimal power consumption. This makes the linear actuator perfectly suited to sailboats.

MAIN POINTS :

  • Voltage: 12 Volts
  • Peak thrust: 295 kg
  • Maximum stroke: 300 mm
  • Corepack compatible: SPX10
  • Power consumption: 18 to 36 Watts
  • Max. bar torque: 735nm
  • Power unit type: Type 1
  • Maximum boat displacement: 11T

BOX CONTENTS :

  • 1 - Mechanical linear actuator T1 - 12V
  • 1 - Installation kit
  • 1 - PDF documentation
