Linear Hydraulic Cylinder 40ST16

Name: Linear Hydraulic Cylinder 40ST16
Brand: Lecomble & schmitt

The 40ST16 Newave by Lecomble & Schmitt is a single-rod linear hydraulic cylinder. Whatever the available space, the 40ST16 will perfectly suit your boat.

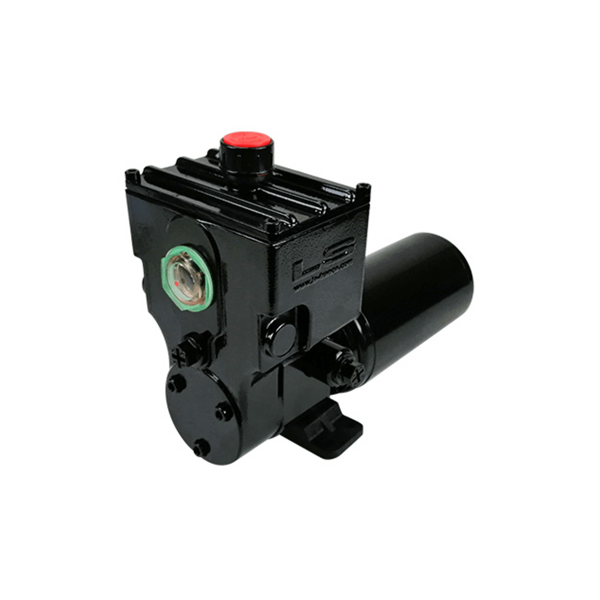

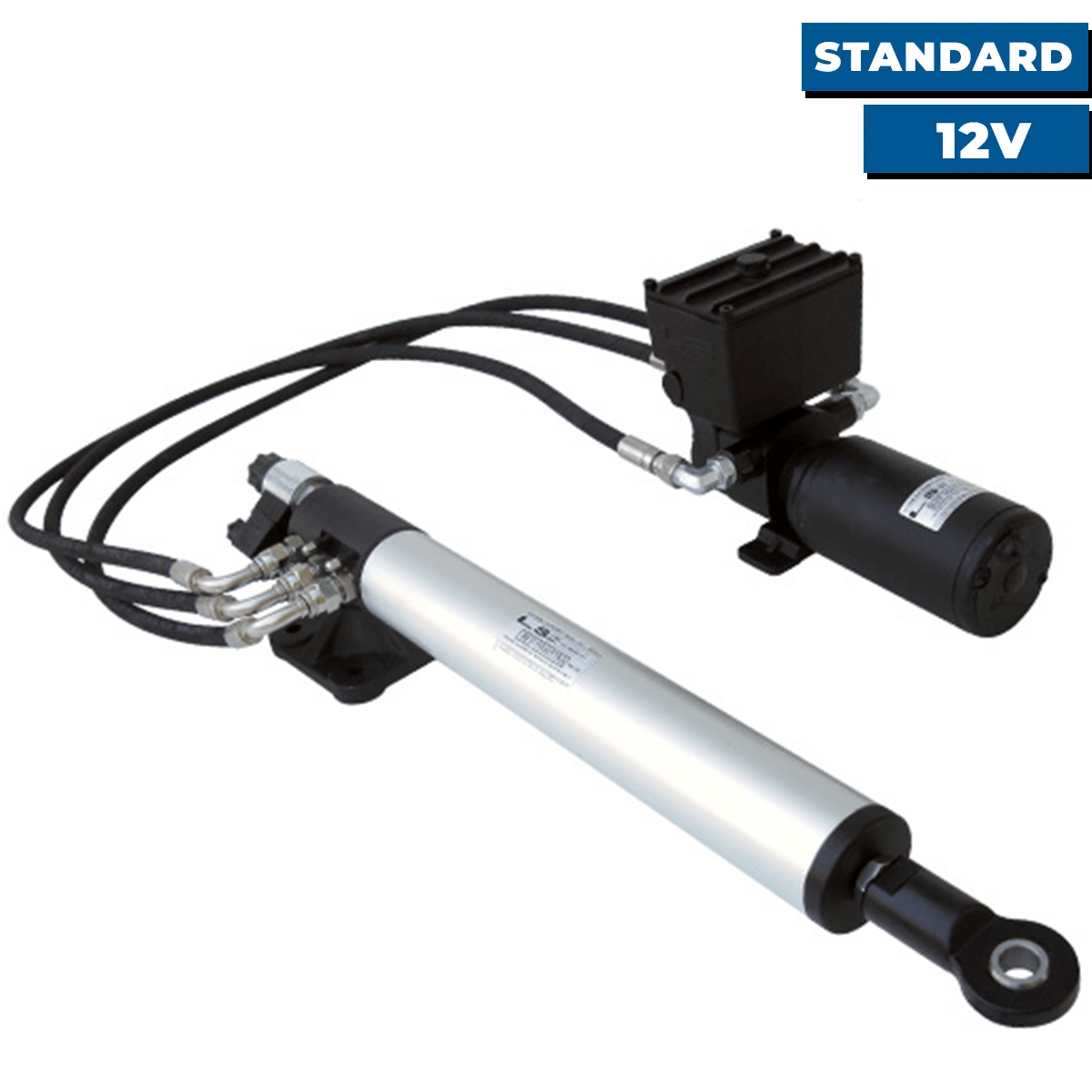

Here in 12V, it features a separate fixed-flow reversible unit for indoor installation, allowing flexibility in its placement.

€1,666.58 Tax included

Public price

€2,089.07

-20%

or pay in

Price tax excl. / DOM TOM €1,666.58

CYLINDER TYPE

Version

Standard fixed flow
By-integrated electric pass

Quantity

IN SUPPLIER STOCK

Delivery times and costs

1666 loyalty points.

Reference 2203066

Description
Attachments
Accessories
Customer Reviews
Questions / Answers
Products also ordered

Description

NEWAVE LECOMBLE & SCHMITT - HYDRAULIC CYLINDERS FOR BOATS

The Lecomble & Schmitt 40ST16 is an easy-to-install linear hydraulic cylinder. Thanks to its compact dimensions, it can be installed directly on the helm. It operates on 12Vdc or 24Vdc depending on the version chosen, for a thrust of 450kg and a maximum torque of 100mkg. Designed for yachts up to 45 feet in length.

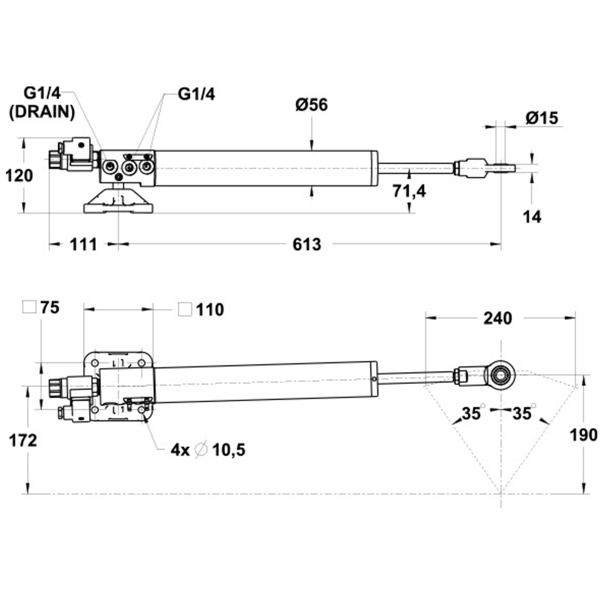

	40ST16 HYDRAULIC CYLINDER The reversible power pack is separate to allow choice of installation. The hydraulic cylinder rod is adjustable to suit all boats. Stroke: 240mm Max torque: 100mkg Max. thrust: 450kg Power supply: 12V or 24V Please note Fixing kit 2201557 isnot supplied in this pack.

KEY POINTS Small footprint Direct installation on mains bar All fittings in stainless steel Separate reversible unit for choice of location	CYLINDER CONTENTS 1 - 40ST16 hydraulic cylinder *(12V or 24V* ) 1 - Installation manual
