Name: Power unit DD15
Brand: Simrad

☀️ Garmin spring offer ☀️ Up to -38% off a selection ⏰ ends 04/30/24

⚡️ Get up to €500 back on your SIMRAD or B&G equipment ⏰ From 01/04/2024 to 31/05/2024.

-€290.10

The DD15 Simrad power unit is powerful and compact, delivering efficient performance and high efficiency. Designed for mechanical systems, it operates on 12V for a thrust of 150kg and a travel of 250mm, with an integrated rudder angle sensor. The DD15 is mounted on the rudder stock, with the linkage arm to be specified (20-30cm or 30-40cm or 40-50cm).

€2,409.90 Tax included

Public price

€2,700.00

-10%

or pay in

Price tax excl. / DOM TOM €2,008.25

Reference 21119896

Description
Accessories
Customer Reviews
Products also ordered

Description

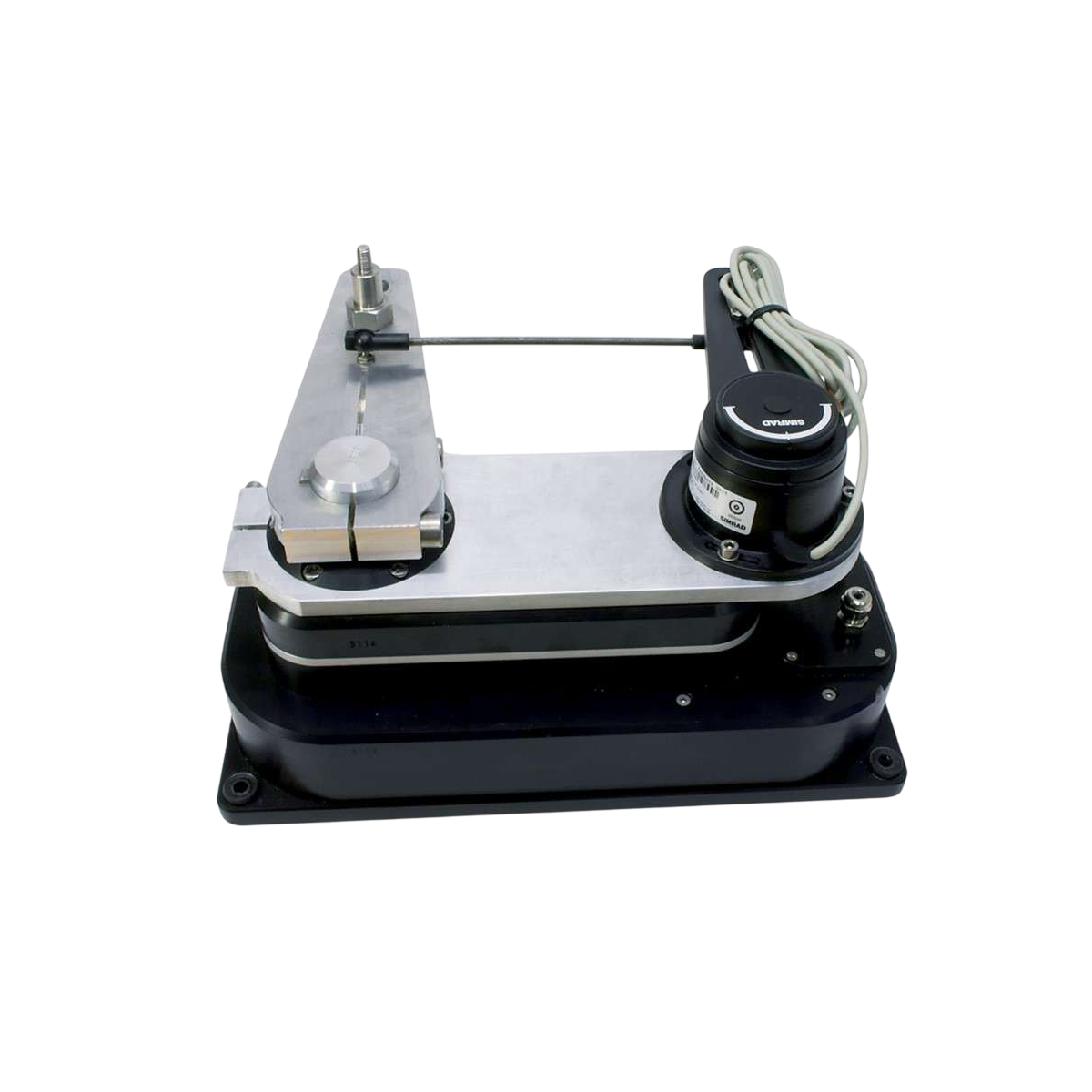

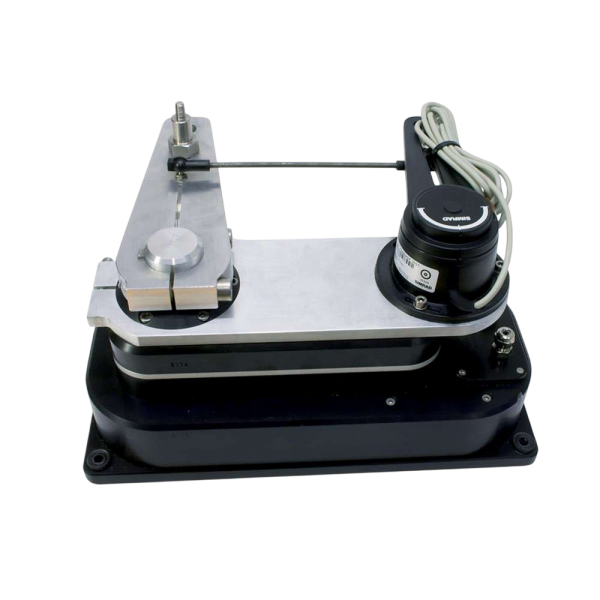

SIMRAD - DD15 POWER UNIT

The DD15 power unit from Simrad is very powerful and particularly compact. It generates virtually no friction on the helm when the pilot is disengaged.

The DD15 system has a torque of 150kg, equivalent to 150kg of thrust on a 1m bar. Designed to operate 24 hours a day, it weighs just 12kg. In addition, its power consumption is generally lower than that of hydraulic cylinders.

This motor can be used on boats from 30 to 40 feet (or on units whose maximum rudder torque does not exceed 150kg). The rudder angle sensor is mounted directly on the motor, simplifying installation.

The DD15 mechanical cylinder system from Simrad comes with integrated Feedback, but without linkage arms to allow you to adapt the length.
