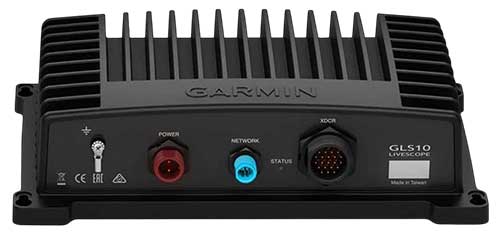

GLS 10 fishfinder module for panoptix probe

TECHNICAL SPECIFICATIONS

• Power supply: 10 to 32 V DC
• Power consumption: ~21 W (standard operation)
• Network connection: Garmin Marine Network (proprietary RJ45 connector)
• Plotter compatibility: ECHOMAP UHD / UHD2 (7" and 9") / ECHOMAP Ultra / GPSMAP series 7x3, 9x3, 12x2, 8400/8600
• Dimensions: 245 x 149 x 65 mm
• Weight: 2 kg
• Water-resistance rating: IPX7
• Operating temperature: -15 °C to 70 °C
• Software update: via compatible plotter or SD card

WHAT IS-DESIGNED FOR?

The Garmin GLS 10 sonar module is designed for demanding fishing enthusiasts, whether in freshwater or shallow waters. It provides :

• Live visualization of the environment under-marine thanks to LiveScope™ probes
• Instant identification of fish and structures
• Precise location even when the boat is stationary or moving
• Optimized casting, by observing fish reactions in real time

It's ideal for sight fishing, vertical fishing, or any technique requiring ultra-reactive bottom reading.

Find the probe installation guide in the attached documentation.

KEY FEATURES

• Real-time sounder image
• Transmission power: 500W
• Maximum depth Down and Forward: 61 meters
• Essential for using the Panoptix sounder Livescope

BOX CONTENTS :

• 1 - GLS 10 sounder module
• 1 - Power cable
• 1 - Network cable Garmin Network (2 meters)
• 1 - Network adapter cable
• 1 - Mounting kit
• 1 - PDF documentation
