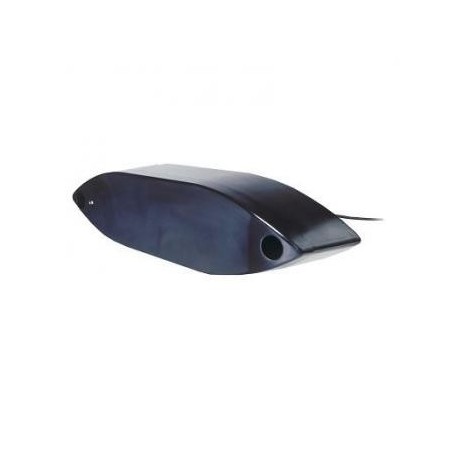

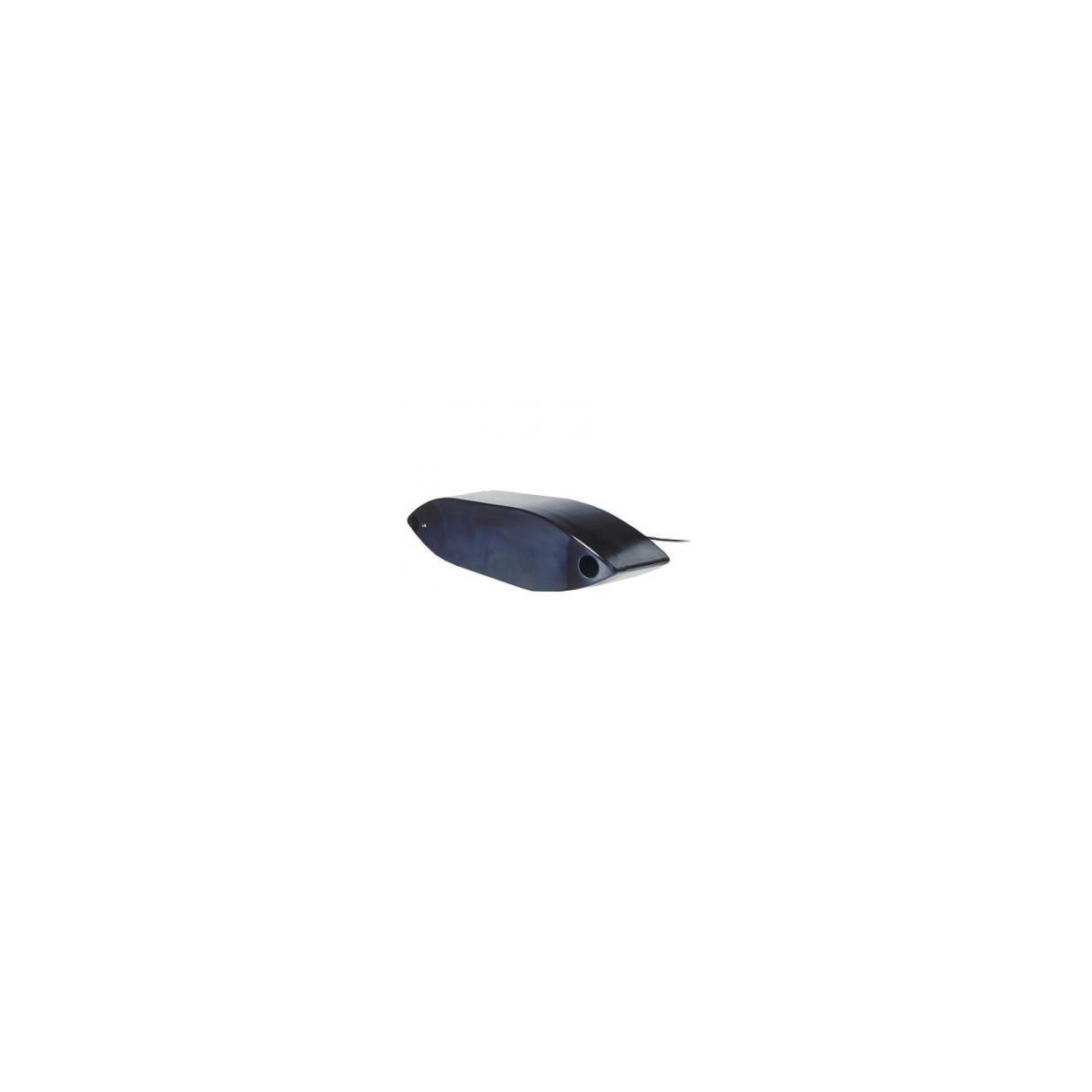

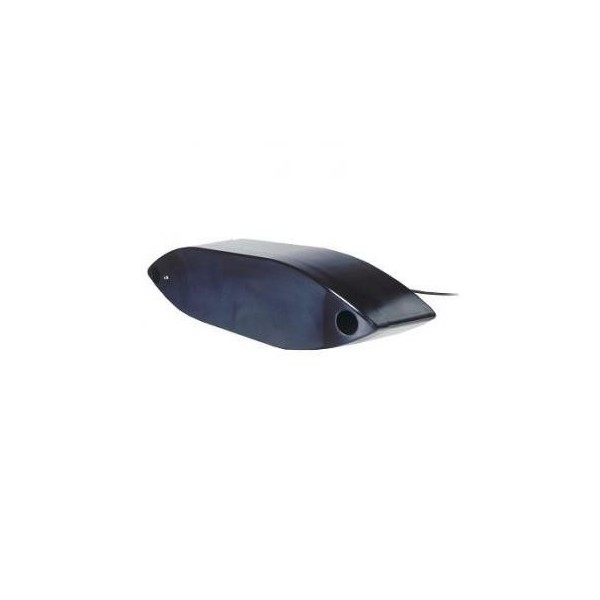

R109LH Probe CHIRP D/T XID 2-3kW 38-75/130-210kHz - cable 12m - NC

BroadBand CHIRP R109LH probe (low and high frequencies) 38-75/130-210kHz - Depth/temperature

Traditional marine sounders operate at fixed frequencies such as 50 kHz and 200 kHz, using short pulses at fixed frequencies.

In contrast, CHIRP (compressed high-intensity radar pulse) uses a precise scanning pattern of many frequencies within a long broadband pulse duration, so that the equivalent sound energy transmitted into the water is 10 to 1000 times greater than a conventional sounder.

The echo returned to the probe is superior to that of a conventional probe.

The combination of a broadband CHIRP probe and a BroadBand sounder delivers spectacular results rich in detail and accuracy, with superior depth capability and a significant improvement in high-speed performance.

• Power: 2KW
• Functions
  • Depth
  • Temperature
• Beam
  • 38-75 kHz: 19° to 10
  • 130-210 kHz: 8° to 4
• Weight: 21 kg
• Mounting : Through-hole
• Supplied with 15-meter cable without connector.
