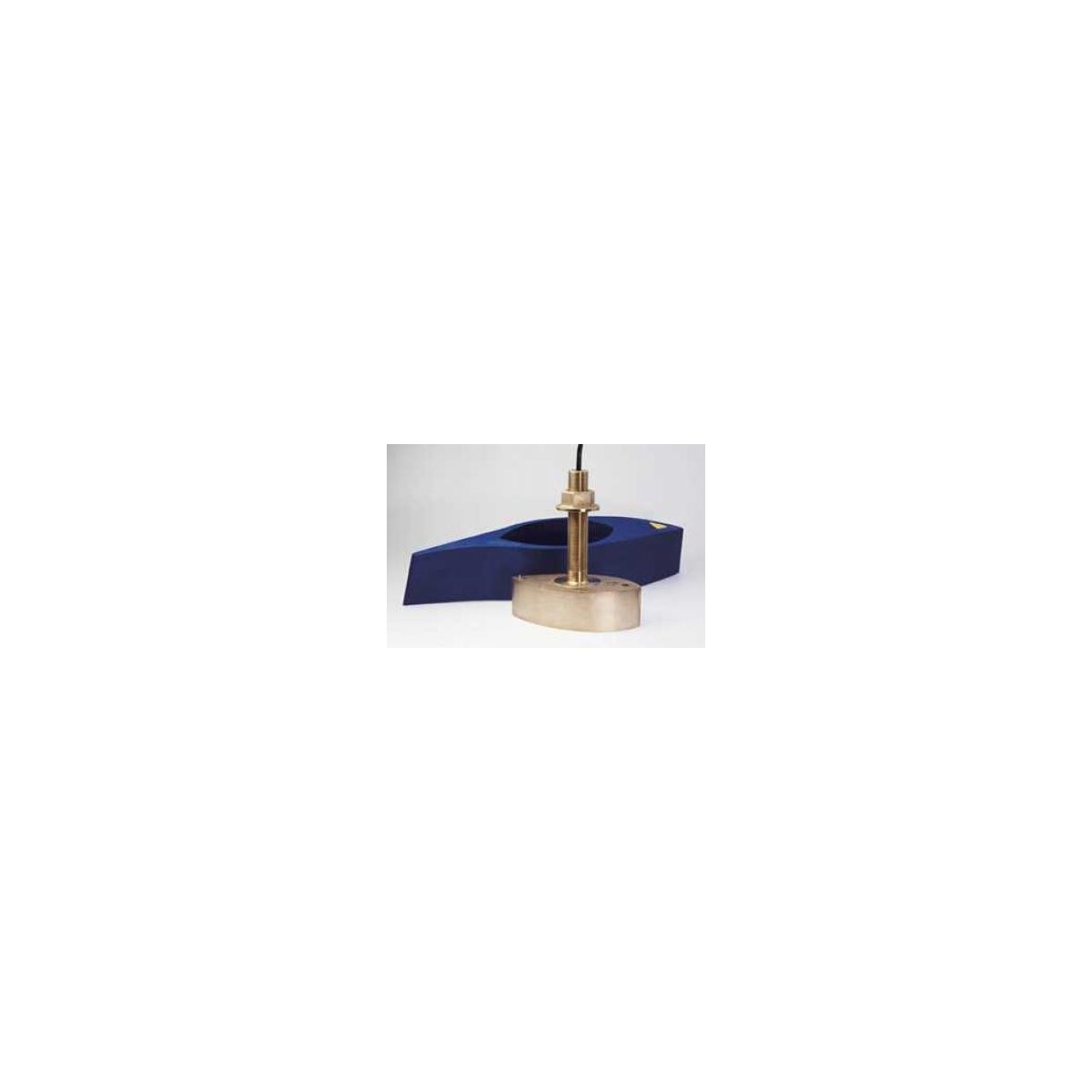

SS260 Probe D/T XID DIP 1kW 50-200kHz AWlq - cable 2m - 9M MM

AWlq allocation: NAVMAN, LOWRANCE, SIMRAD NSE, NAVICO BSM.

The SS260 is a stainless steel Broadband through-hull transducer, ideal for sport fishing boats and merchant vessels up to 30 ft long, fishing at depths of up to 3,000 ft.

High performance

• The 1 kW transducer is ideal for fast sport fishing boats that can install a transducer with fairing.

Deep-water fishing

• Excellent for fishing in deep waters and areas with high fish concentrations up to 500 m/1,640 ft

Depth/temperature

• Depth and temperature calculation from a compact sensor

Simple installation
Wide operating range

• From 1 knot to 45 knots

Highly accurate audio system

• Highly accurate echo-sounder data, even at speeds in excess of 30 knots

Dual elements

• Narrow 200 kHz ceramic element with 6° beam provides excellent resolution and sharp images for bottom fishing. The seven-element 50 kHz array offers a wider 19° beam for deep-sea fishing in deeper waters.

Stainless steel

• Designed to withstand the environment
