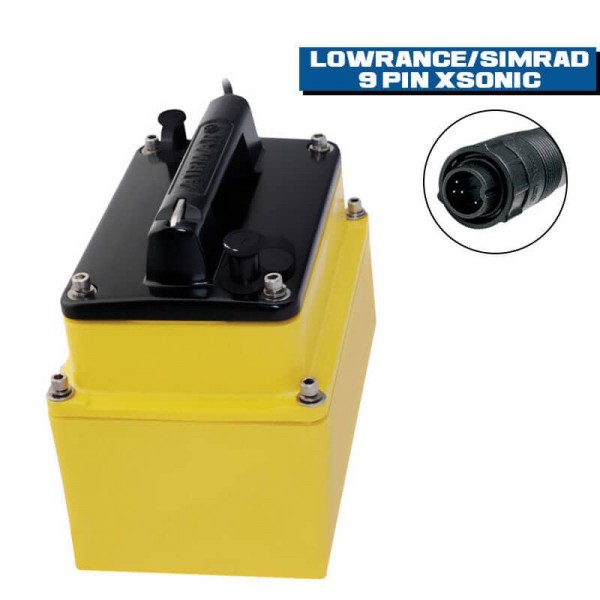

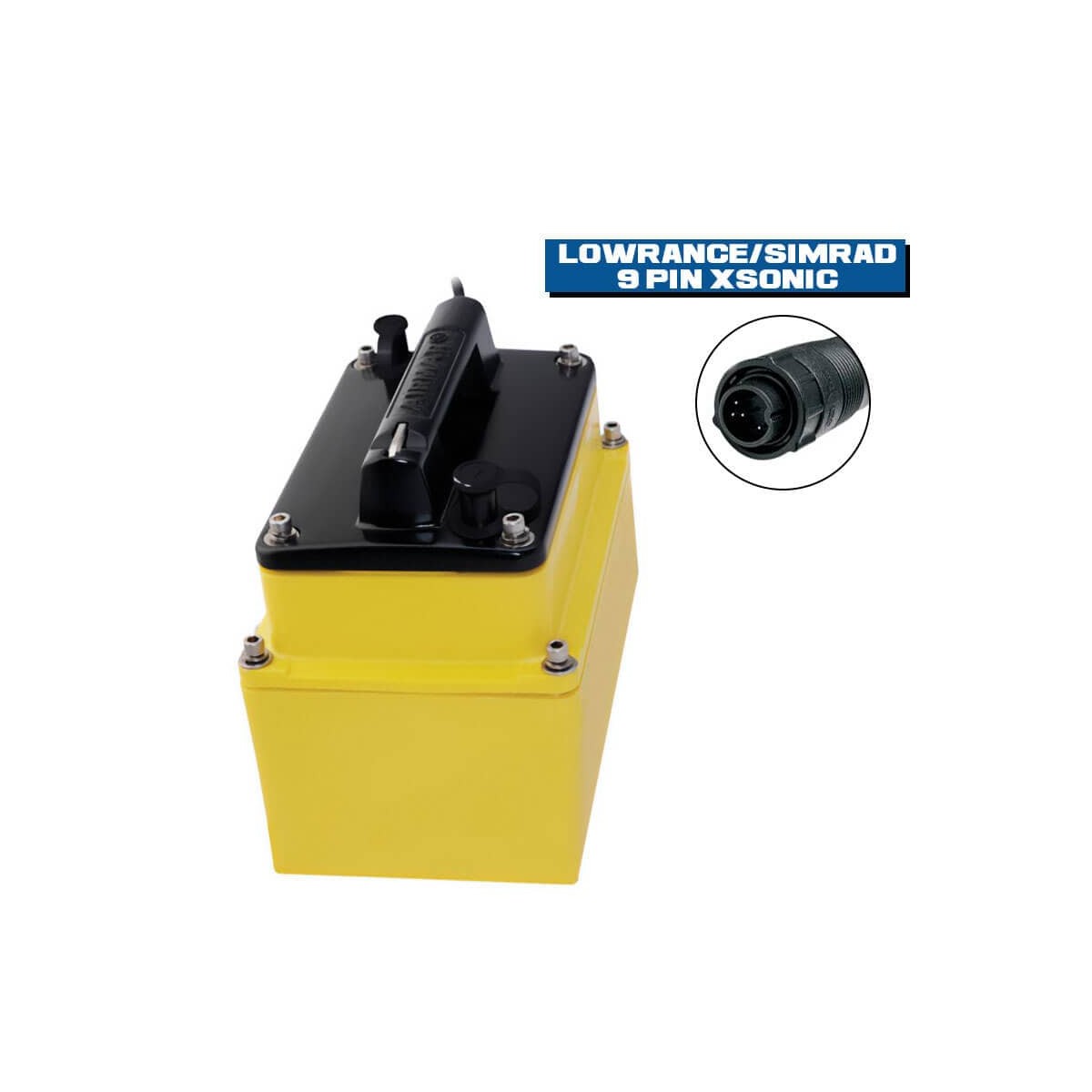

M265LH 2D Internal Mount 1kW sensor

Ref. 41-476-1-02

The M265LH dual-frequency hull-glued probe is perfect for anglers looking for deep-water performance.

This probe has an operating frequency of 42 to 65 kHz and 130 to 210 kHz, a beam width of 16 to 25 degrees and 6 to 10 degrees, and can be mounted on a mantle angle of 0 to 30 degrees.

Read more Features
€1,799.90 Tax included
Public price
€2,266.99
-20%
or pay in
10x 60x
Price tax excl. / DOM TOM €1,499.92
FOR WHICH POLLSTER?
Quantity
OUT OF STOCK
By buying this product you can collect up to 1799 loyalty points. Your cart will total 1799 points that can be converted into a voucher of €17.99.
41-476-1-02

Data sheet

Power probe
1000w
Probe Mounting
Interior glue-on
Material probe
Plastic
Depth probe
0 - 100 m, 100 - 300 m, 300 - 500 m, 500 - 1000 m
Probe Functions
Depth
Frequency probe
42/65, 130/210
Product type
Probe
Description

AIRMAR - M265LH SENSOR - 1KW INBOARD MOUNTING

CHIRP (compressed high-intensity radar pulse) uses a precise scanning pattern of many frequencies within a long broadband pulse duration, so that the equivalent sound energy transmitted into the water is 10 to 1000 times greater than a conventional probe.

M265LH

M265LH IMAGING

Low frequency: 42 to 65 kHz

  • Beam width from 25° to 16
  • Maximum depth: 914 m (3000')

High frequency: 130 to 210 kHz

  • Beamwidth from 10° to 6
  • Maximum depth: 304 m (1000')

Probe power: 1 kW.

103 kHz total bandwidth from one transducer

Covers popular fishing frequencies of 50 and 200 kHz as well as everything else in the passband

MAIN POINTS:

  • Weight: 5.2 kg
  • Acoustic window: urethane
  • Shell material: fiberglass

BOX CONTENTS:

  • 1 - M265LH probe
  • 1 - Adapter (depending on model)
  • 1 - PDF documentation
