PM488 combination probe for DFF3D/DFF1UHD

Name: PM488 combination probe for DFF3D/DFF1UHD
Brand: Furuno

Ref. AI-165T265LHPM48812P

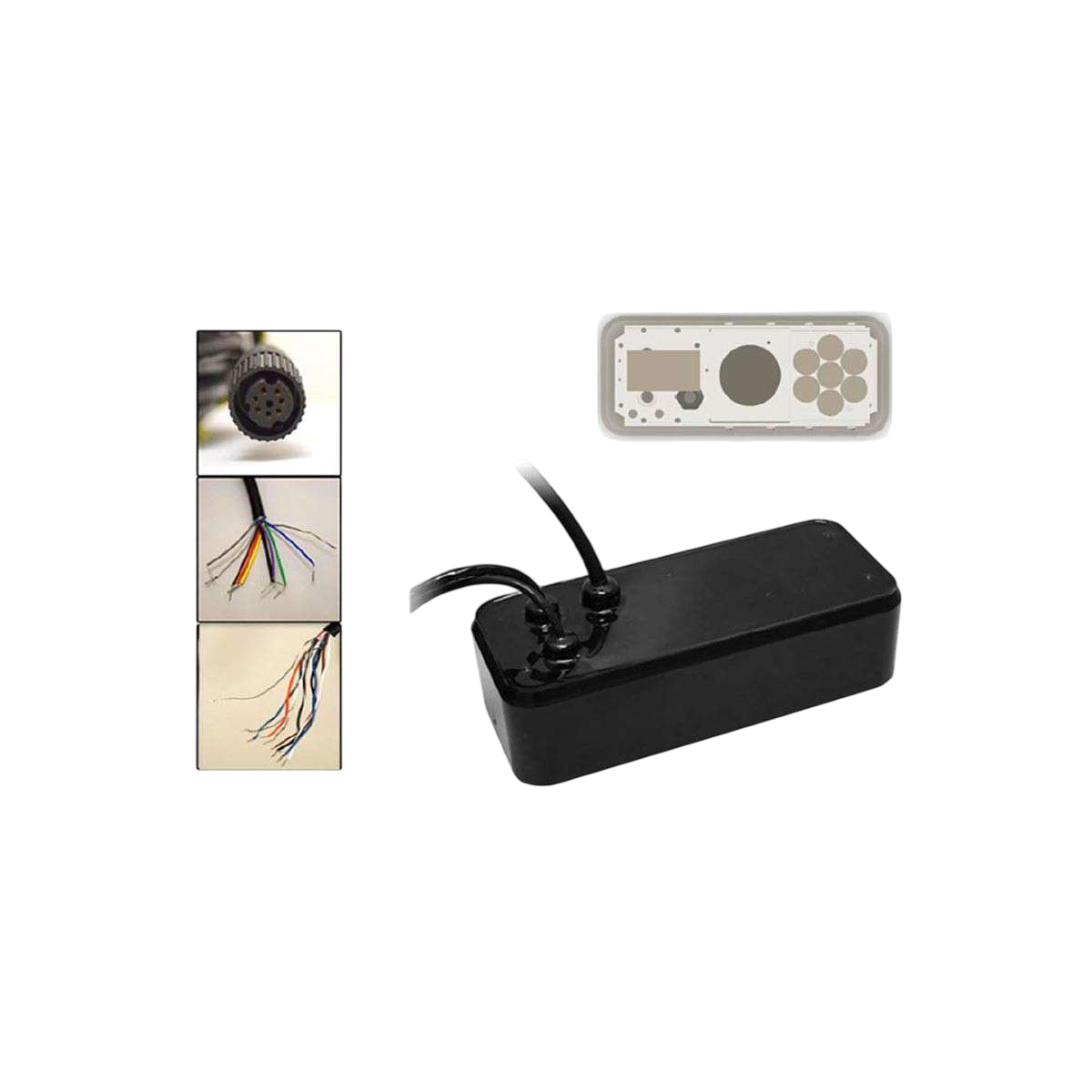

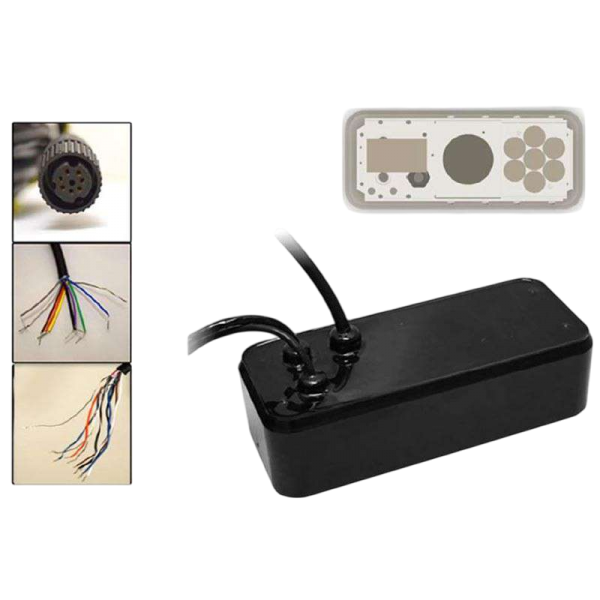

Compact combination probe PM488 - 165T / 265LH which contains the elements to work with the DFF3D with the same CHIRP elements contained in the B265LH probe.

FURUNO - PM488: THE COMBINATION PROBE FOR YOUR NAVNET SYSTEM

The PM488 combination sounder features bottom discrimination and Accu-Fish. This probe is recommended for a combined installation: DFF1-UHD CHIRP sounder module + DFF3D 3D sounder module.

The probe includes a motion detector as well as a temperature sensor.
Supplied with 12m cable harness for DFF1-UHD (7-pin connector) and cable harness for DFF3D.

MAIN POINTS :

Ceramic: 0
Power: 800W
Frequency: 165kHz

BOX CONTENTS :

1 - Probe PM488 - 165T / 265LH
2 - 12m cable
1 - PDF documentation

FREQUENCIES :

Low CHIRP: 42 kHz to 65 kHz
High CHIRP: 130 kHz to 210 kHz

Accessories

Antifouling kit Protective paint for probes

€65.90 €67.50

Last items in stock

-€1.60
