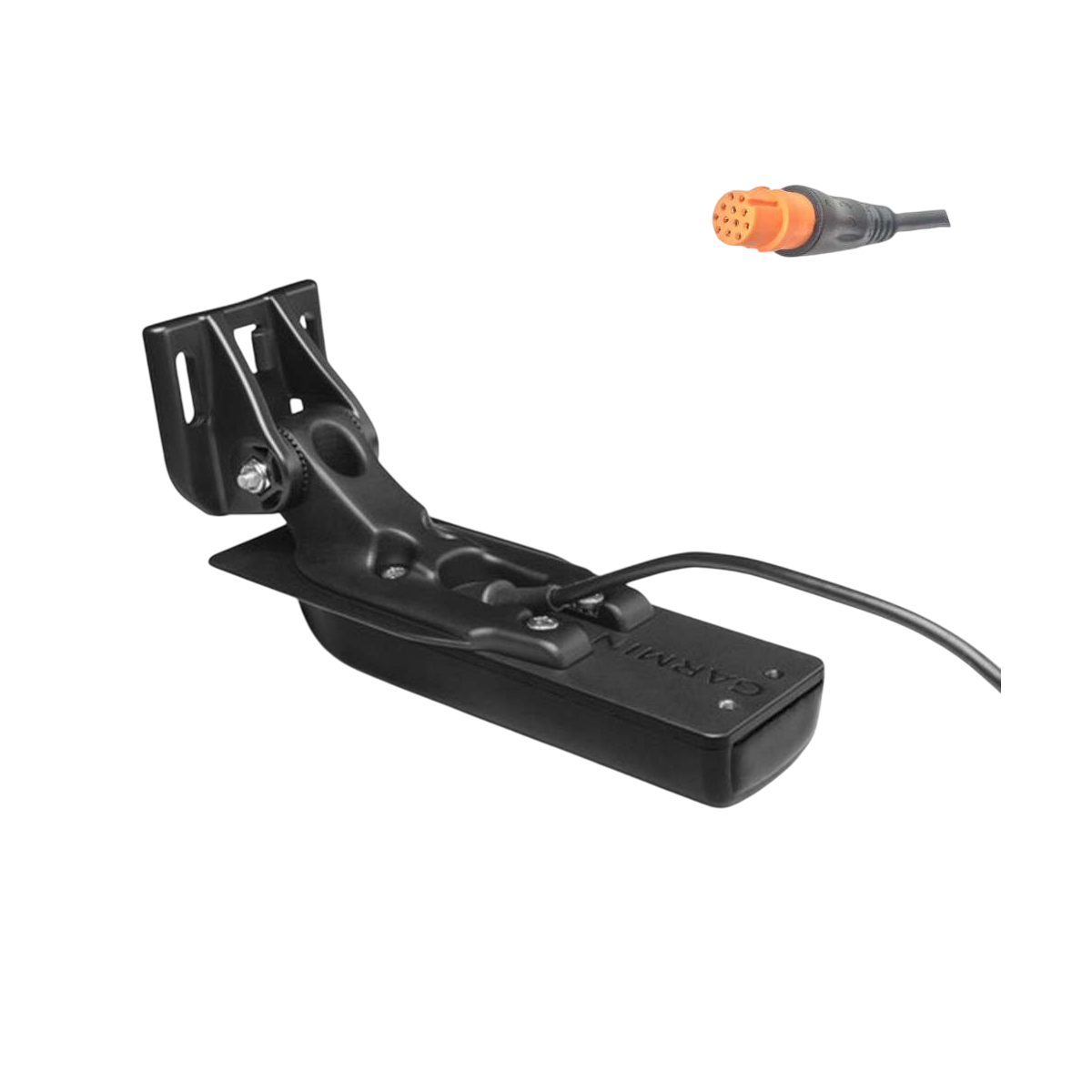

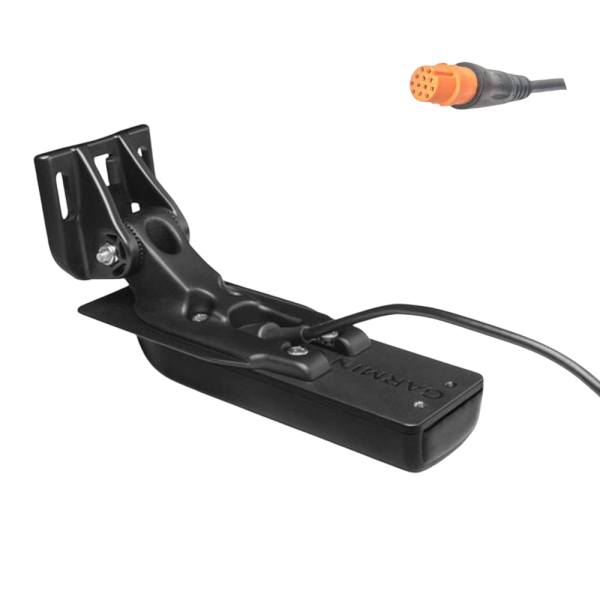

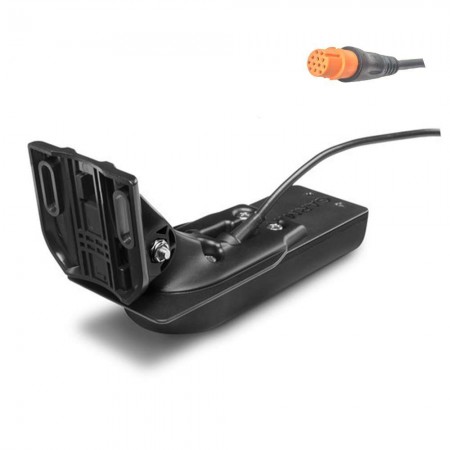

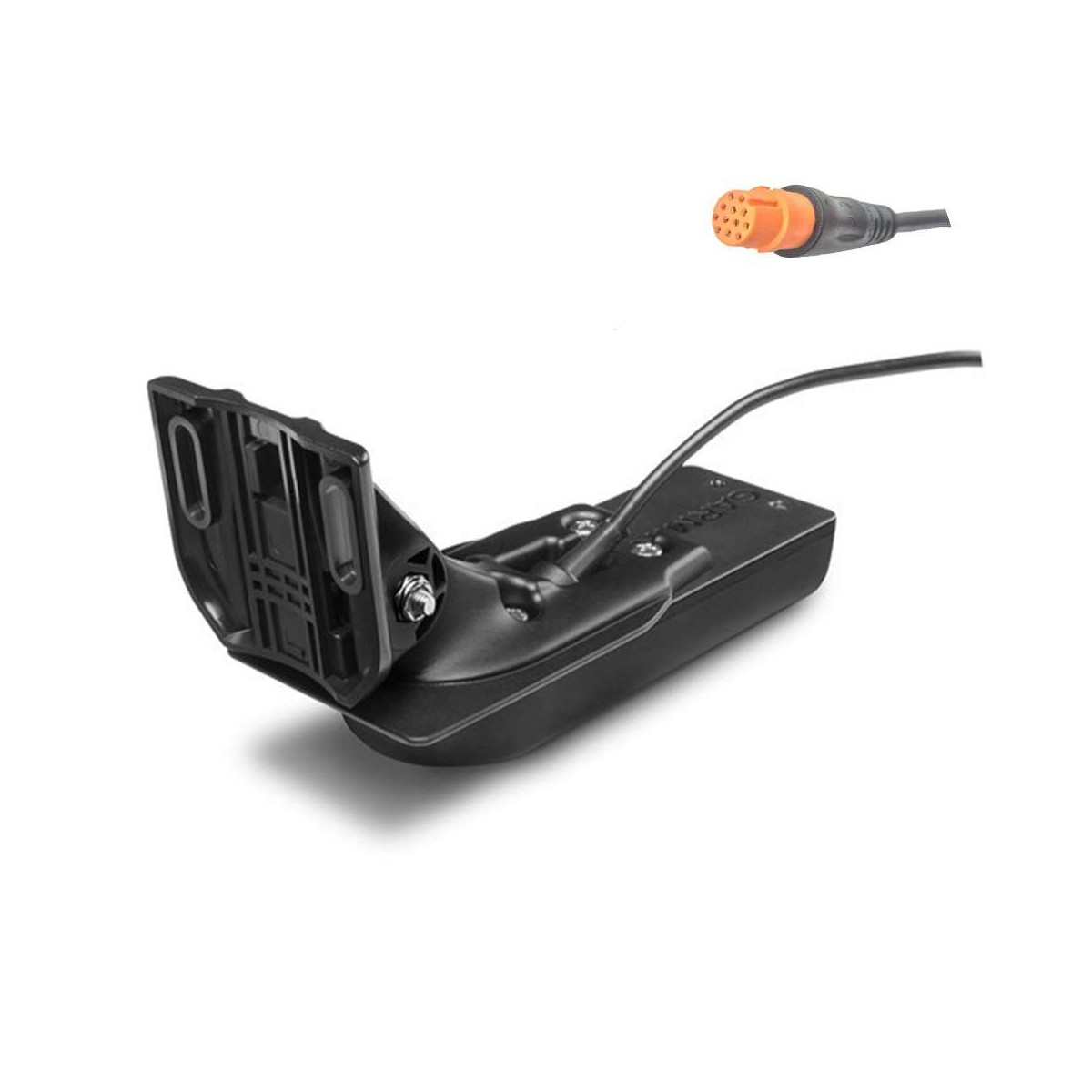

GT54UHD-TM 2D CHIRP / ClearVü UHD / SideVü UHD probe

TRADITIONAL 2D CHIRP ECHOSOUNDER

2D CHIRP is one of the most innovative technologies on the market. It offers ideal detection down to a depth of 243m (manufacturer's data), thanks to its CHIRP coverage in high-width (HW) band.

• Denser information and sharper high-resolution images
• Better target separation and sharper rendering of fish arches
• Improved bottom tracking and fish detection even at high speed

With 350W of power, the GT54UHD-TM probe uses the 2D CHIRP frequency:
- 150-240Khz frequency: depths up to 243M

CLEARVÜ CHIRP TECHNOLOGY

ClearVü Chirp technology is the most powerful on the market. It delivers clear, photo-quality images of everything that happens beneath the water's surface. Highly accurate, you'll be able to see structures, fish and submerged objects.

• See thermoclines: the boundary between water layers and oxygen-rich zones.
• Identify fish: no room for interpretation, it identifies clearly.
• Reveal structures: wrecks, vegetation, bridge piers, moorings...

With 350W of power, the GT54UHD probe uses ClearVü CHIRP frequencies:
- Frequency 455kHz: range 425-485Khz: depth up to 152M

CLEARVÜ ULTRA HIGH DEFINITION

ClearVü Ultra-High Definition technology gives you exceptional clarity of submerged structures and fish under your boat.

It delivers incredibly sharp images at depths greater than any other high-frequency scanning fishfinder on the market. All this thanks to the use of a "down" element for more power to the bottom.

With 350W of power, the GT54UHD uses ClearVü UHD frequencies:
- 800kHz frequency: 760-880Khz range: depth to 60M

SIDEVÜ CHIRP TECHNOLOGY

SideVü Chirp technology lets you see what's happening on both sides of the boat. You'll be able to spot structures and, above all, fish. It's precise, with a highly detailed , high-resolution image .

The extremely wide 180° scanning field makes it possible to locate fishing areas more quickly.

With 350W of power, the GT54UHD probe uses SideVü CHIRP frequencies:
- Frequency 455kHz: range 425-485Khz: 150M scan on each side

SIDEVÜ ULTRA HIGH DEFINITION

SideVü Ultra High Definition technology brings you clear, detailed images of structure and fish on either side of your boat's hull.

Locate fishing grounds quickly and easily thanks to simple-to-interpret images.

With 350W of power, the GT54UHD uses SideVü UHD frequencies:
- 1200kHz frequency: 1080-1230Khz range: 38M scan on each side
