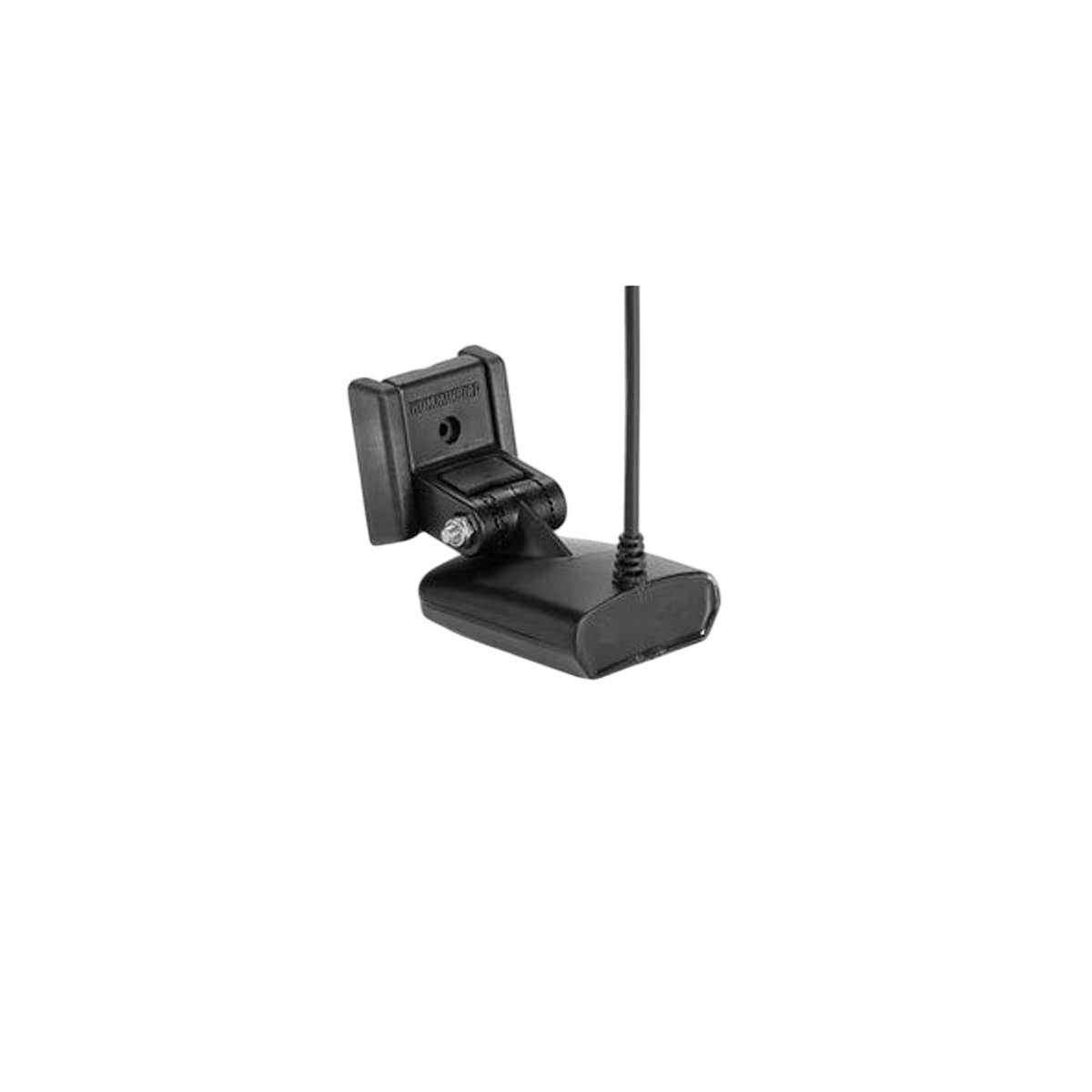

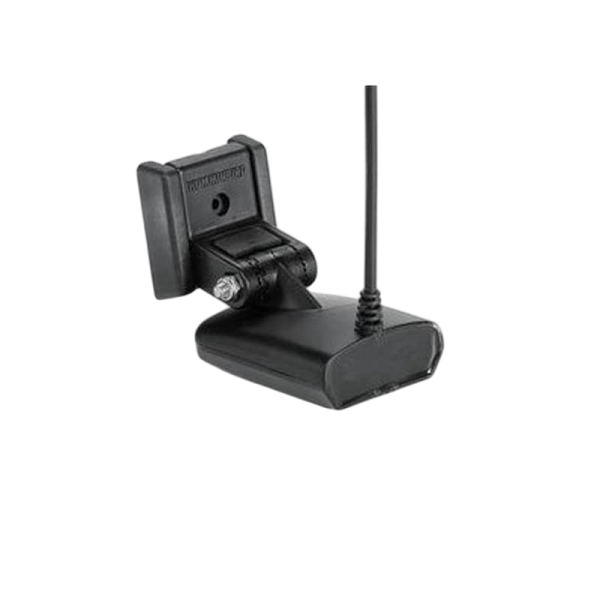

SH-A105T Rear Panel CHIRP Dual Spectrum / Side Imaging Probe

Name: SH-A105T Rear Panel CHIRP Dual Spectrum / Side Imaging Probe
Brand: Humminbird

The plastic transom probe supports 2D Dual Spectrum, Down Imaging and Side Imaging technologies for the Helix G3 and G4 range. Choose images of exceptional quality and clarity of the water layer.

HUMMINBIRD- SH-A105T - Si-XNT-9-HW-SI-T - SIDE IMAGING

The Humminbird SH-A105T is a technological jewel. It delivers images of incomparable quality and clarity.
It uses Dual Spectrum CHIRP, Down Imaging and Side Imaging technologies, guaranteeing you the best performance.


	DUAL SPECTRUM CHIRP TECHNOLOGY Dual Spectrum Chirp technology means you'll never lose sight of your lures again, and you'll be able to locate fish quickly thanks to the wide beam (140-200 Hkz). Optimize detail and bottom reading with the narrow beam operating at 180-240HKz. Combine the two beams to make the most of both frequency ranges.

DOWN IMAGING Down Imaging technology will make the user's seafloor prospection task considerably easier, since it offers images of a quality never before encountered. Down Imaging frequency: 455 khz (405-535 khz) to a maximum depth of 120 m

	SIDE IMAGING Side Imaging technology gives you a true photographic image of the seabed. Side Imaging technology uses two wide beams to considerably improve seabed prospection at a distance of 120 meters on either side of the boat. Side Imaging frequency: 455 kHz (440-500 kHz) with a 120m side scan on each side of the boat.
