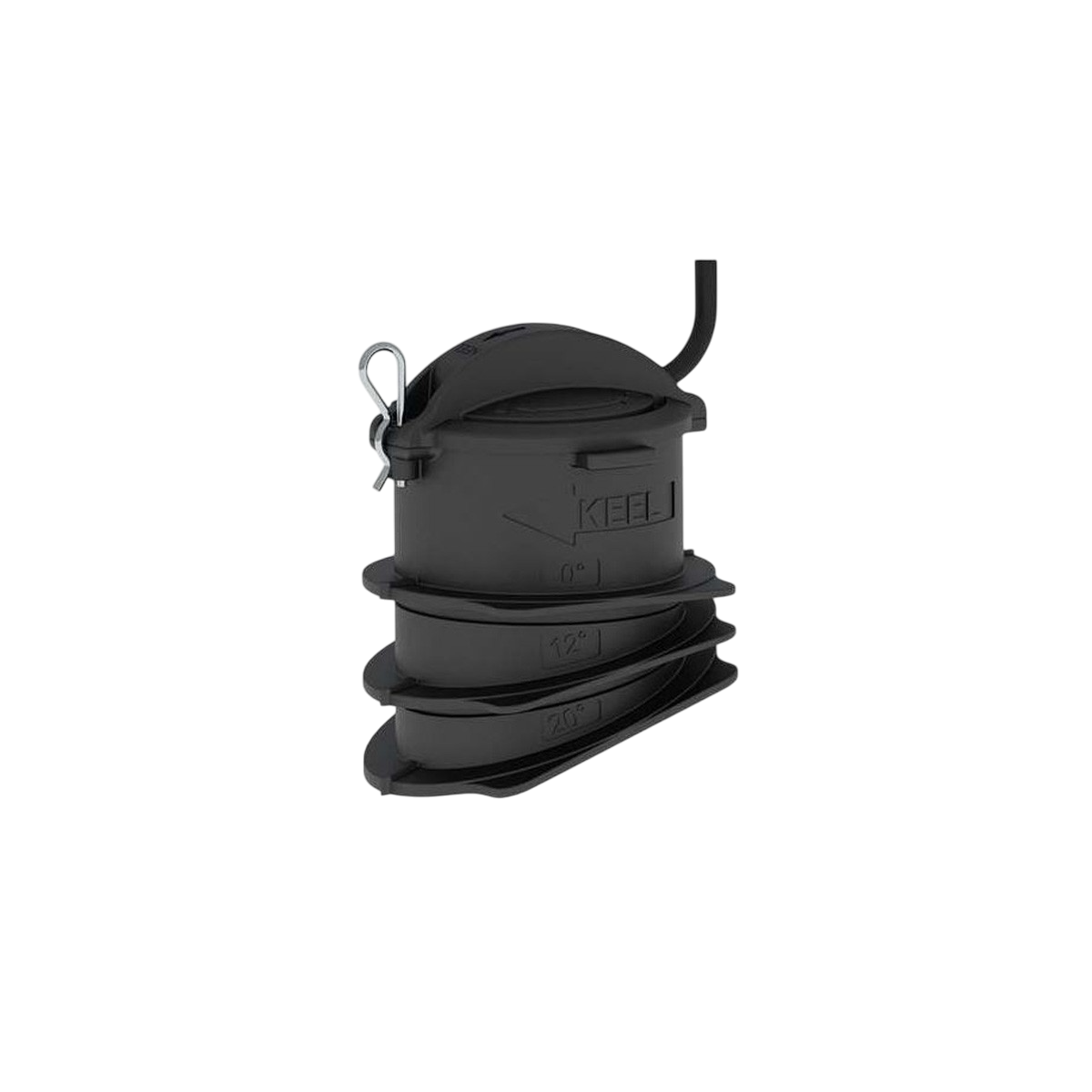

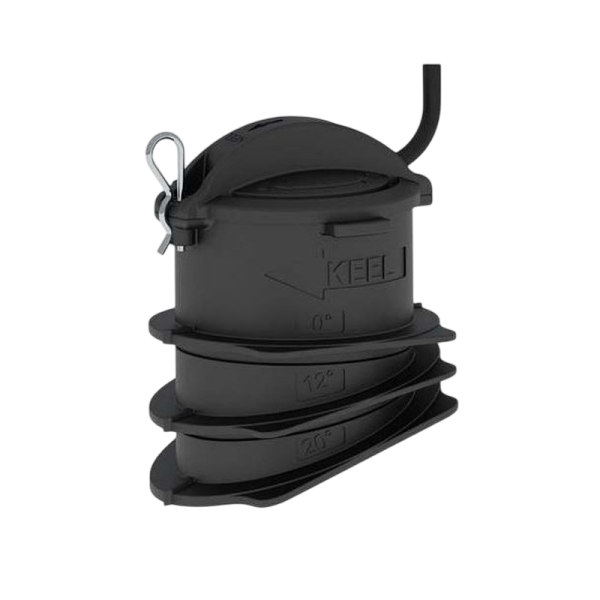

CPT-S High CHIRP bonding probe

CPT-S HIGH CHIRP inboard bonding probe with 0/12/20° conical beam. Easy to install on non-laminated fiberglass hulls, this inboard transducer is ideal for cruising sailboats and small motorboats. The innovative design of the transducer tube housing allows the CPT-S to be mounted in hulls with an inclination of 0 to 25 degrees.

Features :

• Frequency: CHIRP High from 170 to 230khz
• Beam width: 25
• Power: 600W
• Cable 7.5m

Compatibility :

• Direct connection to Element S, Axiom DV and CP100
• Connection to Element HV with A80559 cable
• Connection to Axiom Pro-S, Axiom RV, Axiom+ RV, Axiom Pro RVX and RVX1000 with cable A80490
