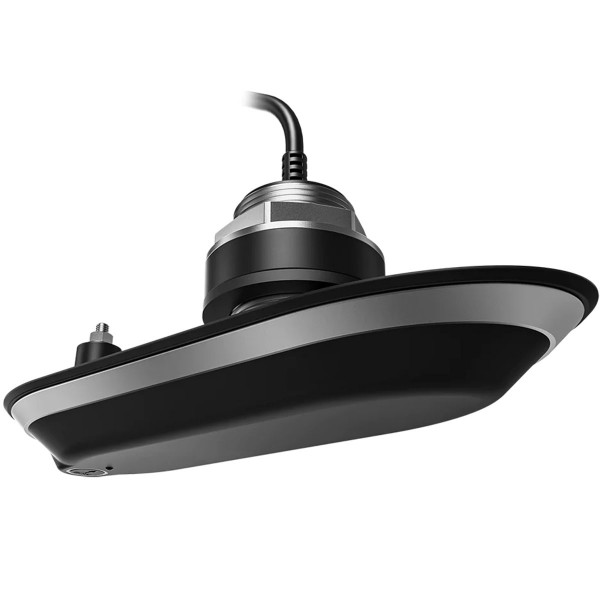

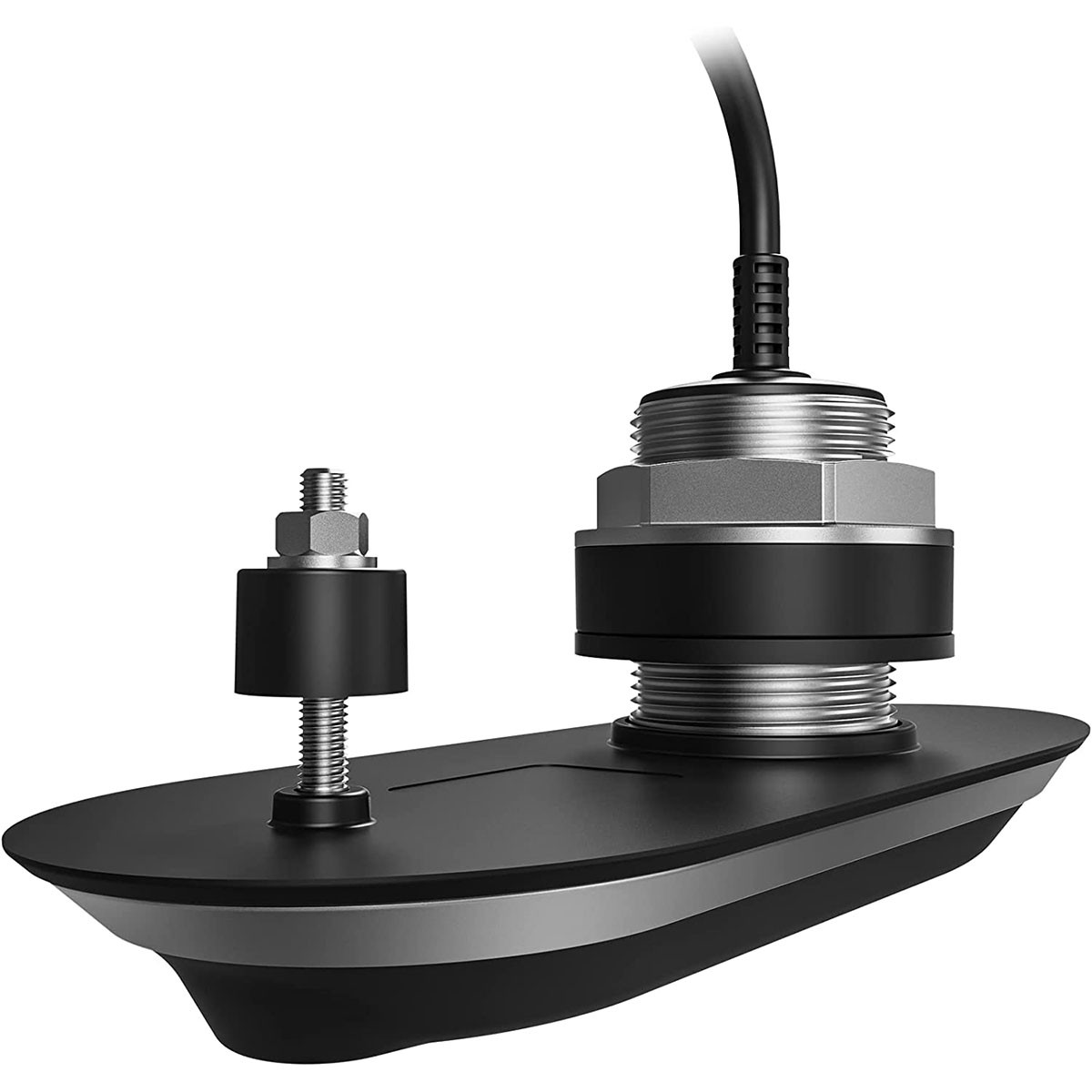

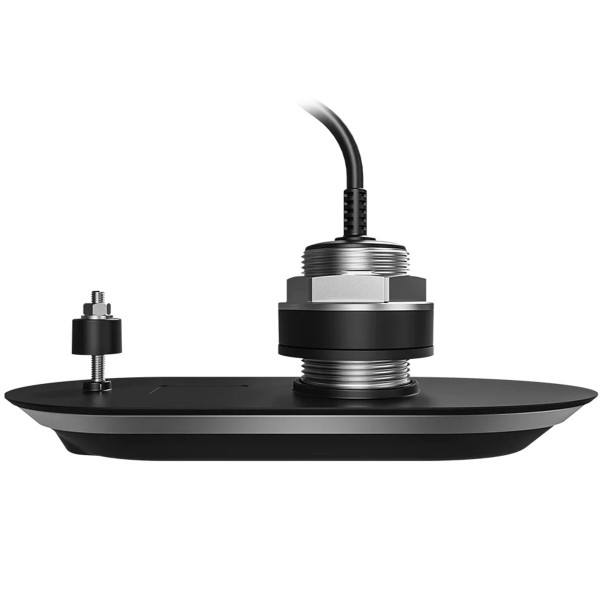

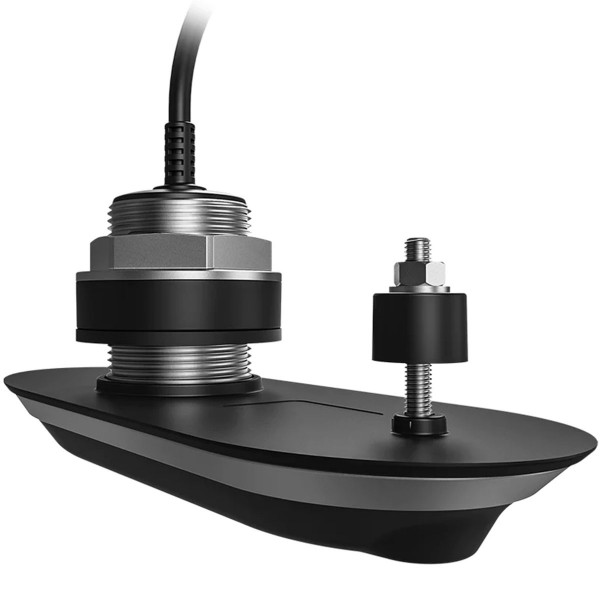

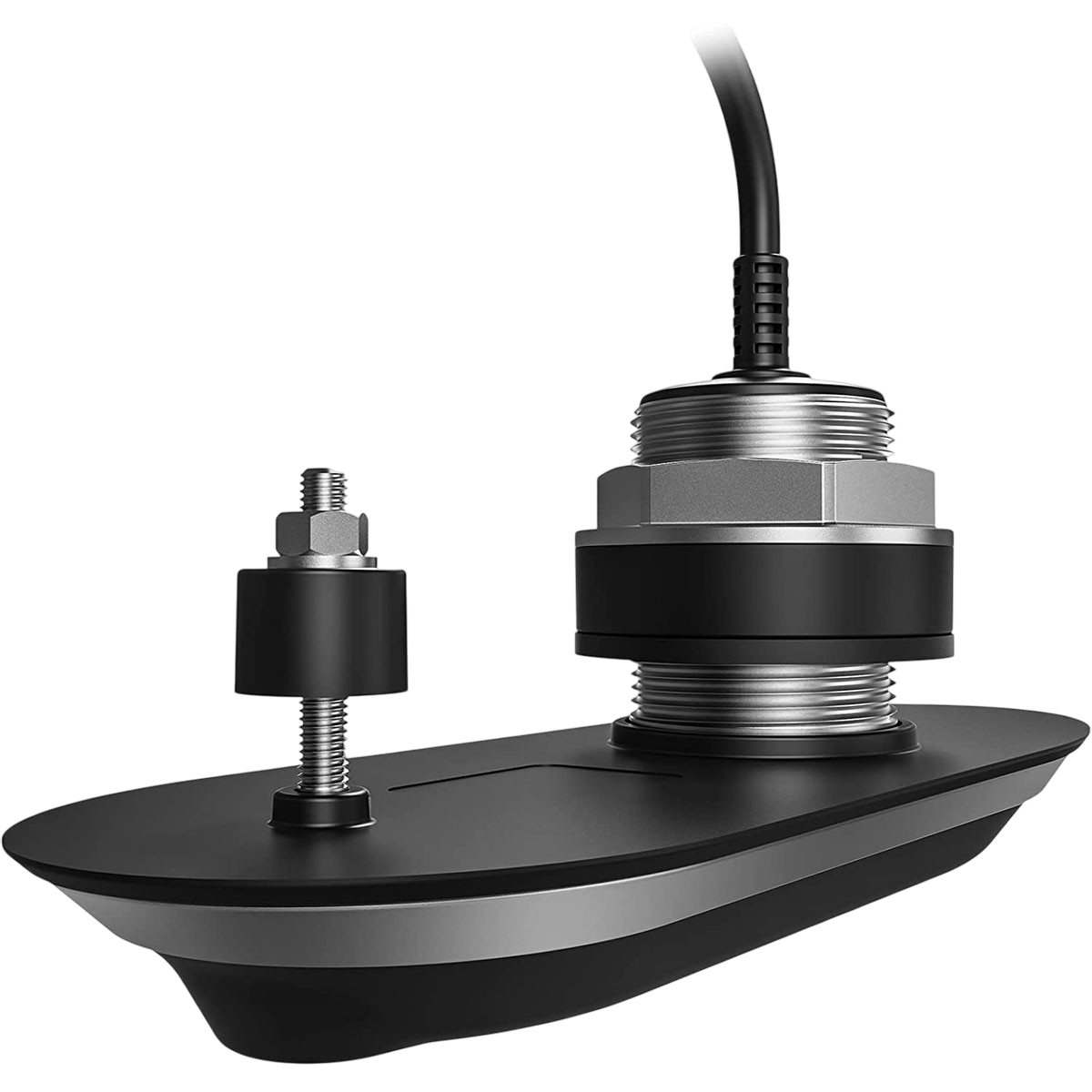

RealVision RV-400 stainless steel through-beam 0° probe

Raymarine - RealVision RV-400 stainless steel through-hull transducer 0° - Sharp images

The RV-400 stainless steel transducer from Raymarine is designed for inboard and outboard motorboats. This Raymarine RealVision RV-400 probe will help you identify structures and locate fish with the life-like clarity of RealVision 3D sonar.

The Raymarine RV-400 is a wide-spectrum, 4-channel CHIRP transducer featuring DownVision, SideVision, RealVision3D sonar, as well as a tapered CHIRP fish targeting device. The transducer is also equipped with a Heading and Trim Reference System (AHRS) that stabilizes sonar imagery by automatically compensating for vessel motion for crystal-clear images, even in waves, swells and when maneuvering. The RV-400 probe also features a sensor for fast, accurate measurement of water temperature.

The RV-400 probe from Raymarine features a sturdy stainless steel through-hull structure suitable for fiberglass, wood or metal hulls. It features a 0° angle and offset specially designed for flat-bottomed boats. The slim-profile model glides easily through the water without causing drag or cavitation.

Last but not least, Raymarine ' s RV-400 transducer is a "near-flush" type, ideal for towed boats. The absence of a profiling block to cut out makes installation very simple.

Compatibility :

• RealVision 3D sounder for multifunction displays Raymarine Axiom
• Compatible with all Axiom, Axiom+ and Axiom PRO multifunction displays with integrated 3D sounder
• Sounder probes for multifunction displays with integrated RealVision 3D sounder

Box contents :

• RV-400 all-in-one stainless steel through-hull transducer with 8-meter cable
• Anti-rotation bolt kit
• Transducer locking nut
• Installation instructions
