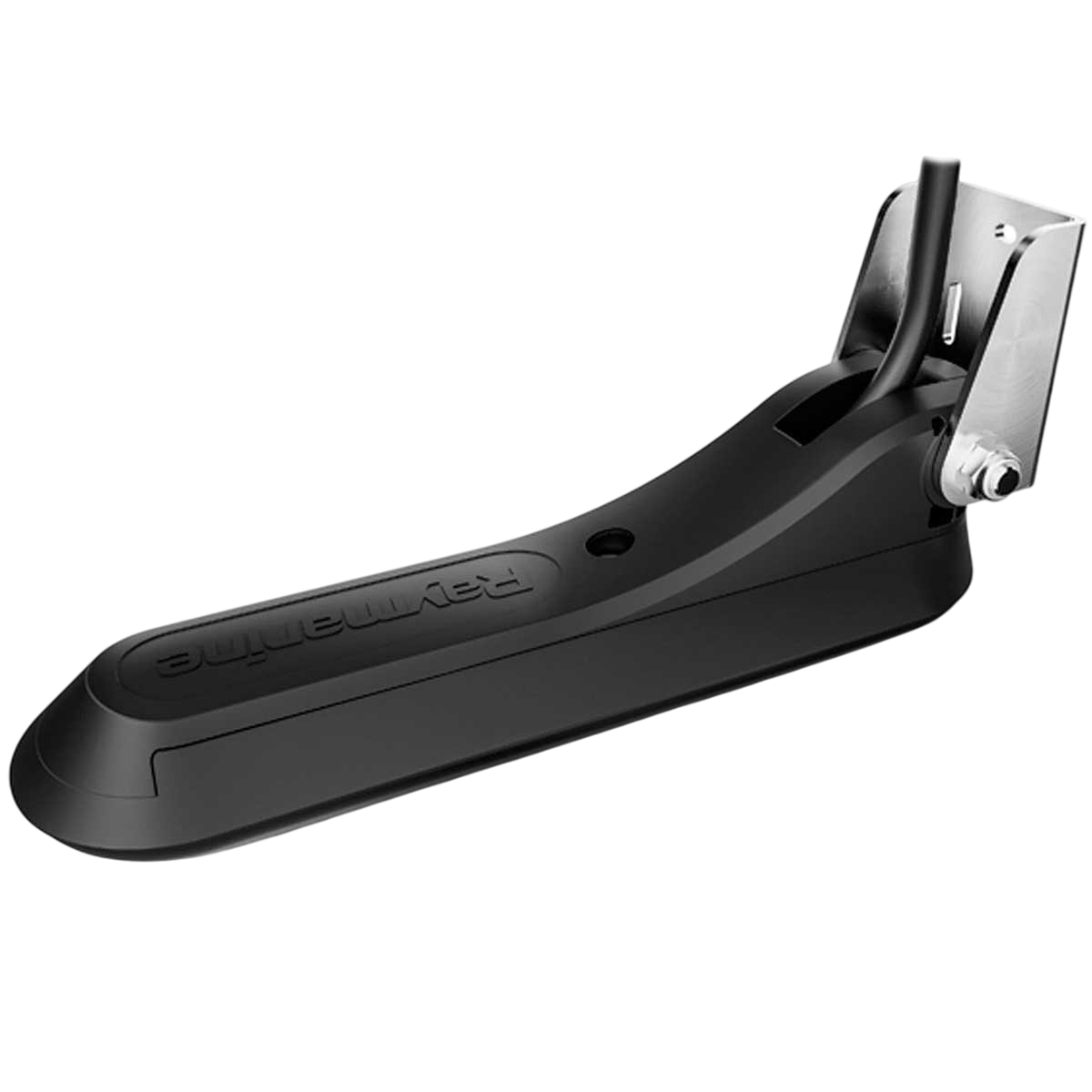

RV-100 CHIRP transom sensor

RAYMARINE - RV-100 - The high-definition probe from Raymarine

The RV-100 all-in-one transom-mounted probe from Raymarine lets you easily identify structures and locate fish with the same clarity as RealVision 3D sonar.

The RV-100 transducer is a wide-spectrum, 4-channel CHIRP transducer featuring DownVision™, SideVision™, RealVision 3D™ sonar and high-frequency CHIRP fish targeting inside. The transducer is equipped with a Heading and Altitude Reference System (AHRS) that stabilizes sonar imagery by automatically compensating for vessel movements.

You'll get crystal-clear images in waves, swells and maneuvers. The RV-100 transducer also features a sensor for fast, accurate measurement of water temperature.

The transducer is mounted on a sturdy, seawater-resistant stainless steel bracket , to prevent damage caused by impact, e.g. with rocks. Transom transducer angle 0 - 90°.

The Raymarine RV-100 transducer is supplied with an 8-meter connection cable, a mounting bracket and the necessary fasteners.

Maximum depths :

• RealVision 3D: 90 m
• DownVision: 180 m
• Port + starboard: 90 m
• Cone: 275 m

Angle :

• RealVision 3D: 180 °
• DownVision 60 °
• Cone: 25
