CPT-S CHIRP transom probe

Name: CPT-S CHIRP transom probe
Brand: Raymarine

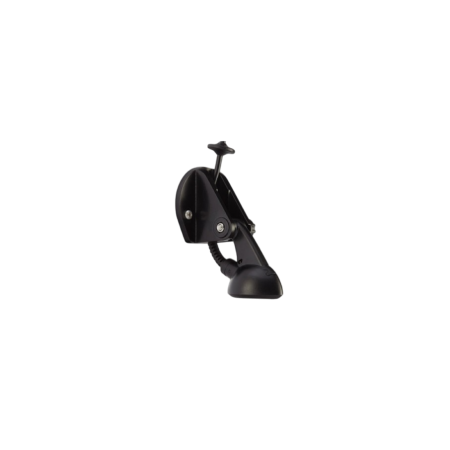

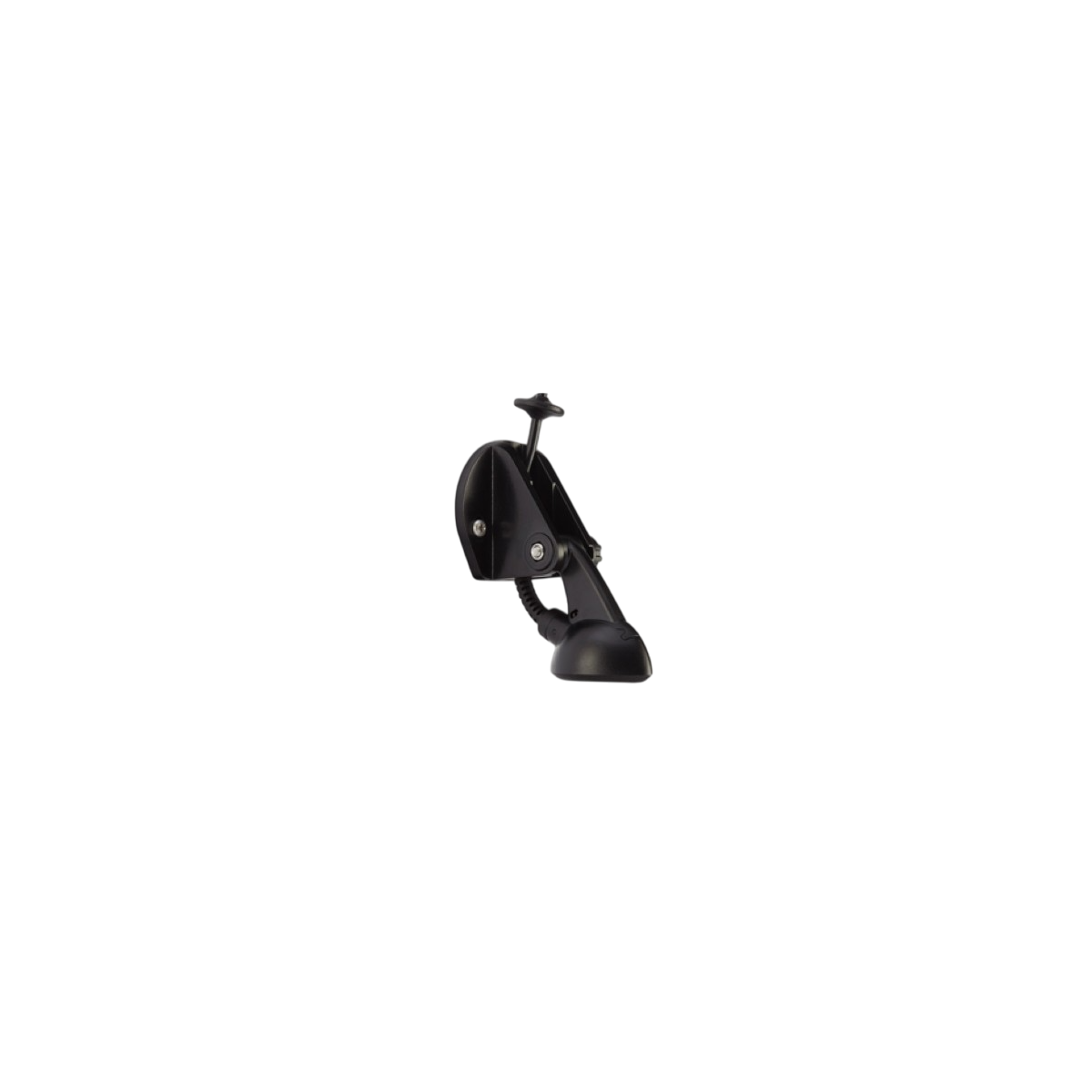

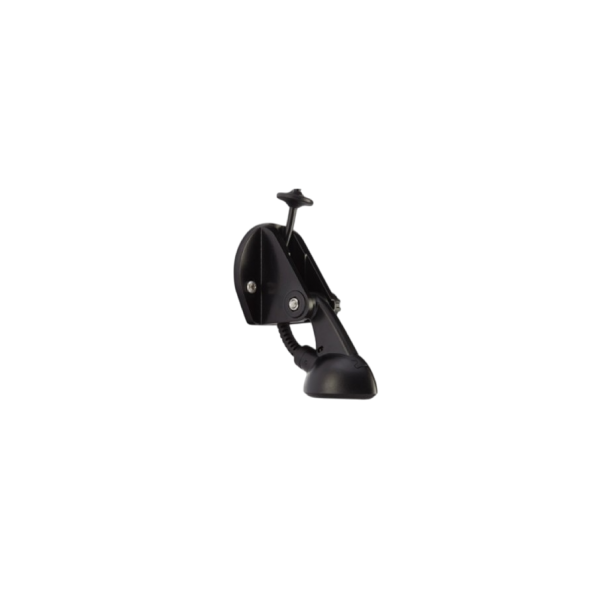

The Raymarine CPT-S CHIRP transom probe (ref. E70342) is a conical beam probe CHIRP 25°, with integrated temperature sensor and 10 m cable. Compatible with CP100, Element S, Axiom, Axiom Pro... (via additional adapter). Easy transom-mounting, ideal for fishing and sailing.

RAYMARINE - CPT PROBE-S TRANSOM - PRECISE HD DETECTION

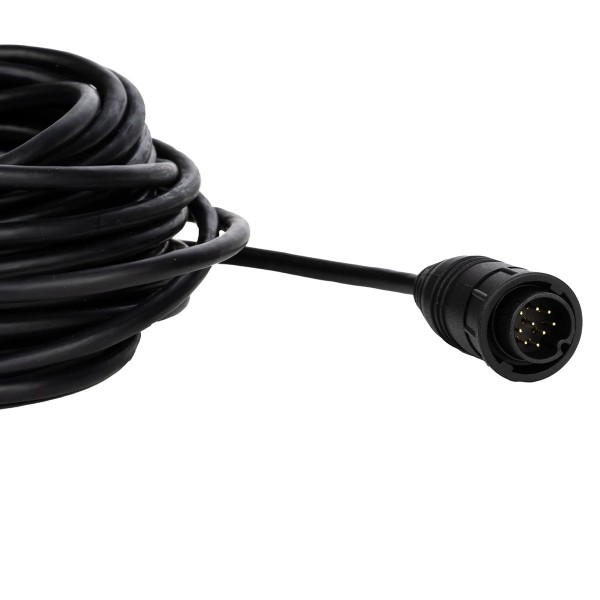

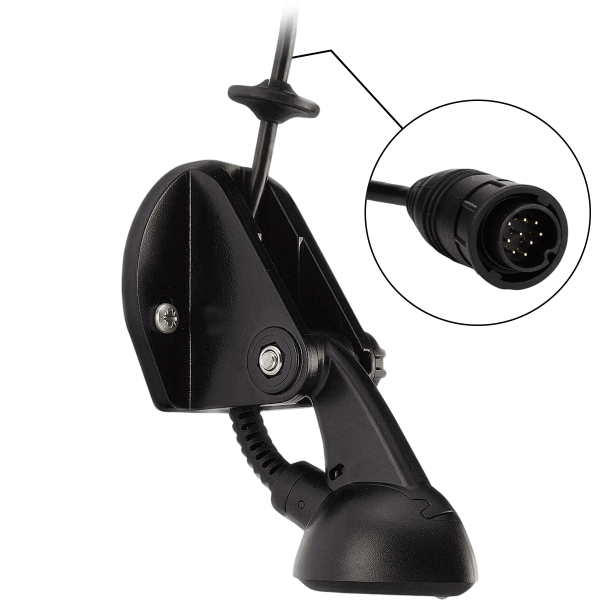

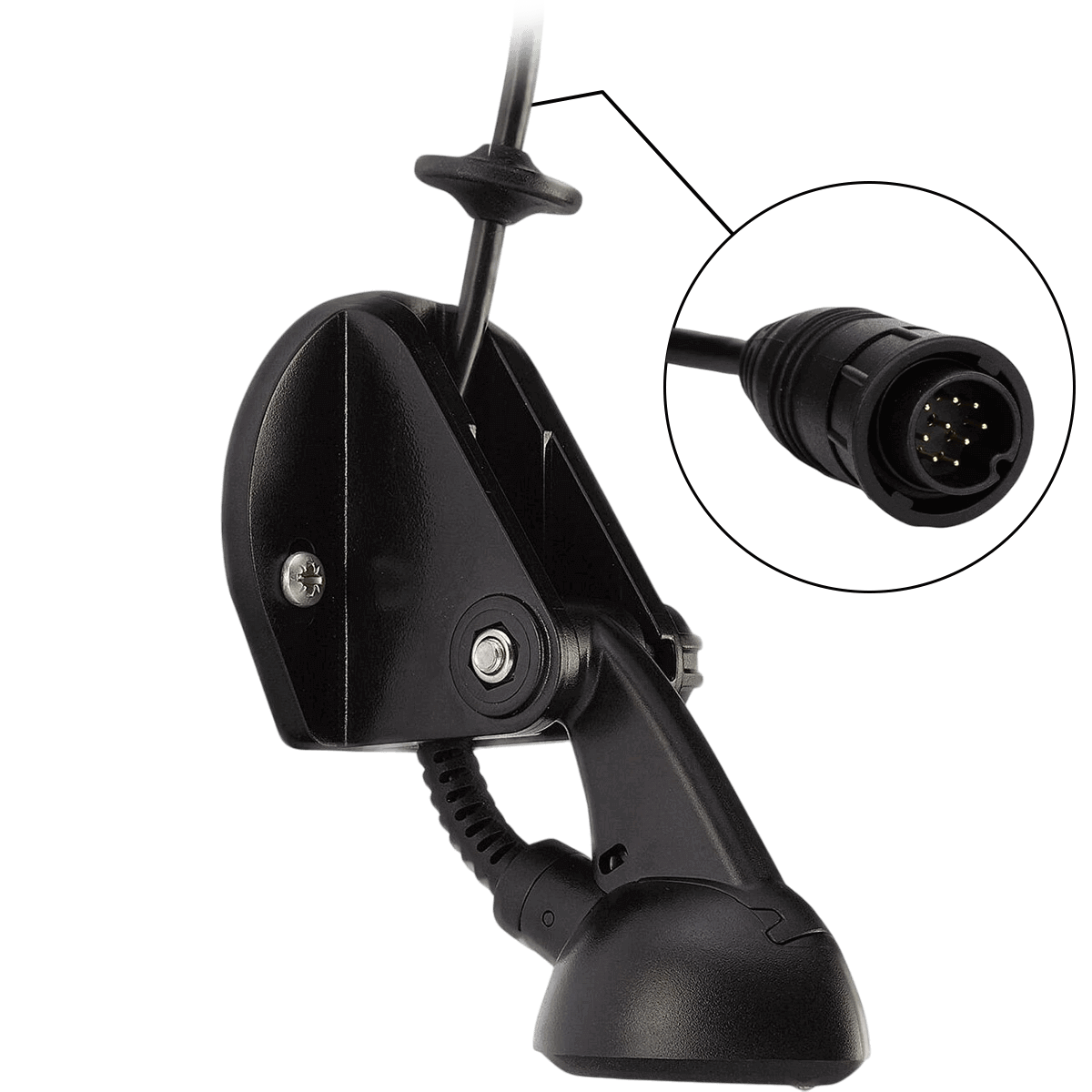

The Raymarine CPT-S probe (ref. E70342) is a CHIRP probe with 9-pin connector, designed for transom mounting. Compact and easy to install, it offers reliable sonar coverage at depths of up to 274 m. Ideal for demanding boaters and fishermen using the DownVision CP100 module or compatible Axiom/Element displays.

With its integrated temperature sensor and 10 m cable, this lightweight plastic probe ensures stable sonar return even at sustained speed. A preferred choice for demanding marine environments.

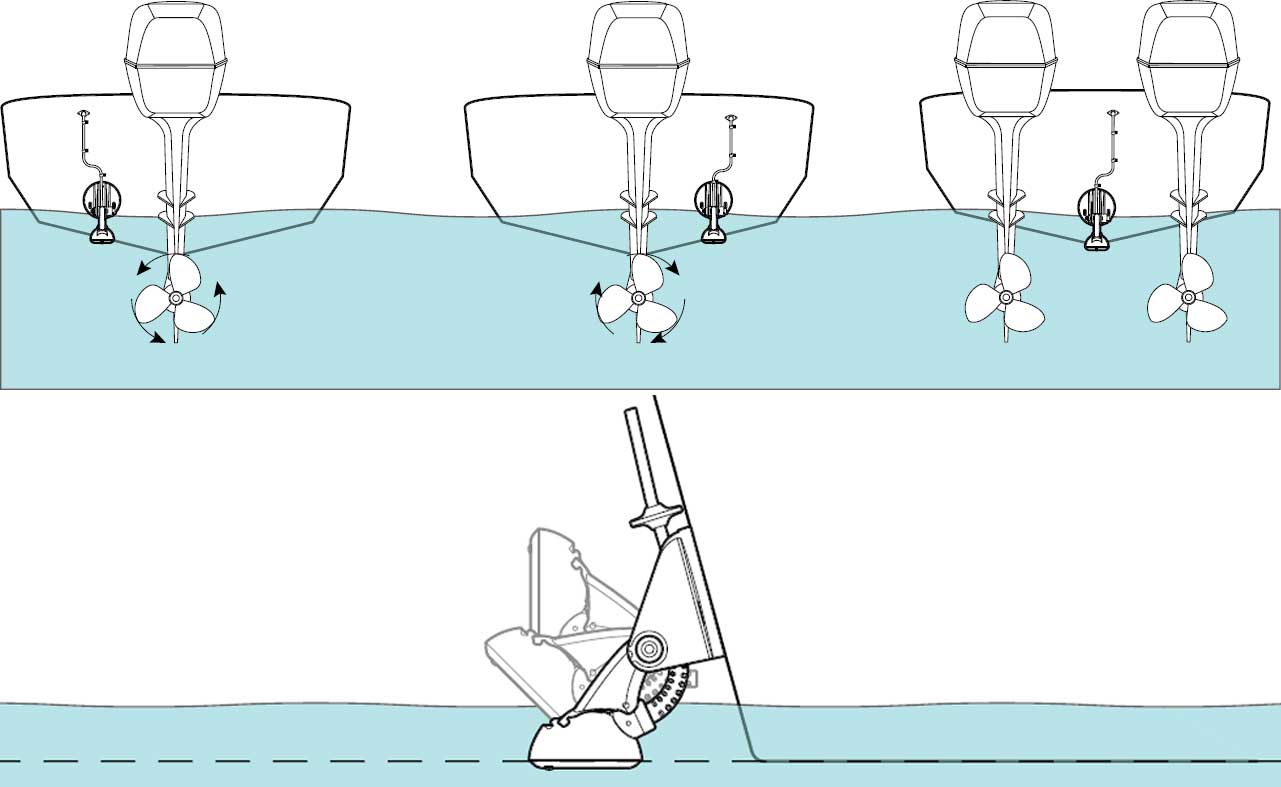

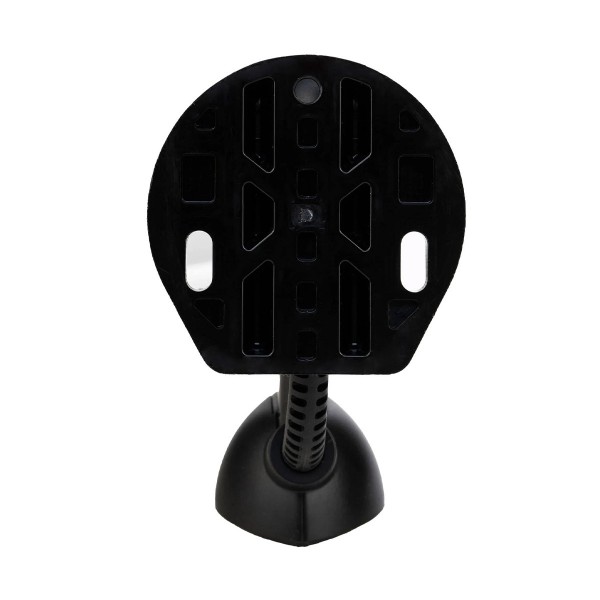

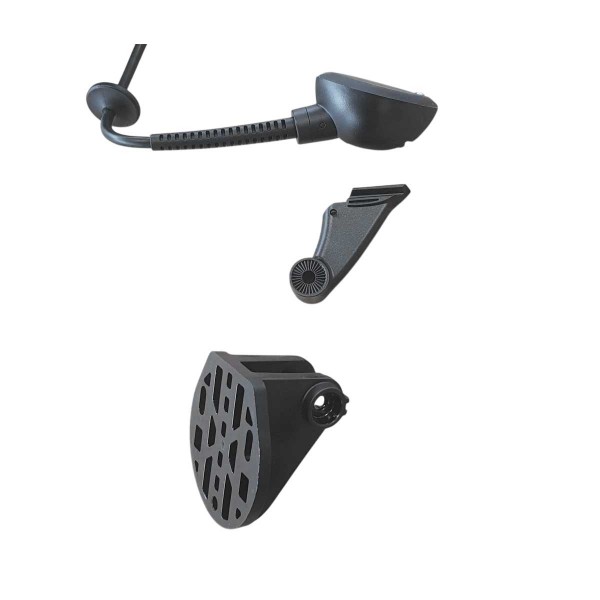

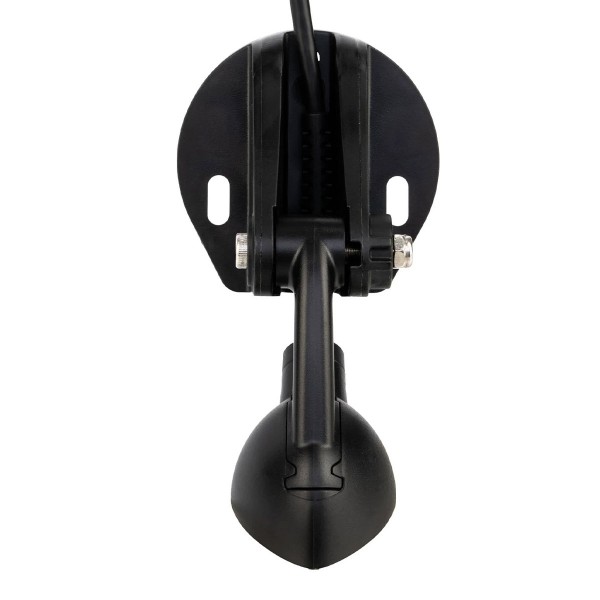

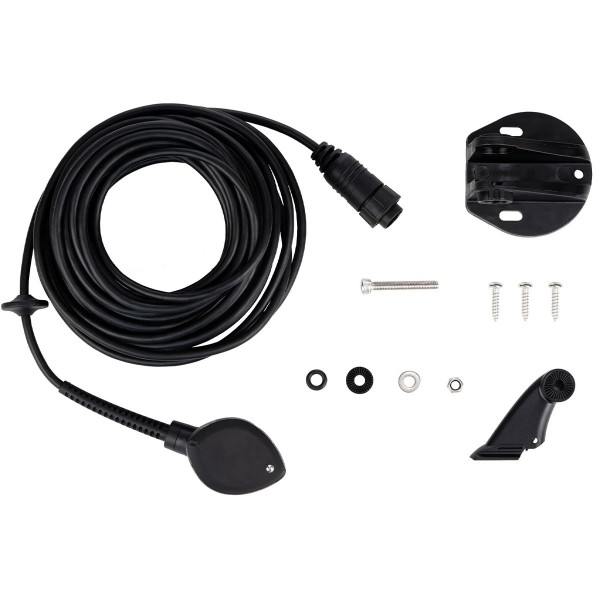

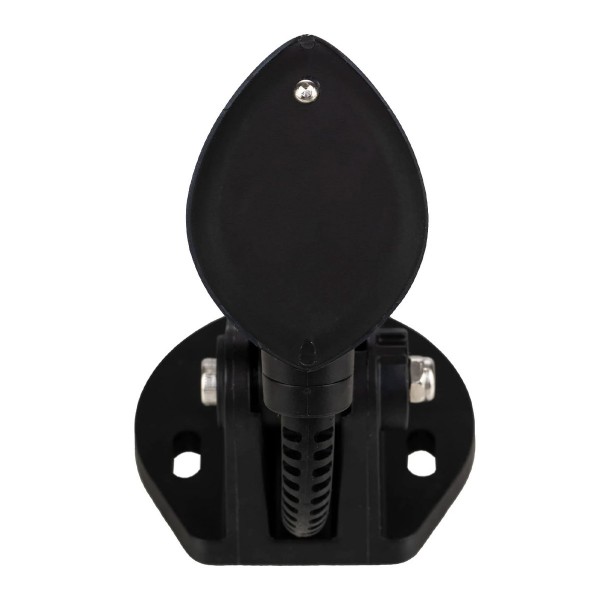

	EASY TRANSOM MOUNTING The CPT-S transducer is supplied with a sturdy mounting bracket and everything needed for rapid installation. It mounts directly onto the transom, and can be adjusted in height and inclination for optimum performance. Bracket mounting included Adjustable position Its compact size makes it ideal even for small hulls or outboard motors-.

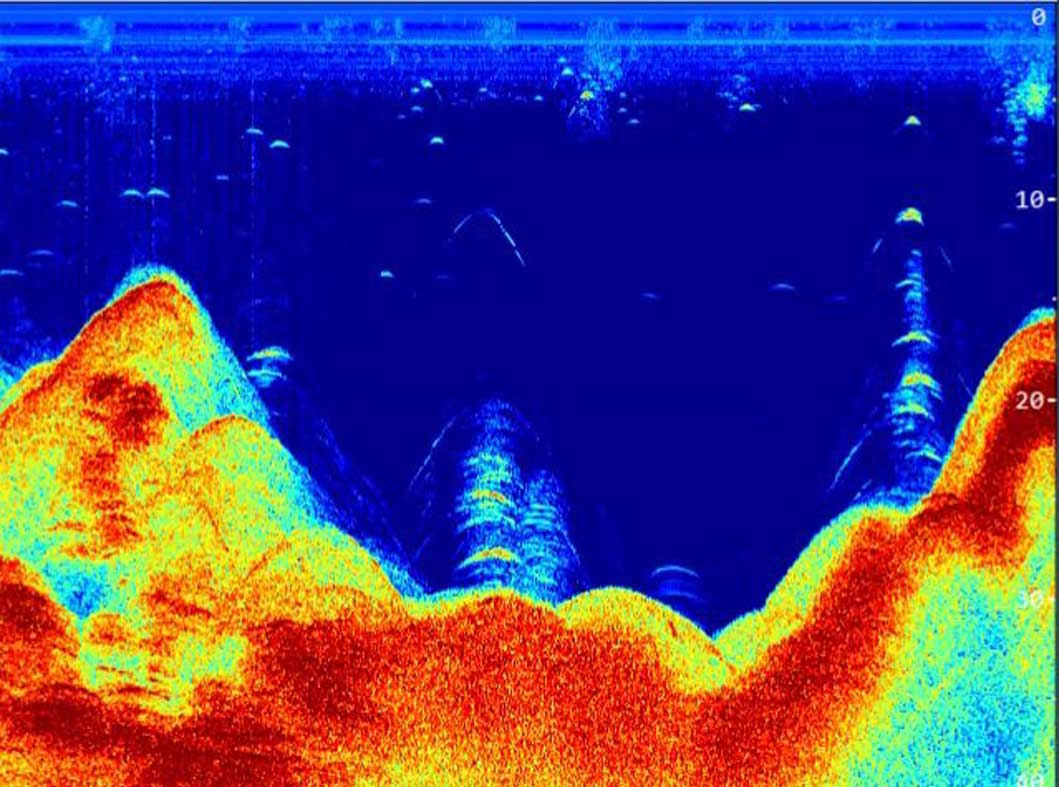

CHIRP TECHNOLOGY FOR CLEAR VISION The CHIRP 25° conical beam provides precise coverage of the water column. Adapted to CP100 modules or Axiom/Element displays, this technology improves target discrimination, even at cruising speed. 25° conical beam CHIRP Range up to 274 m depending on conditions Integrated temperature sensor Compatible with Axiom and Element (additional cable required) A reliable solution for identifying fish and structures under-marine conditions.

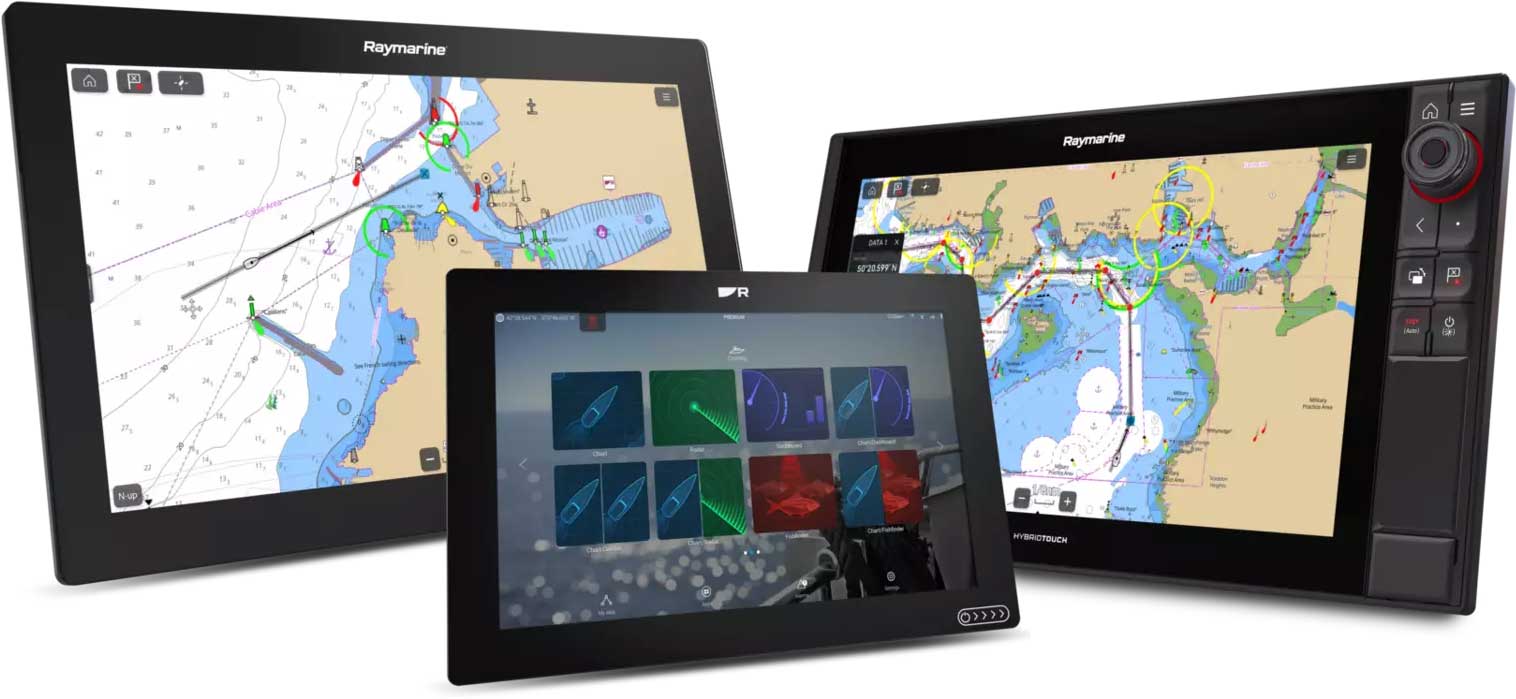

	Device compatibility Raymarine The CPT-S probe is designed to work optimally with a wide range of equipment Raymarine. CPT-S probes are recommended for use with Axiom Pro S and Axiom 2 Pro S chartplotters. It is also compatible with CP100 sounder modules and multifunction displays from the Element S and Element HV and DV ranges. Axiom RV, RVX... CP100 modules Axiom 7/9/12 RV and DV - via adapter cable A80490 Axiom 9/12/16 Pro S and RVX / Axiom 2 Pro S - via adapter cable A80490 Element S - directly on the device Element HV - via adapter cable A80559 (Note: only supports the CHIRP haut sounder. The HyperVision sounder requires an HV series probe) Check your device's compatibility via the documentation Raymarine
