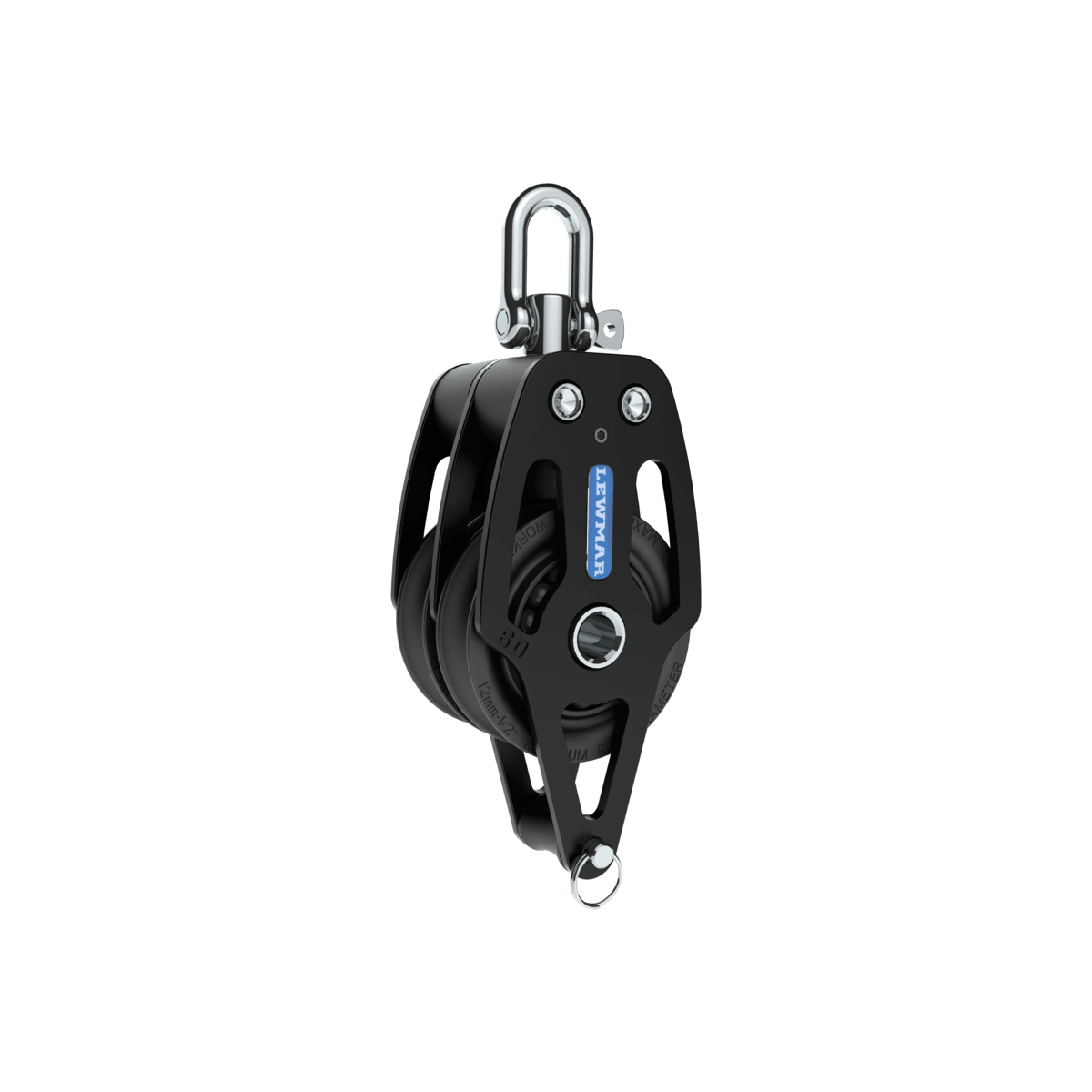

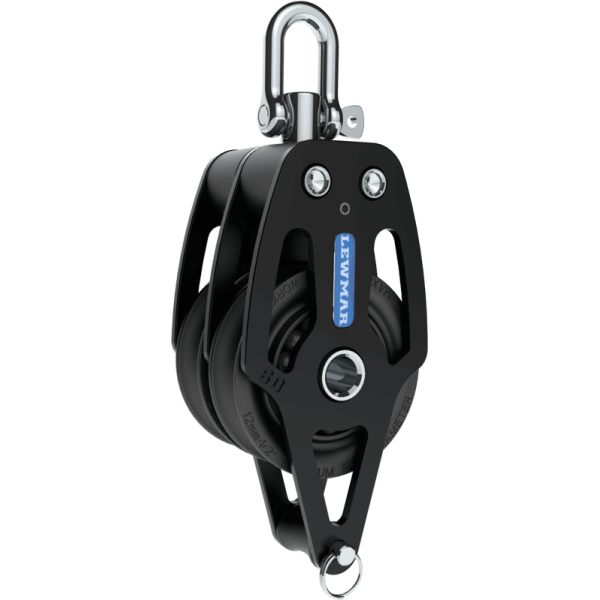

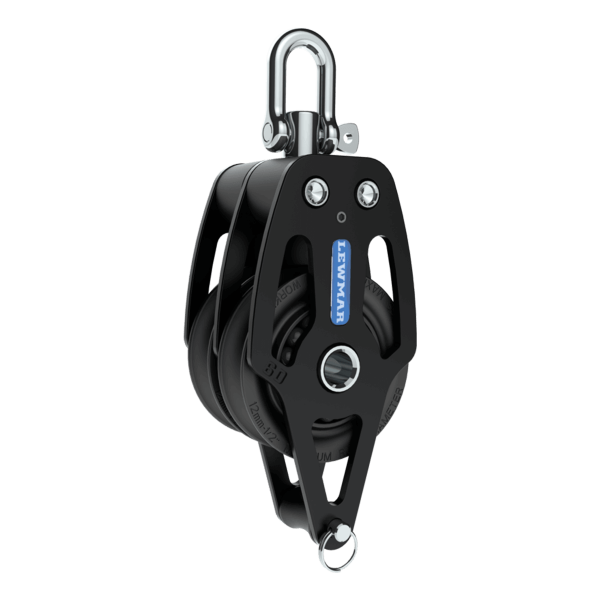

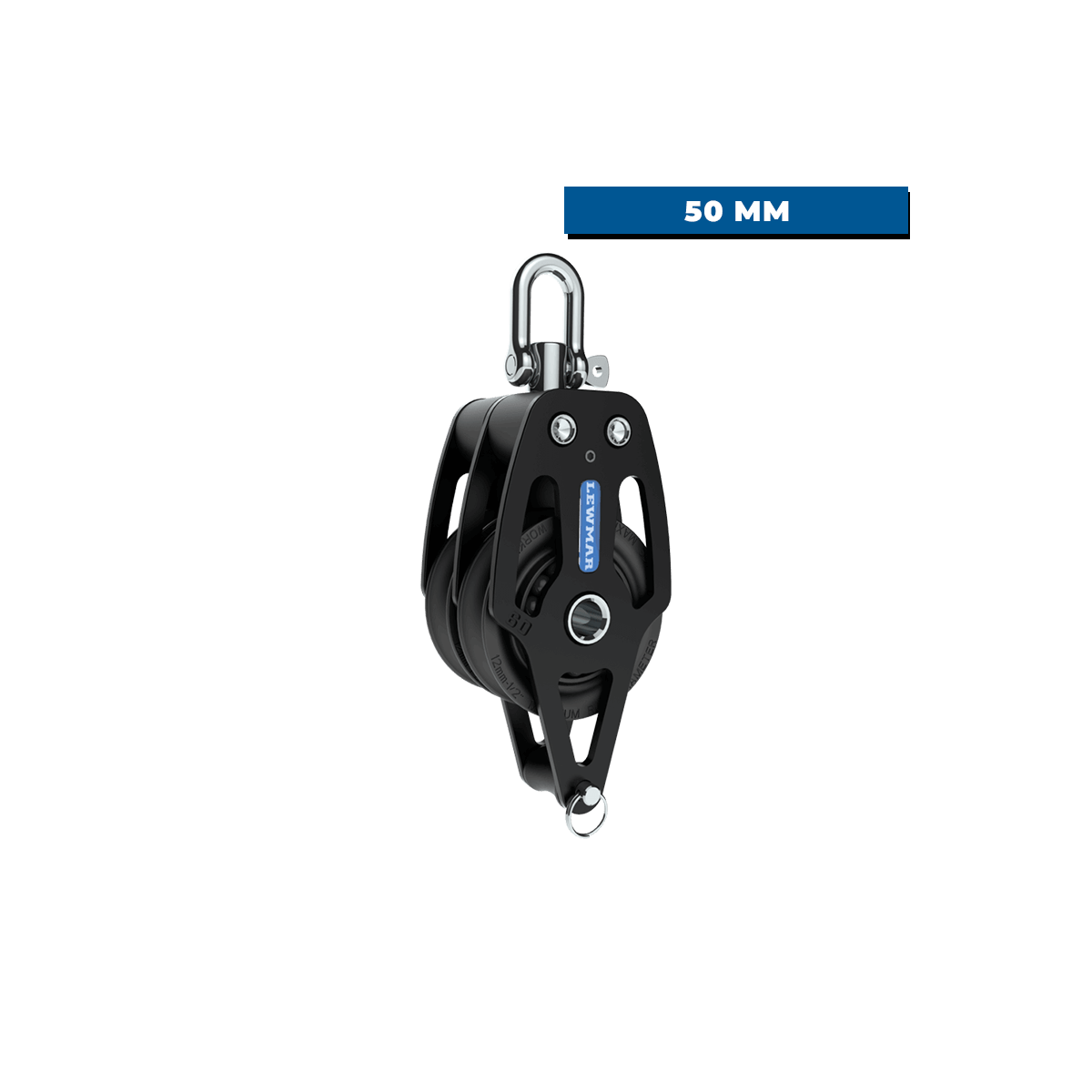

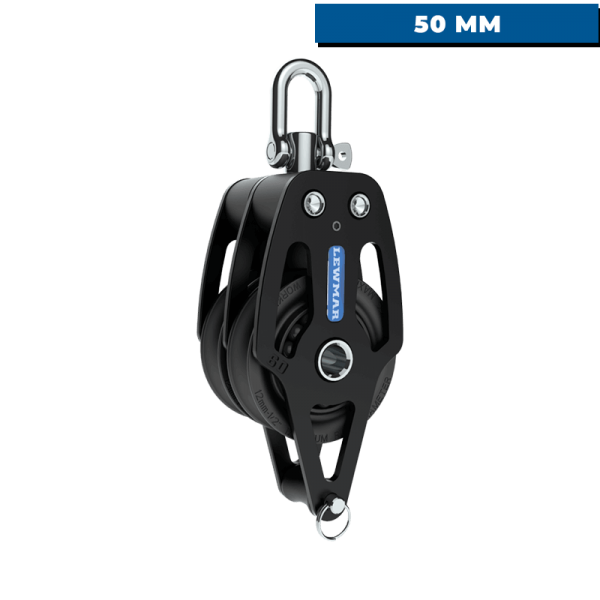

HTX Double pulley and ring - 50 mm
Ref.
29195005
The HTX 50 mm double sheave and ring Lewmar: a sturdy, high-performance rigging sheave, designed for frequent adjustment and heavy loads, with only 232 g on the scale. Aluminum flanges, central ring bearing and lateral balls for excellent performance, up to 800 kg working load.
29195005
Data sheet
- Product type
- poulie
HTX Double pulley and ring - 50 mm
The new HTX Lewmar range of fittings is the result of years of design and manufacturing experience, combined with close collaboration with boatyards, naval architects and sailors. Building on the design of the Racing range, HTX pulleys are simply constructed using high-quality materials, ensuring enhanced reliability. Ideal for frequently-adjusted systems or heavy loads using modern, reduced-diameter ropes.
Sturdy aluminum cheeks
Central ring bearing for efficiency at high loads
Lateral thrust ball bearings
Swivel design inspired by the Lewmar Racing range, with grub screw locking system
HTX pulleys outperform other brands using similar materials thanks to machining of the bearing surface.
The performance of HTX pulleys increases above 450 kg, as the acetal sheaves become self-lubricating at this point.
Weight: 232 g
Working load: 800 Kg
