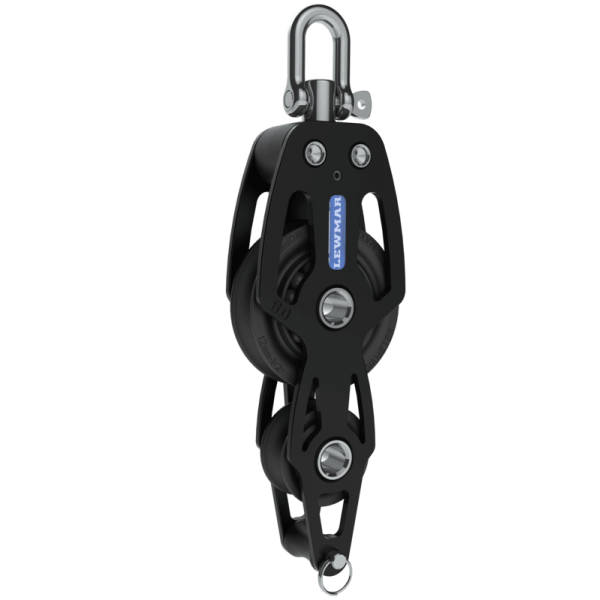

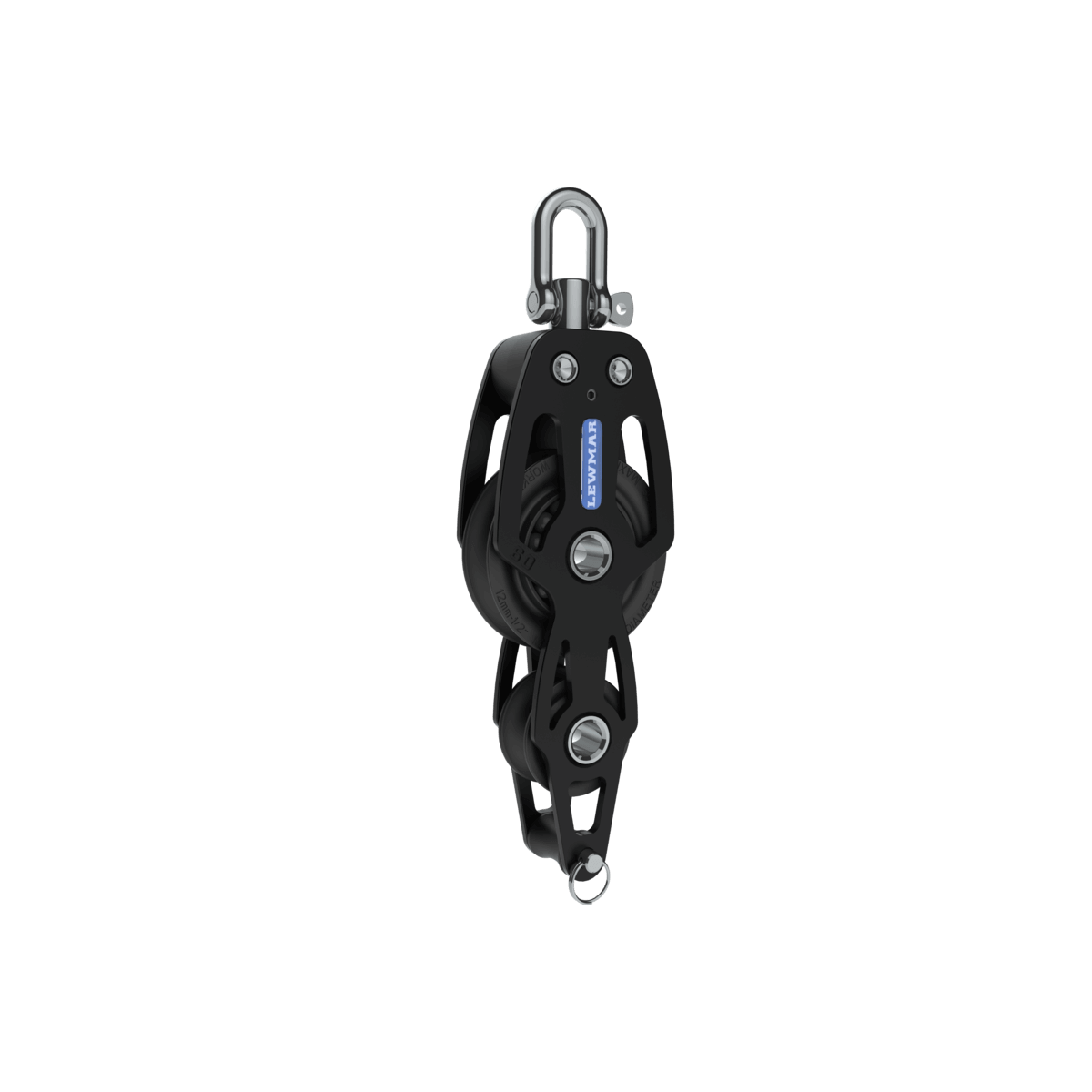

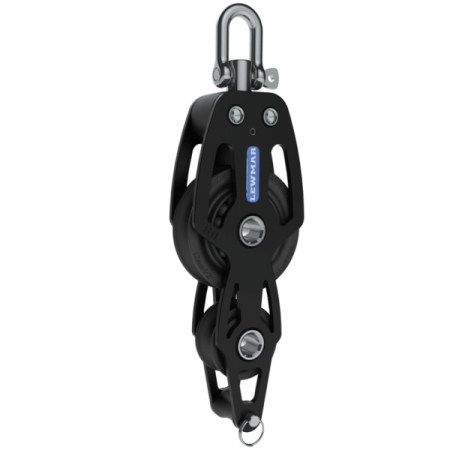

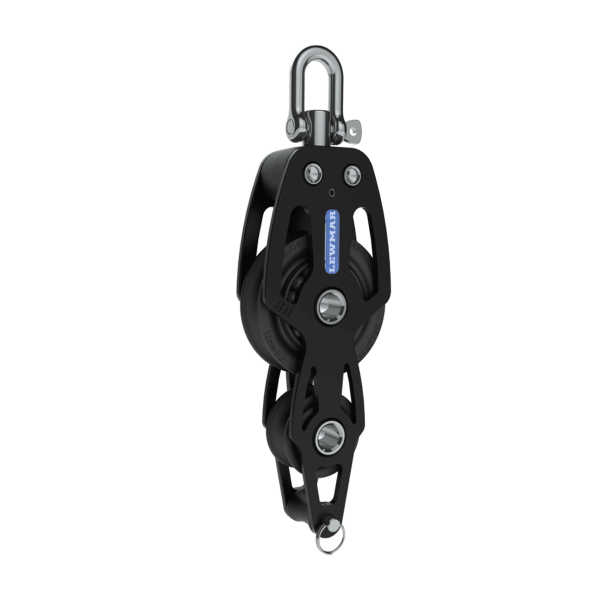

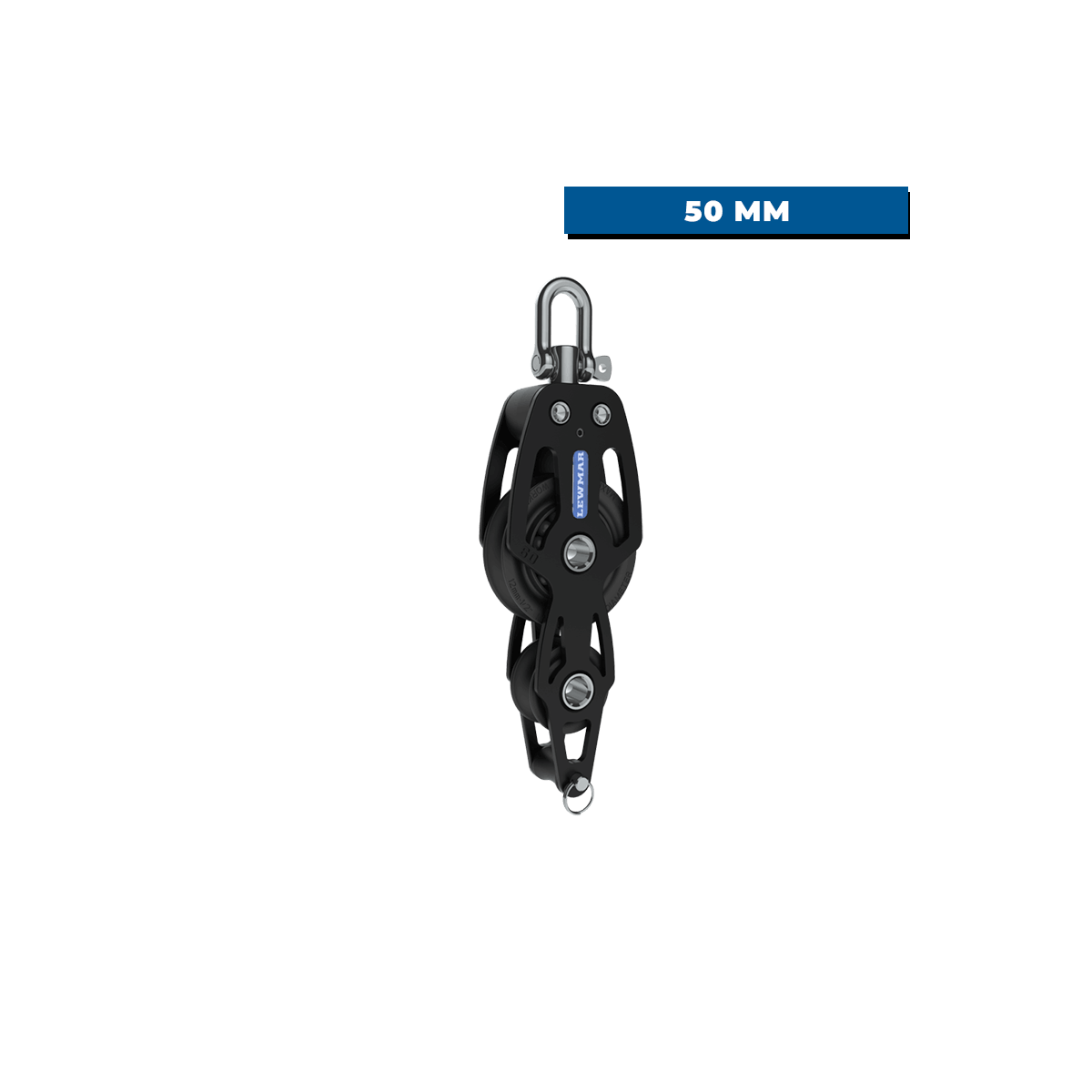

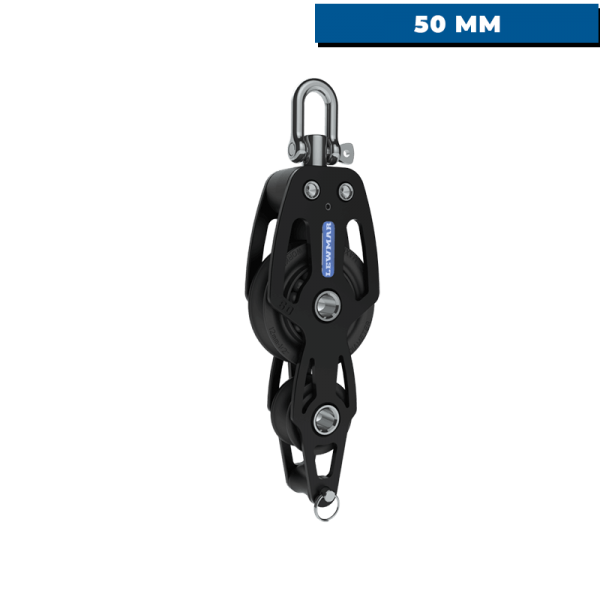

The Lewmar HTX 50 mm violin pulley with ringot is designed to handle heavy loads while remaining smooth during frequent adjustments. Its aluminum cheeks, acetal sheave and optimized bearings deliver excellent performance, which increases even further from 450 kg. With a working load of 800 kg and a weight of just 175 g, it is ideal for use with modern small-diameter ropes.
Data sheet
The HTX Lewmar range of fittings is the result of years of design and manufacturing experience, in close collaboration with shipyards, naval architects and sailors. Inspired by the Racing range, HTX pulleys feature simple construction and high-quality materials for enhanced reliability.
With its 50 mm sheave and ringot, this fiddle block is designed for frequently adjusted systems and heavy loads. It works very well with modern small-diameter ropes. Its performance improves from 450 kg upwards, when the acetal sheave becomes self-lubricating-.
 |

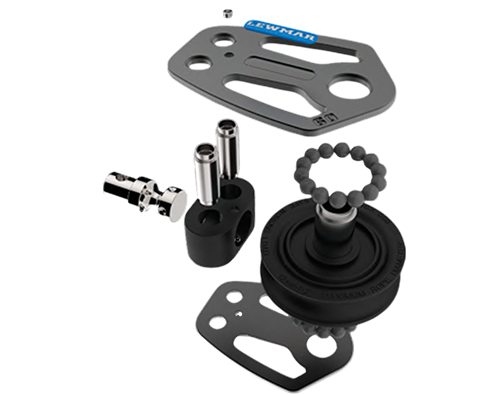

A pulley for heavy loadsThe HTX pulley is based on a sturdy architecture, with aluminum flanges and a central bearing ring to maintain efficiency as the load rises. Lateral thrust ball bearings stabilize the work of the sheave, and the machining of the bearing surface contributes to the advertised efficiency compared with pulleys of similar materials.
On a sailing yacht, it's ideal for gearboxes and hoists subject to frequent adjustment, with modern small-diameter ropes. From 450 kg upwards, the acetal sheave becomes self-lubricating, helping to improve efficiency in this load range. |
KEY FEATURES
|
BOX CONTENTS :
|
