Flat pulley-single deck with HTX blocker

Name: Flat pulley-single deck with HTX blocker
Brand: Lewmar

The-single deck Lewmar HTX Ø 50 mm flat pulley with blocker is made for hard-working bridge drives. Its integrated cam locks quickly for hand-held loads, while the aluminum cheeks, UV-stabilized acetal sheave and Delrin bearings keep rotation smooth.

Designed for ropes up to 10 mm and working loads up to 800 kg.

⚠️ Screws not included

LEWMAR - HTX single deck flat-pulley with blocker Ø 50 mm

Designed for heavy-duty maneuvering, the HTX flat pulley-bridge with blocker combines a compact return pulley with an integrated wedge cleat. This gives you a clear control point on the bridge, making it easy to pick up, block and adjust without having to multiply accessories.

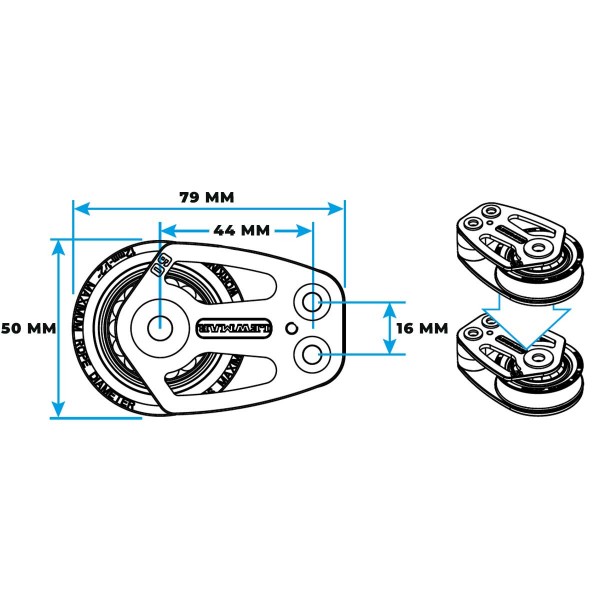

With its 50 mm dia. sheave, it can be used with all common sailboat sheets and trimmings, while remaining comfortable when the tension rises. The blocker is designed for hand-held loads, ideal for securing a set-up while in action.


	Easy-to-set deck return On a loaded deck, you're looking for a clean passage and a setting that won't degrade over time. The HTX pulley combines a central ring bearing to remain efficient under heavy loads, and ball bearings dedicated to lateral forces to maintain smooth rotation. Smooth rotation, even when pulling Designed for frequent maneuvering Working load: 800 kg Breaking load: 1600 kg Result: maneuvering goes more smoothly, you exert less force, and the setting remains more precise over time.

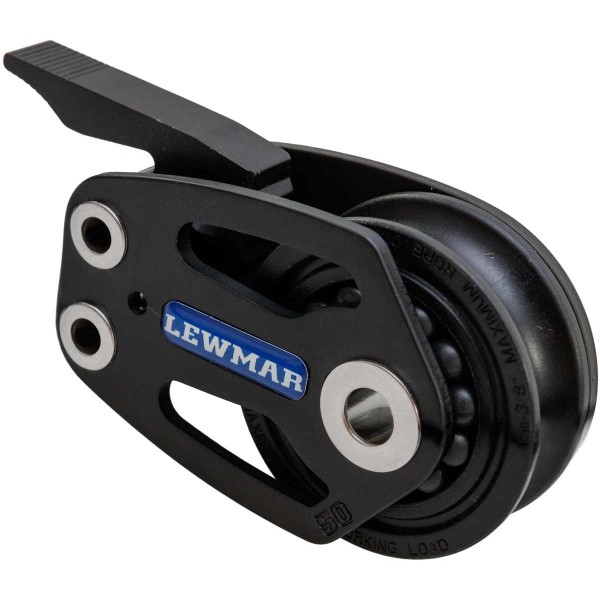

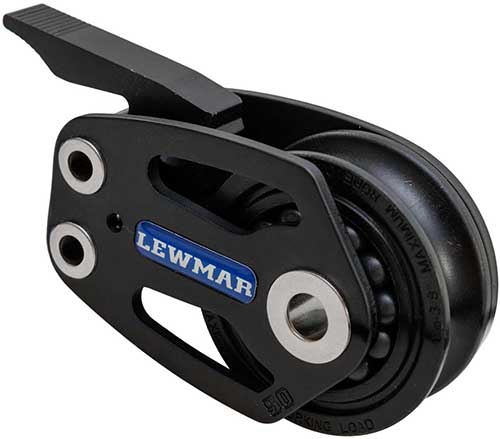

Integrated locking device to secure the setting The real plus of this version is the integrated cleat. It allows you to quickly lock in one end to stabilize a setting, just long enough to take up tension elsewhere. The cam is designed for hand-held loads, making it a simple and effective ally for sail trimming. Recommended rope up to 10 mm Sturdy aluminum cheeks UV-stabilized acetal sheave Delrin ball bearings With its compact dimensions and weight of 107 g, it integrates easily without weighing down your rigging.
