Horizontal support for Garmin and Lowrance - from 9 to 12" - Ball D
Ref.
RAM-SGL912
1 reviews
This RAM Mount for GPS handsets Garmin and Lowrance is equipped with a base, an articulated arm and a plate, and will enable you to attach your GPS to your boat
See the list of compatible devices Garmin, Lowrance, Humminbird, Raymarine
Made from marine-grade, electrically-coated aluminum for durability and reliability in the most demanding marine environments
Ref Ram Mounts = RAM-D-115-C
Read more Features
€178.90
Tax included
Public price
€199.00
Price tax excl. / DOM TOM
€149.08
RAM-SGL912
Data sheet
- Product type
- RAM support kit
- Range / Model
- Ball D
- Mounting type
- Screw-on

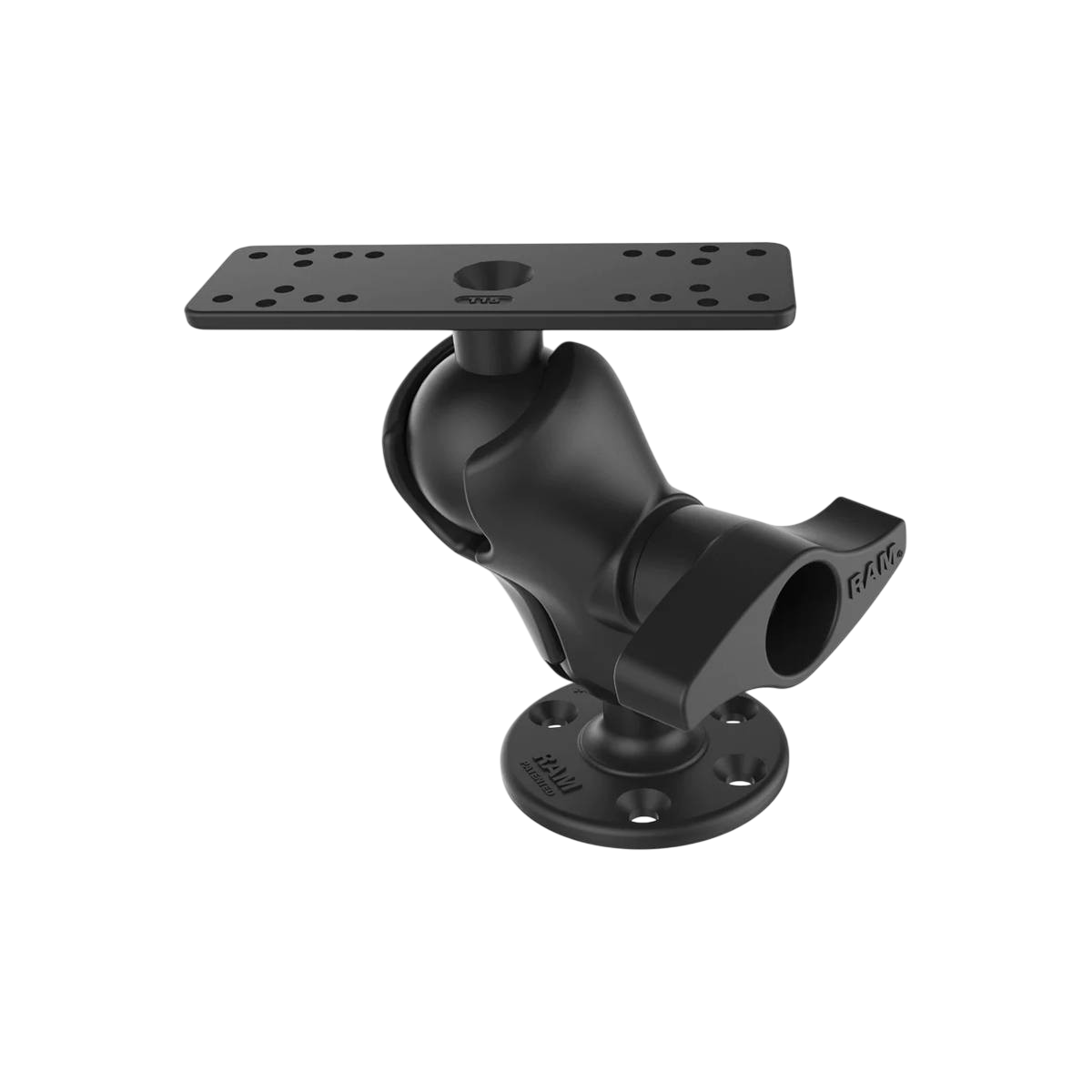

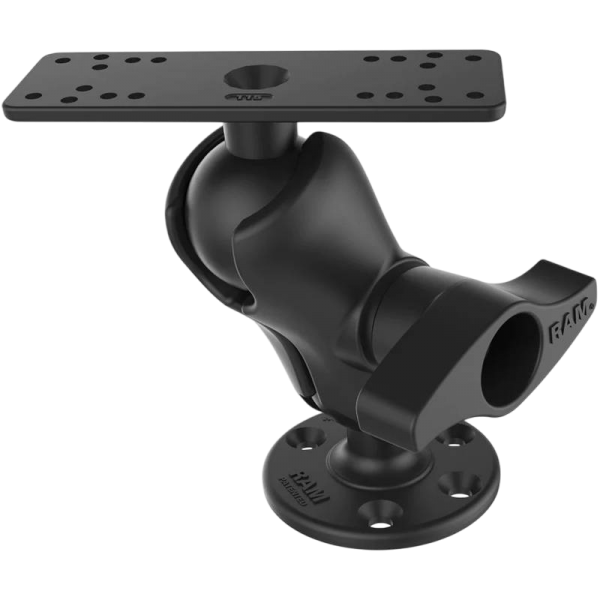

The RAM Mount RAM-D-115-C consists of a base with a 5.71cm diameter D-ball , a short 12.86cm arm and a 15.84cm x 5.04cm marine support plate with a D-ball to support larger units. This marine support plate contains various combinations of pre-drilled holes and fits directly onto the brackets and stirrups of 9" to 12" fishfinders. Supports devices such as: Echomap Ultra 102sv, GPSMAP 84XX , striker 9SV , HDS PRO AND LIVE from 9" to 12" etc... Please refer to the complete device list.
Kit length (round base to plate) : 18.60cm
This kit will support up to 2.7kg.
Consisting of ref :
- RAM-D-115BU ➔ Ram plate with D ball (15.84cm x 5.04cm)
- RAM-D-201U-C ➔ Short arm for D-ball (total length: 12.86cm and ball-to-ball length: 9.14cm)
- RAM-D-202U ➔ Round base (Ø9.35 cm) D-ball
