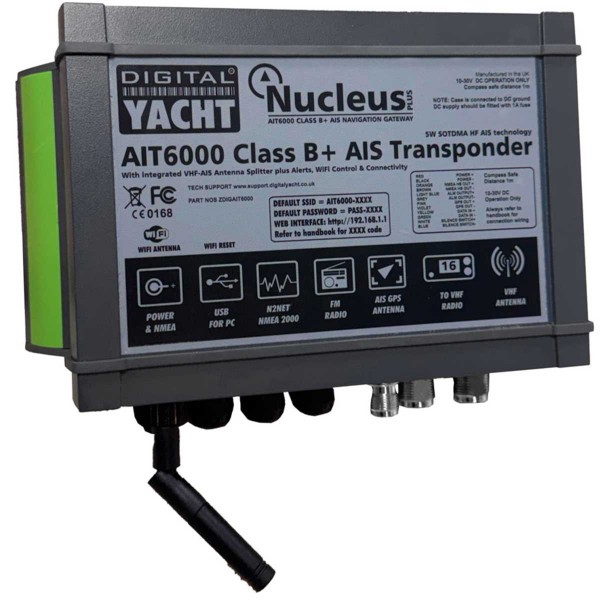

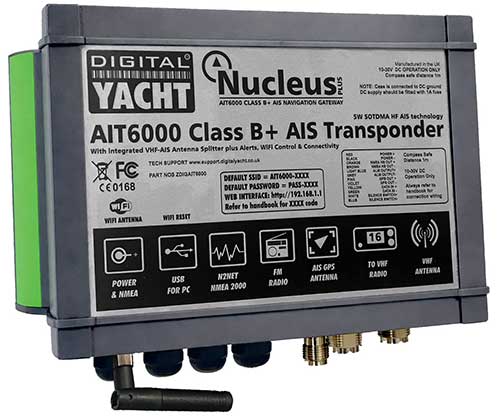

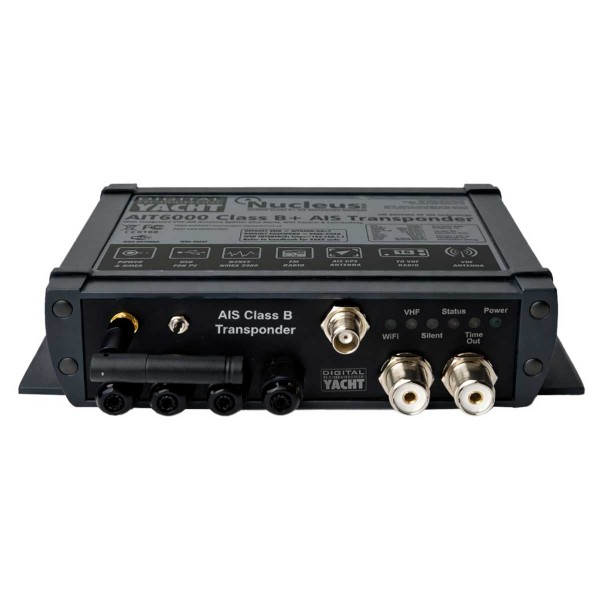

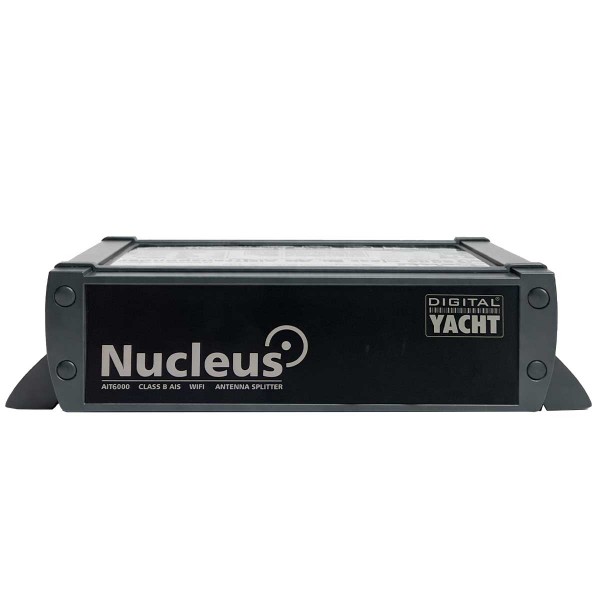

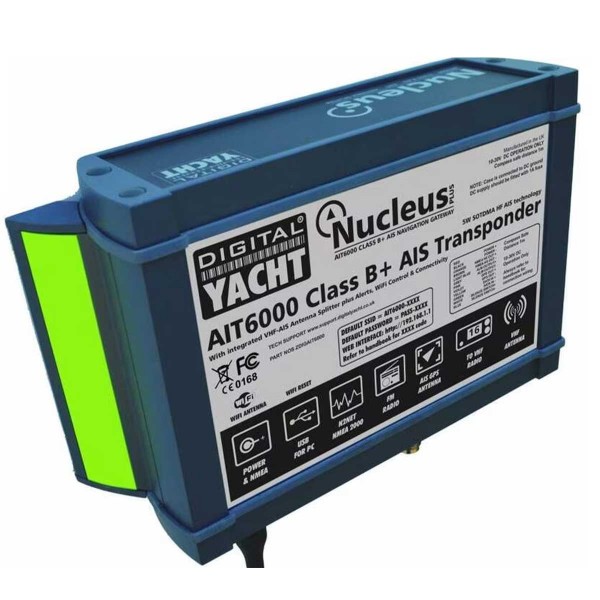

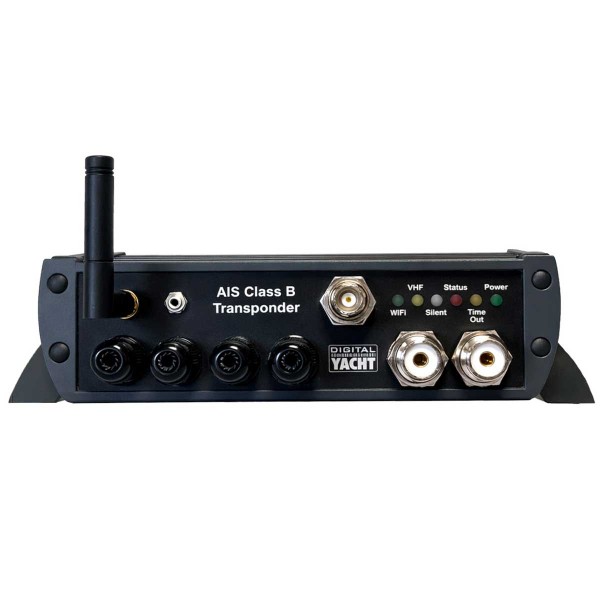

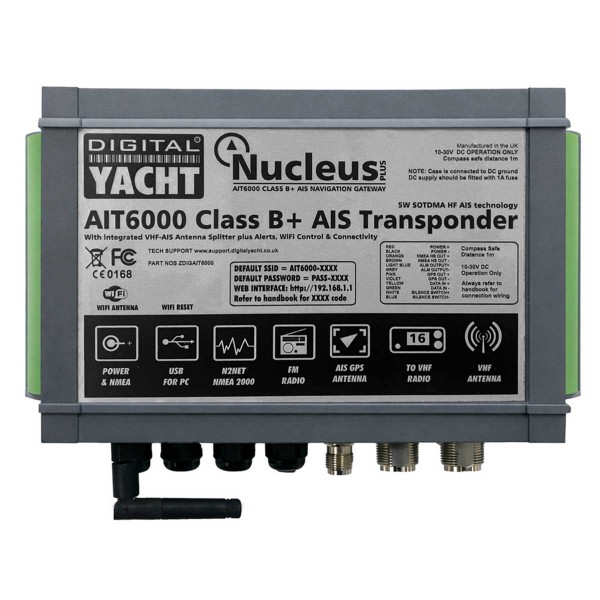

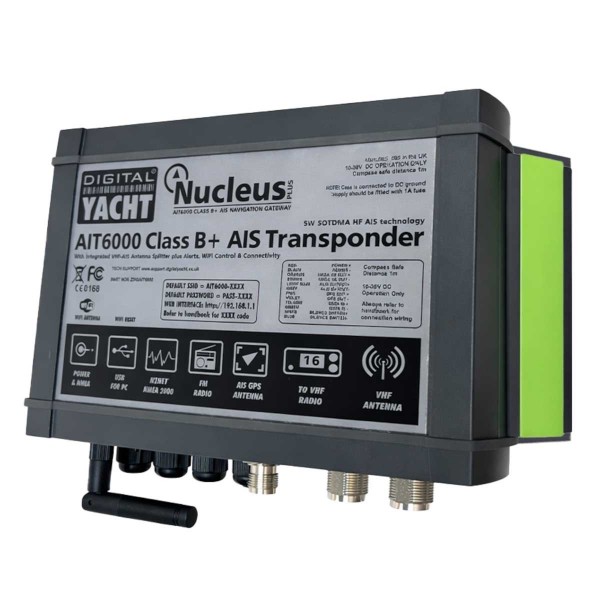

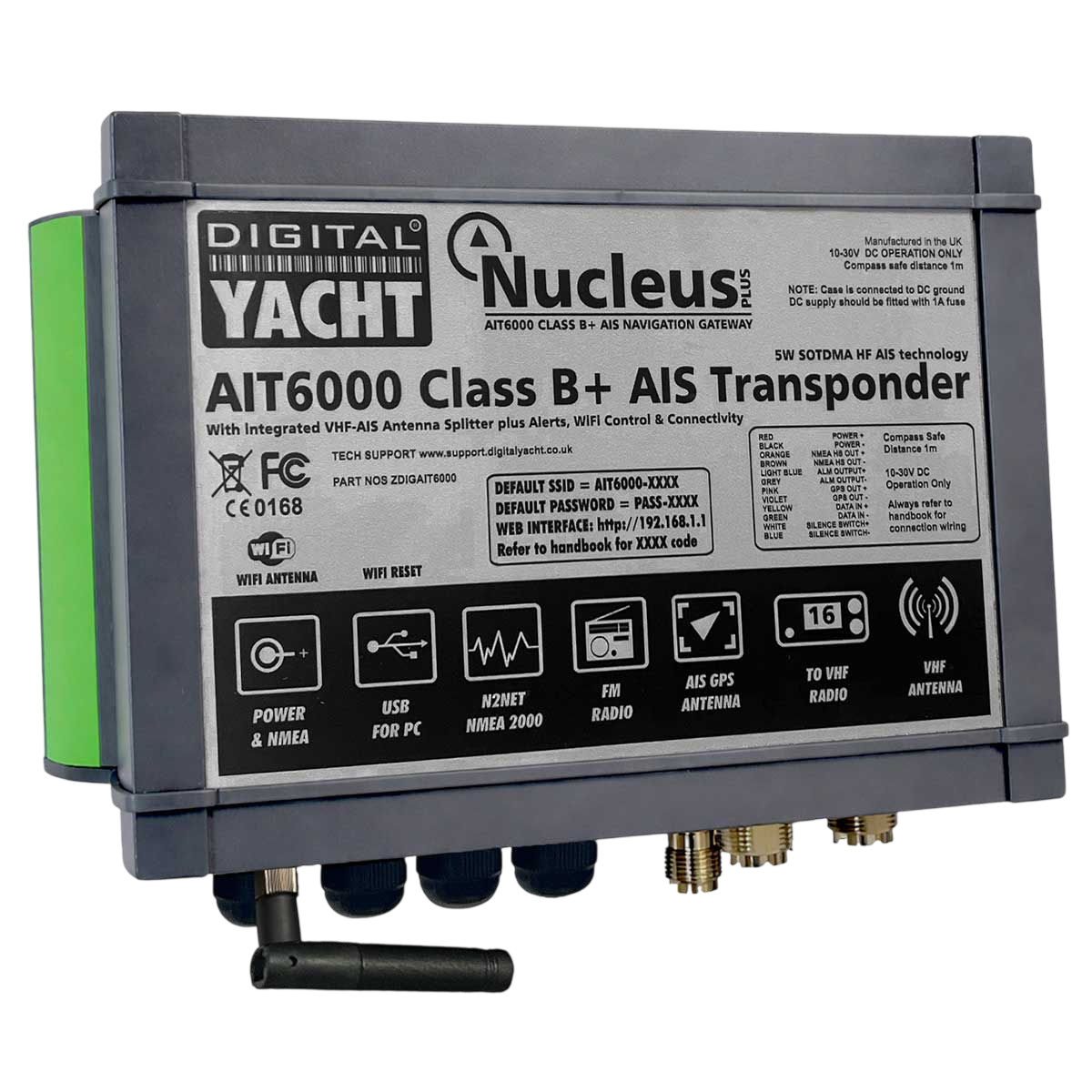

Transponder AIS AIT6000 with splitter

Integrated lossless VHF splitter

The AIT6000 allows you to share a single antenna between your VHF and your AIS, with no loss of signal.

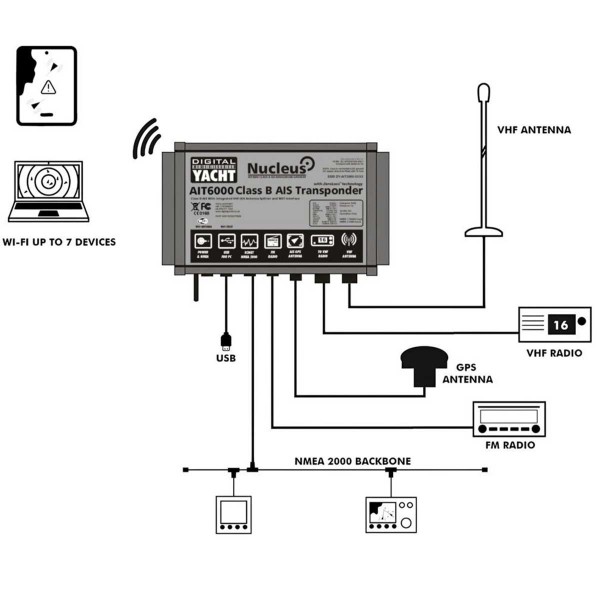

Installation is simple: you connect the VHF antenna to the box, then link the box to the VHF radio. Priority is automatically given to the VHF, ensuring interference-free operation.

• Using the existing VHF antenna
• Automatic VHF priority
• SO connectors-239
• Galvanic isolation of antenna port

A real time-saver, especially when installing a second antenna is complicated.

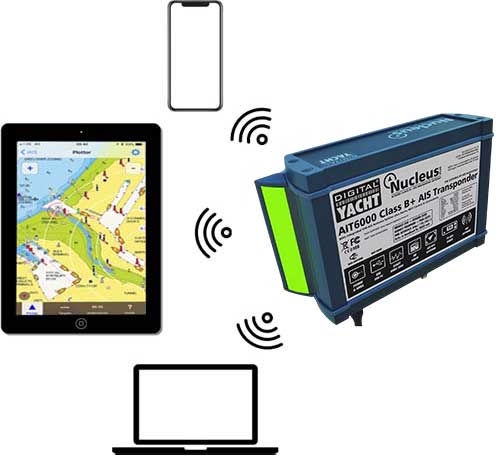

Full connectivity

The AIT6000 adapts to your installation and equipment:

• NMEA 0183 connection (38,400 baud) for chartplotter
• NMEA 2000 connection (Micro-C)
• USB connection for PC
• WiFi for mobiles and tablets

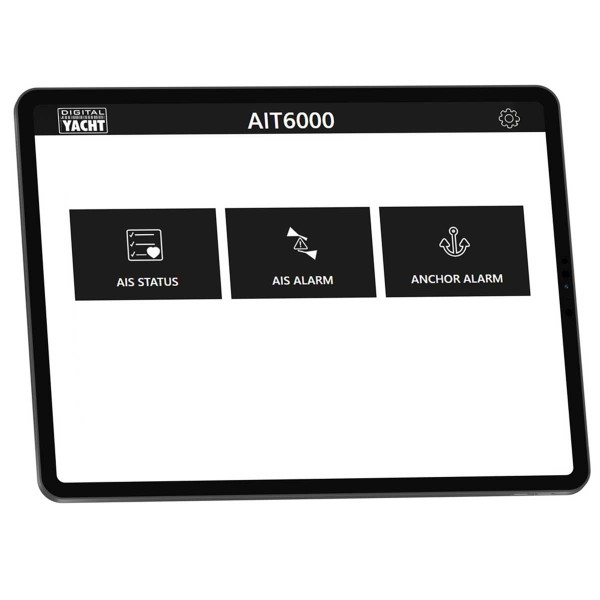

WiFi allows you to consult AIS data on your applications and access the web interface to configure the MMSI or monitor system status.

The result: a single box for transmitting, receiving and distributing all AIS satellite data.

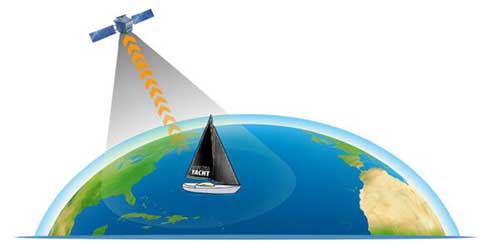

Precise GNSS positioning (GPS + GLONASS)

The AIT6000 uses a multi-satellite GNSS receiver (GPS + GLONASS) to ensure accurate, reliable positioning.

• GPS and GLONASS reception
• 72 channels
• AIS satellite transmission
• Internal or external antenna
• TNC connector

Cold-start time is approx. 26 seconds. For optimum performance, we recommend installing the antenna with a clear view of the sky.

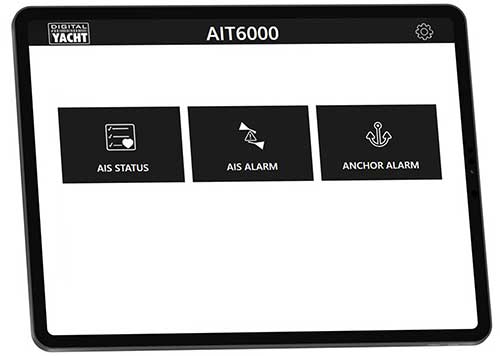

AIS Class B+ with SOTDMA and alarms

This transponder incorporates SOTDMA technology for prioritized channel access AIS, guaranteeing more reliable transmission than standard Class B AIS.

• 2 receivers and 1 transmitter
• Silent mode can be activated

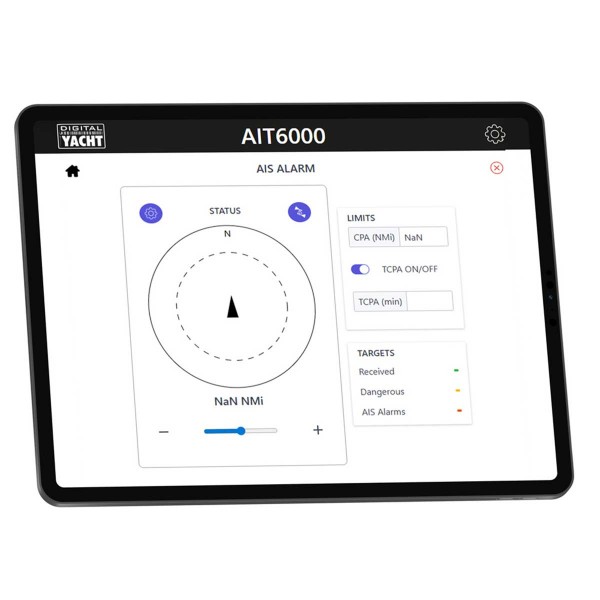

• CPA and TCPA alarms
• Anchor alarm
• Collision alarm

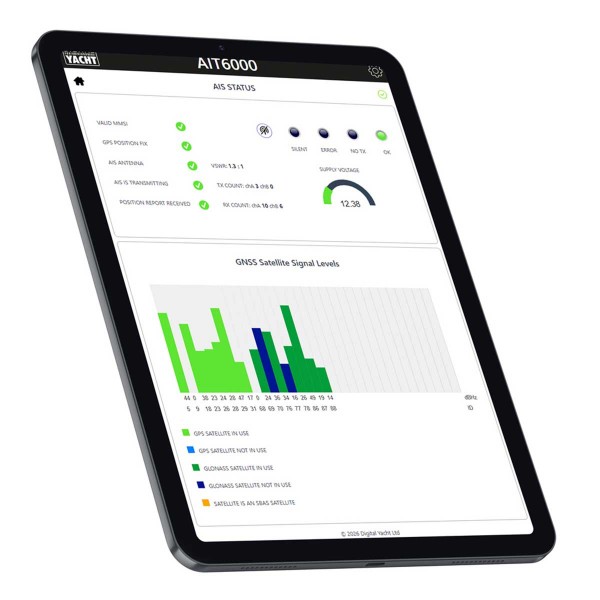

The web interface makes it easy to check system status (GPS, antenna, voltage, VSWR).

Power supply can be 12 V or 24 V, with an average consumption of 250 mA (12 V).

KEY FEATURES :

• Ultra-resistant
• SPAIS function
• Transponder AIS 5W
• Integrated antenna splitter
• Wifi interface (up to 7 devices)
• Connection: NMEA0183 and NMEA2000
• UDP and TCP/IP protocol support
• Integrated collision and anchor alarms

BOX CONTENTS :

• 1 - AIT6000 transponder
• 1 - 10m cable
• 1 - External GPS antenna
• 1 - WiFi 3dBi antenna
• 1 - NMEA 2000 cable 0.8 m (male)
• 1 - 0.8 m NMEA 0183 and power cable
• 1 - 0.8 m USB cable
• 1 - PDF documentation
