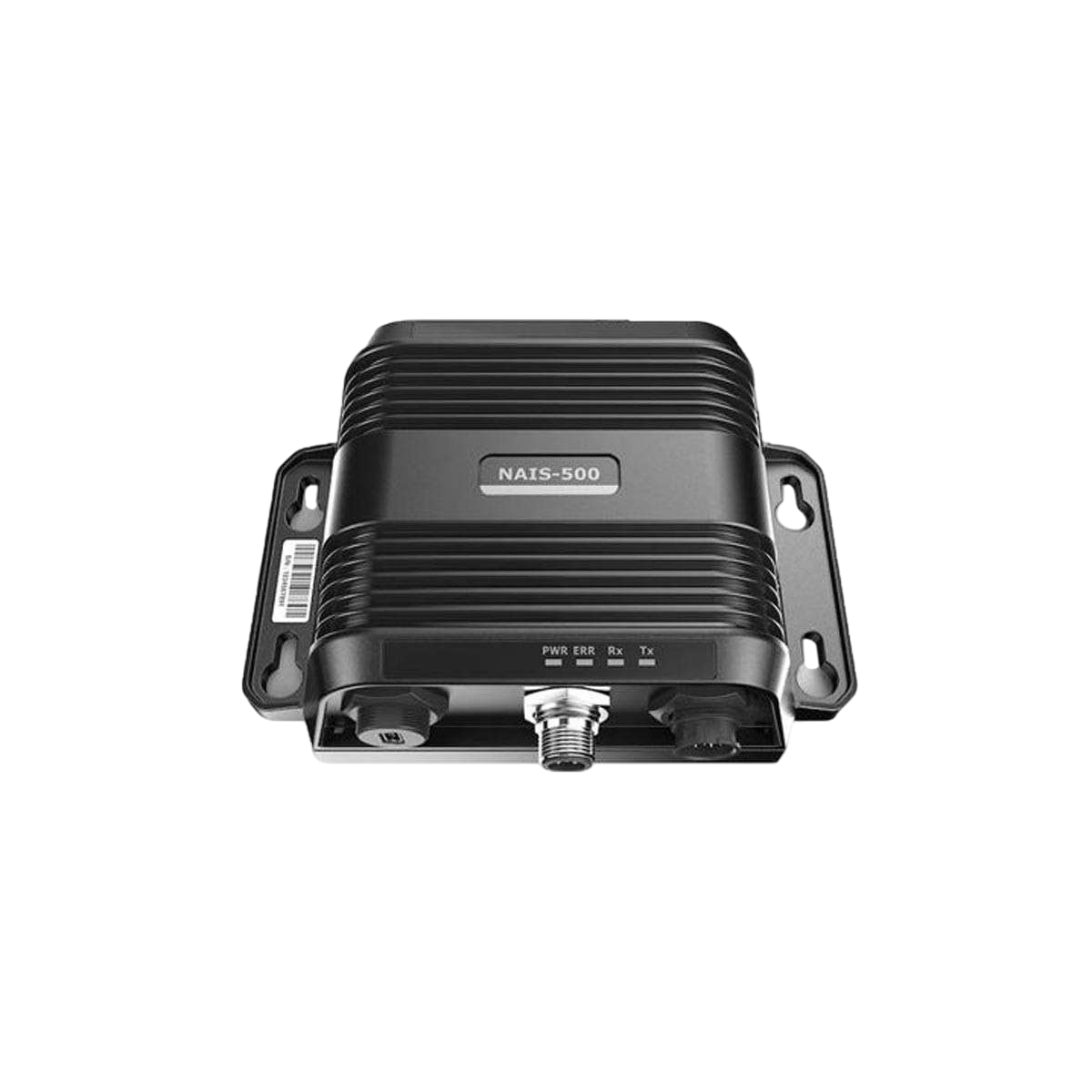

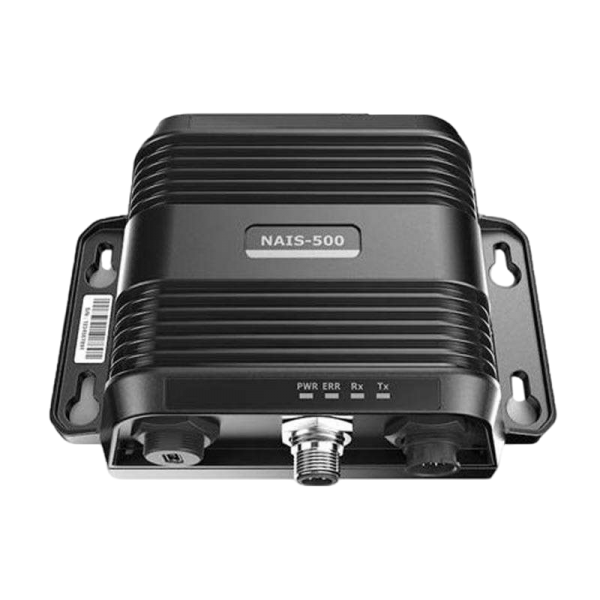

Transponder NAIS-500 + GPS-500

Ref. 000-13609-001

Reduce the risk of collision with this fully-integrated, Class B AIS transponder with 2.5w. power. It's essential for navigating busy shipping lanes and congested harbors. Compact, lightweight and perfectly waterproof, the NAIS 500 consumes little power and offers multiple connections.

Read more Features
€885.90 Tax included
Public price
€994.80
-10%
Price tax excl. / DOM TOM €738.25
Quantity
IN SUPPLIER STOCK
By buying this product you can collect up to 885 loyalty points. Your cart will total 885 points that can be converted into a voucher of €8.85.
000-13609-001

Data sheet

Product type
AIS
Transmitter power
2,5W
Geolocation
GPS (50 channels)
Functionality
AIS transmitter / receiver, NMEA 0183, NMEA 2000, External GPS antenna
Description

LOWRANCE/SIMRAD - NAIS-500 - OPT FOR SAFETY

This LOWRANCE / SIMRAD AIS Class B transmitter/receiver module, compatible with the HDS range from Lowrance, can be connected via the NMEA0183 network, NMEA2000 or via a PC thanks to its USB connection. So you can reprogram or manage it as you see fit. Compatible with all VHF antennas on the market, you can inform all boats within VHF range of your position and find out theirs.




NAIS-500

The NAIS-500 ensures that you can be seen and see other boats on the water. To do this, it sends them a signal containing your navigation data. It also receives data from other boats. This gives you plenty of time to plan evasive maneuvers.

The NAIS-500 can be networked with NSS, NSO or GO multifunction displays, as well as HDS LIVE/Carbon displays and your VHF radio, for a fully integrated system.

Ideal for sailboats or motorboats, the NAIS 500 offers low average power consumption.



GPS-500 ANTENNA

Thanks to the external GPS-500 antenna, you can receive 50 different channels by connecting it to your NAIS-500. The antenna also acts as a transmitter to enable other boats to obtain information about your position.



MAIN POINTS :

  • Weight: 0.3 kg
  • AIS class B
  • Waterproofing: IP67
  • GPS reception: 50 channels
  • Power consumption: 180 mA at 12V
  • Dimensions: 152 x 98 x 52 mm
  • Interfaces: USB/NMEA0183/NMEA2000

BOX CONTENTS :

  • 1 - AIS NAIS-500
  • 1 - GPS-500 antenna
  • 1 - Micro C T-connector
  • 1 - Cable 1,8m Micro C - NMEA 2000
  • 1 - PDF documentation


Download

NAIS transponder manual-500

User manual Receiver Transmitter NAIS-500 (FR-EN-DE-ES-POR-IT)

Download (13.54M)
