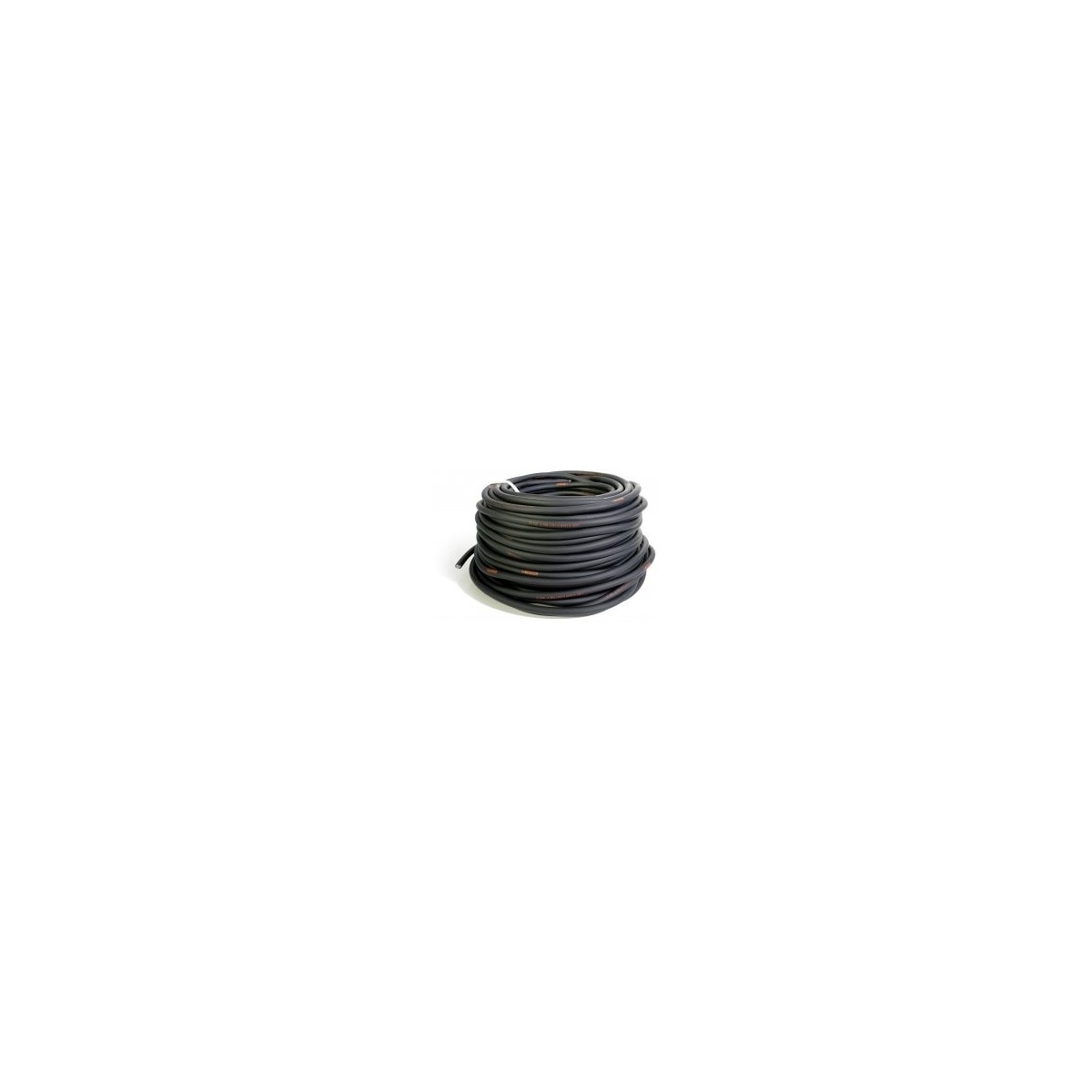

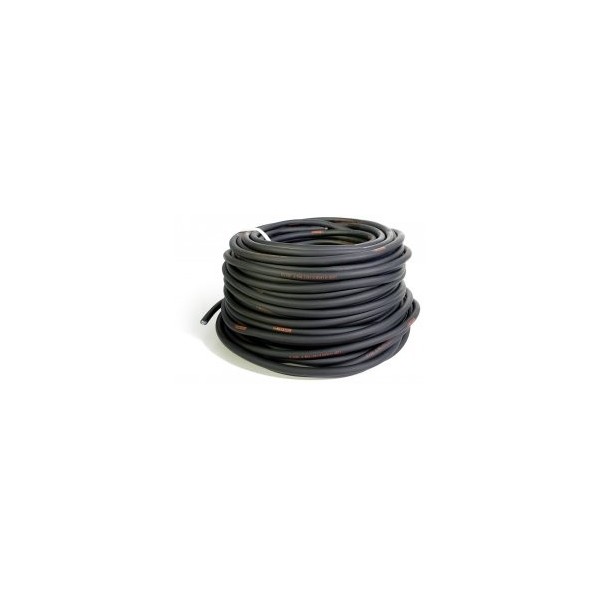

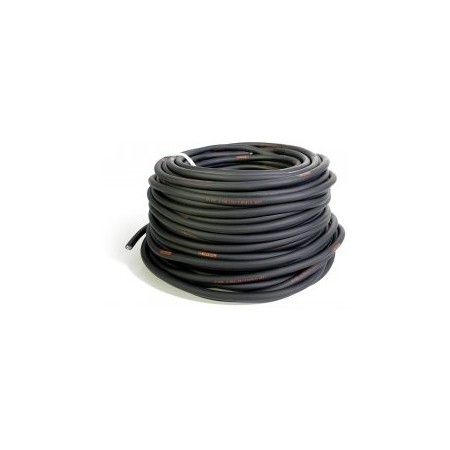

HO7RN-F 2x2.5 mm² multicore cable

Operating voltage: 450/750V.

Standards: EN 50525-2-21, IEC 60245-4, IEC 60332-1, IEC 60364-5-52, HD 22.4, UNE 21027-4, HD516.

Flexible electrolytic copper, class 5 EN60228.

outer sheath type EM2 (polychloroprene) flame-resistant IEC60332-1
Ambient operating temperature -25 to 55°C.
Maximum core temperature in nominal service on fixed installation 90°C.
RoHS compliant, C2 flame retardant, NF C 32-070.

Cross-section: 2.5mm²
Number of conductors: 2
Current-carrying capacity in open air: 36A
Weight : 0.162 kg/m
Diameter: 10.6mm
Minimum bending radius: 31.8mm
