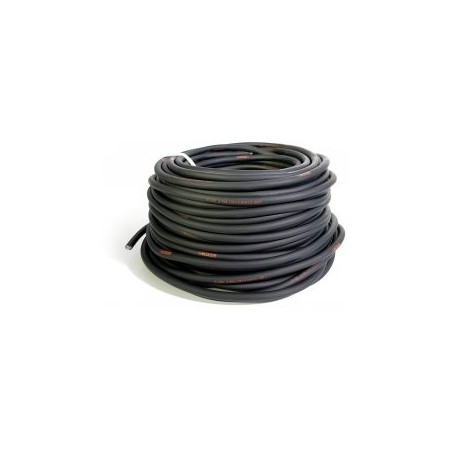

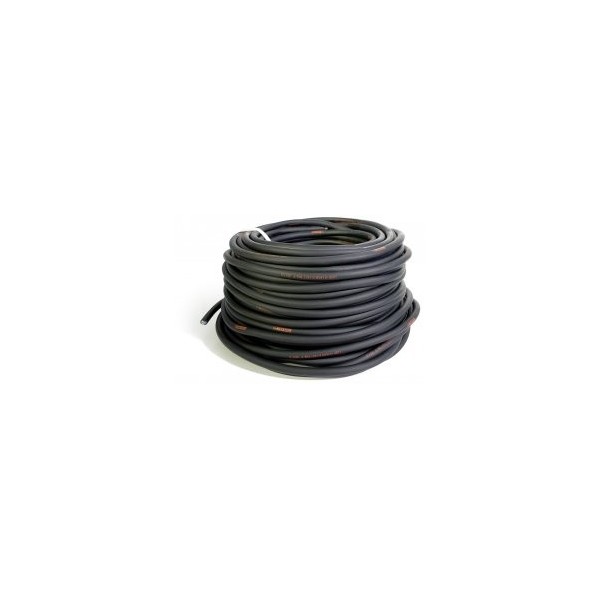

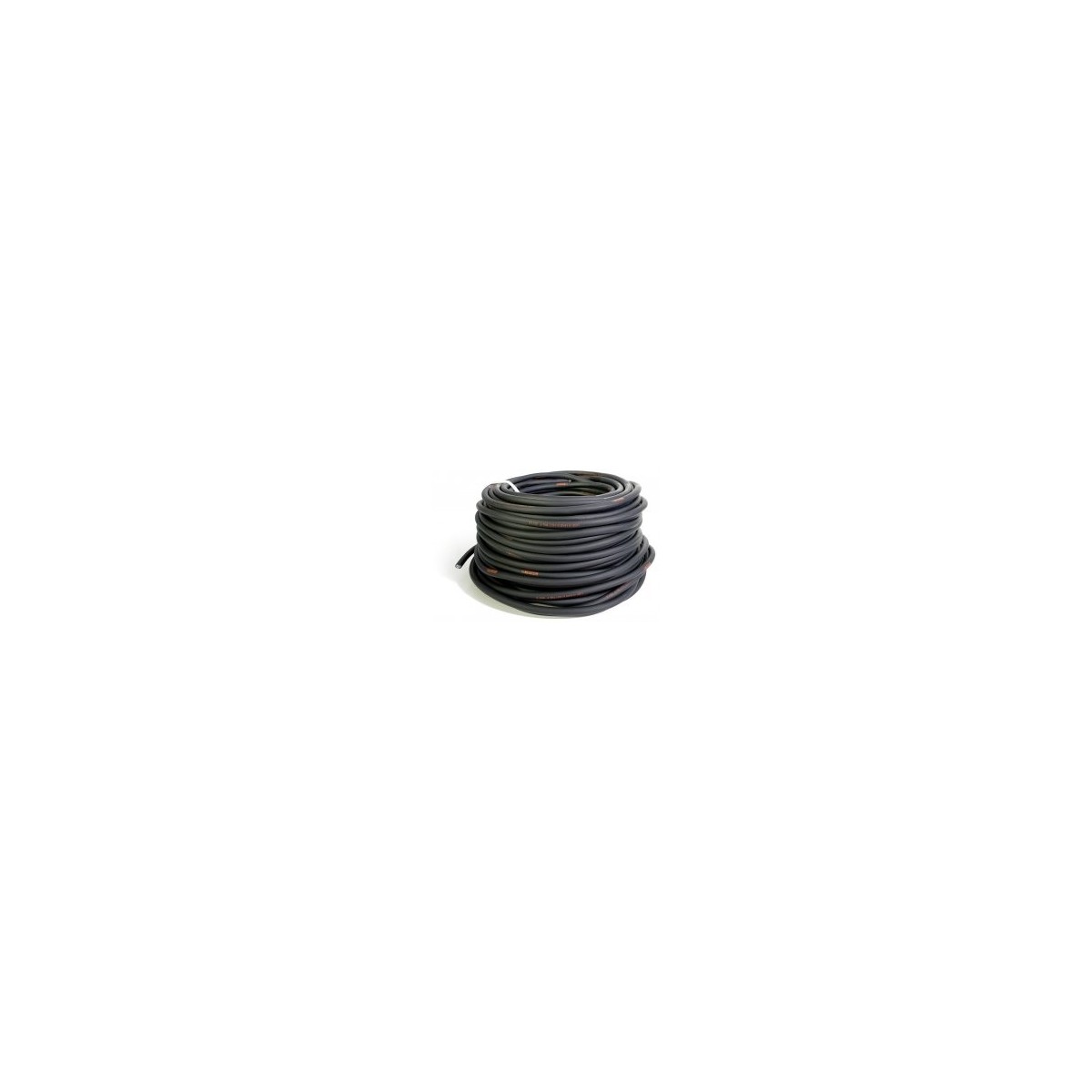

HO7RN-F 3x4 mm² multicore cable

Operating voltage: 450/750V.
Standards: EN 50525-2-21, IEC 60245-4, IEC 60332-1, IEC 60364-5-52, HD 22.4, UNE 21027-4, HD516.

Flexible electrolytic copper, class 5 EN60228.

outer sheath type EM2 (polychloroprene) flame-resistant IEC60332-1
Ambient operating temperature -25 to 55°C.
Maximum core temperature in nominal service on fixed installation 90°C.
RoHS compliant, C2 flame retardant, NF C 32-070.

Cross-section: 4mm²
Number of conductors: 3G
Current-carrying capacity in free air: 49A
Mass : 0.276 kg/m
Diameter: 13.1mm
Minimum bending radius: 39.3mm
