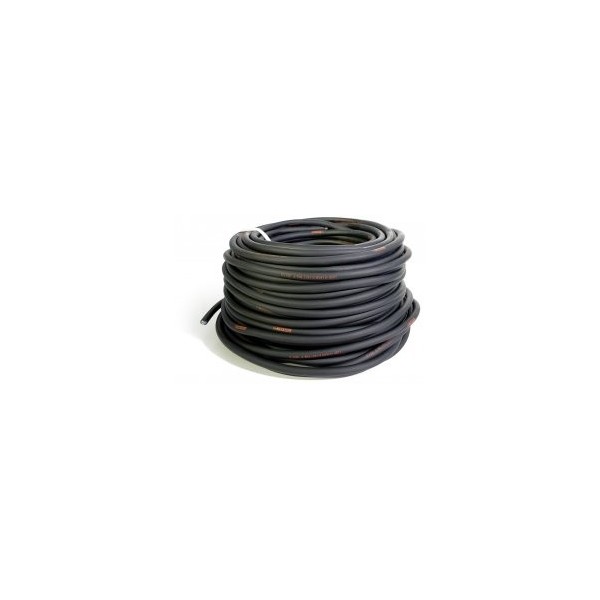

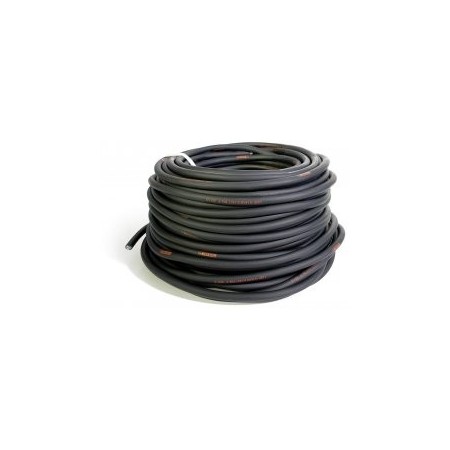

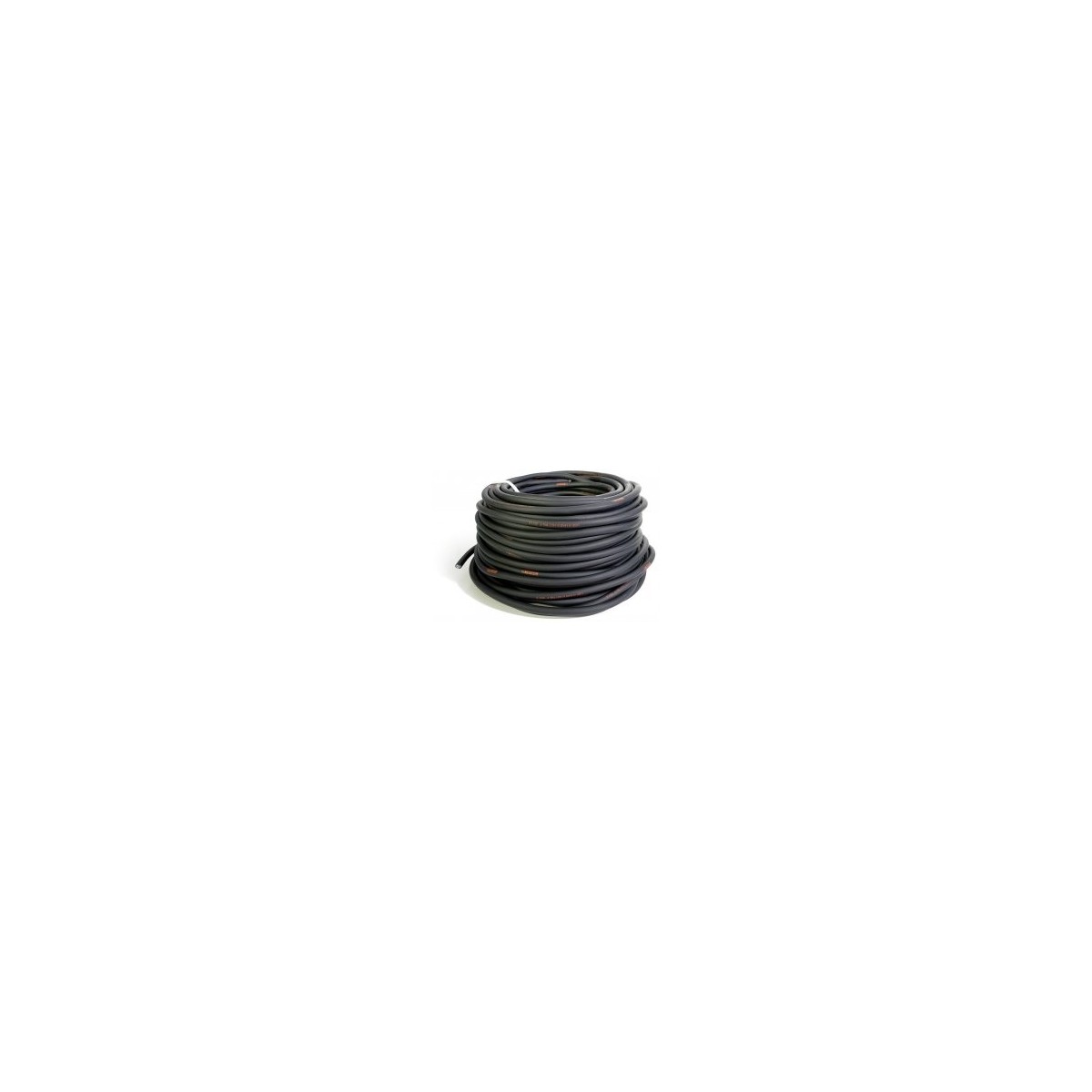

HO7RN-F 4x2.5 mm² multicore cable
Ref.
KS425
HO7RN-F cable
Flexible cable with sheath adapted to the risks of corrosion, fire, shocks, mineral oils..
Sold per 25m
Read more
€92.42
Public price
€103.25
Price tax excl. / DOM TOM
€92.42
KS425
Operating voltage: 450/750V.
Standards: EN 50525-2-21, IEC 60245-4, IEC 60332-1, IEC 60364-5-52, HD 22.4, UNE 21027-4, HD516.
Flexible electrolytic copper, class 5 EN60228.
outer sheath type EM2 (polychloroprene) flame-resistant IEC60332-1
Ambient operating temperature -25 to 55°C.
Maximum core temperature in nominal service on fixed installation 90°C.
RoHS compliant, C2 flame retardant, NF C 32-070.
Cross-section: 2.5mm²
Number of conductors: 4G
Current-carrying capacity in open air: 32A
Mass : 0.244 kg/m
Diameter: 12.6mm
Minimum bending radius: 37.8mm
