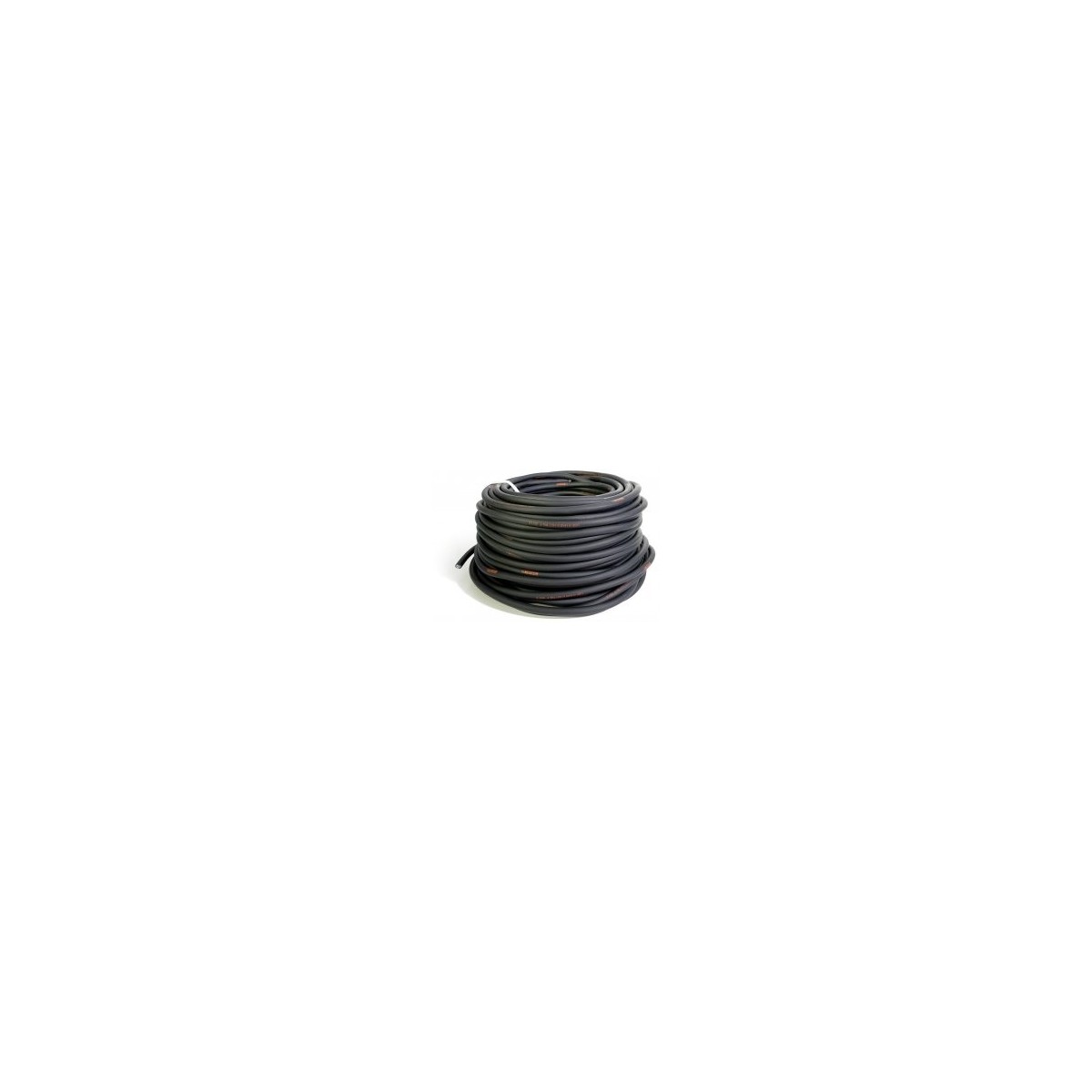

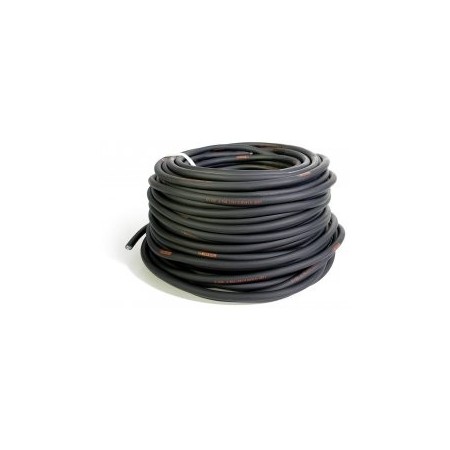

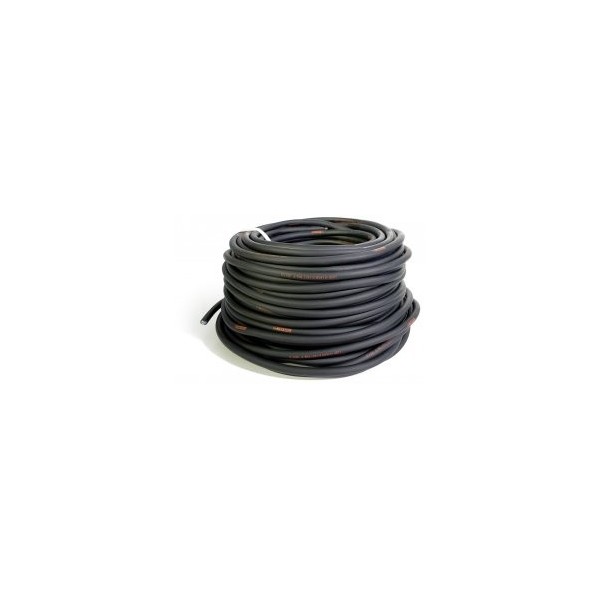

HO7RN-F 5x1.5 mm² multicore cable

Ref. KS515

HO7RN-F cable
Flexible cable with sheath adapted to the risks of corrosion, fire, shocks, mineral oils..

Operating voltage: 450/750V.

Sold per 25m

Read more
€89.90 Tax included
Public price
€100.80
-10%
Price tax excl. / DOM TOM €74.92
Quantity
IN SUPPLIER STOCK
Delivery times and costs
By buying this product you can collect up to 89 loyalty points. Your cart will total 89 points that can be converted into a voucher of €0.89.
KS515
Description

Standards: EN 50525-2-21, IEC 60245-4, IEC 60332-1, IEC 60364-5-52, HD 22.4, UNE 21027-4, HD516.


Flexible electrolytic copper, class 5 EN60228.

outer sheath type EM2 (polychloroprene) flame-resistant IEC60332-1
Ambient operating temperature -25 to 55°C.
Maximum core temperature in nominal service on fixed installation 90°C.
RoHS compliant, C2 flame retardant, NF C 32-070.

Cross-section: 1.5mm²
Number of conductors: 5G
Current-carrying capacity in open air: 23A
Mass : 0.206 kg/m
Diameter: 11.6mm
Minimum bending radius: 34.8mm
