- -€29.22

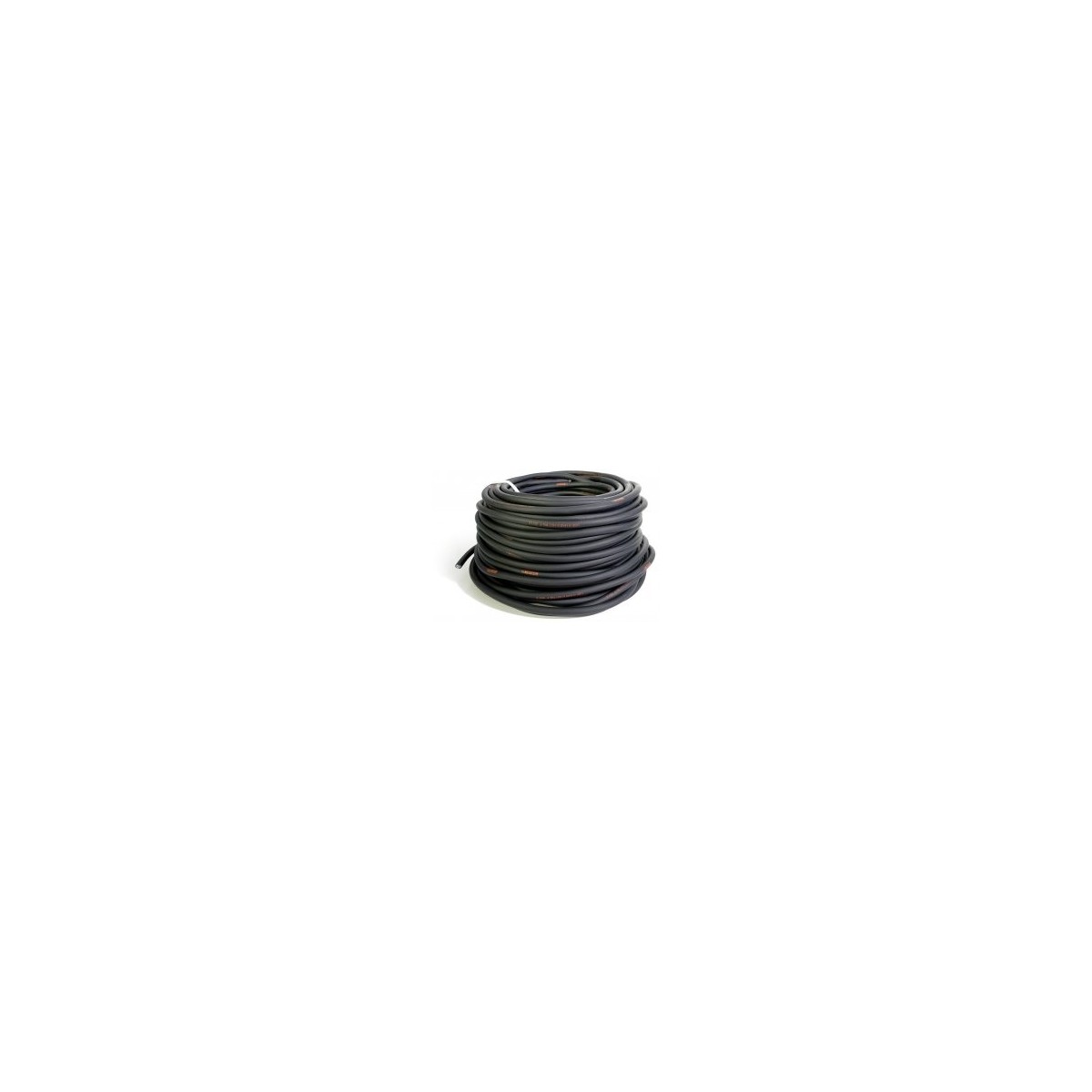

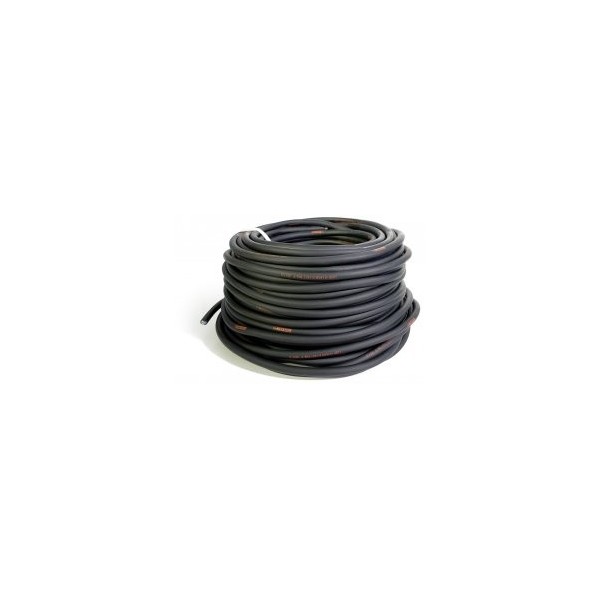

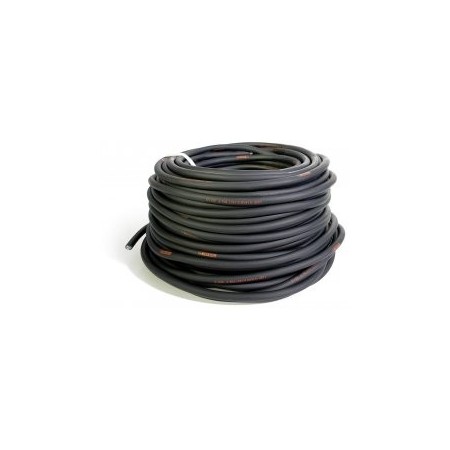

HO7RN-F 1x95 mm² multicore cable
Ref.
KS095
HO7RN-F cable
Flexible cable with sheath adapted to the risks of corrosion, fire, shocks, mineral oils..
Operating voltage: 450/750V.
Sold per 10m
KS095
Standards: EN 50525-2-21, IEC 60245-4, IEC 60332-1, IEC 60364-5-52, HD 22.4, UNE 21027-4, HD516.
Flexible electrolytic copper, class 5 EN60228.
outer sheath type EM2 (polychloroprene) flame-resistant IEC60332-1
Ambient operating temperature -25 to 55°C.
Maximum core temperature in nominal service on fixed installation 90°C.
RoHS compliant, C2 flame retardant, NF C 32-070.
Cross-section: 95mm²
Number of conductors: 1
Current-carrying capacity in free air: 328A
Weight : 1.140 kg/m
Diameter: 22mm
Minimum bending radius: 88mm
