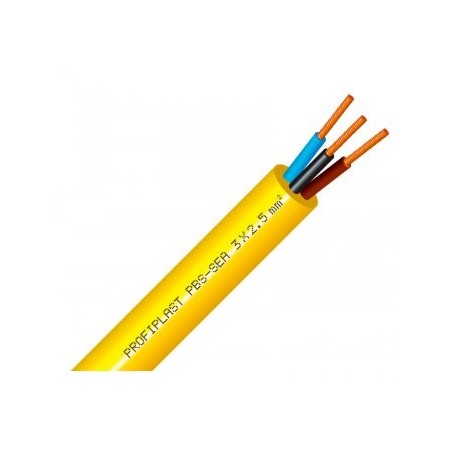

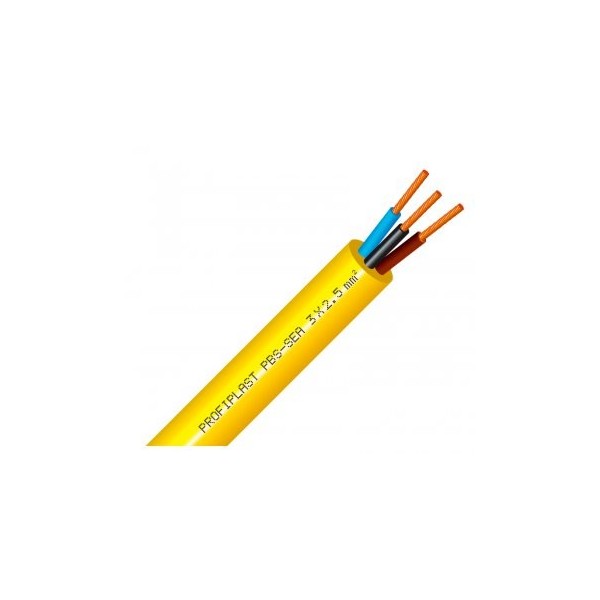

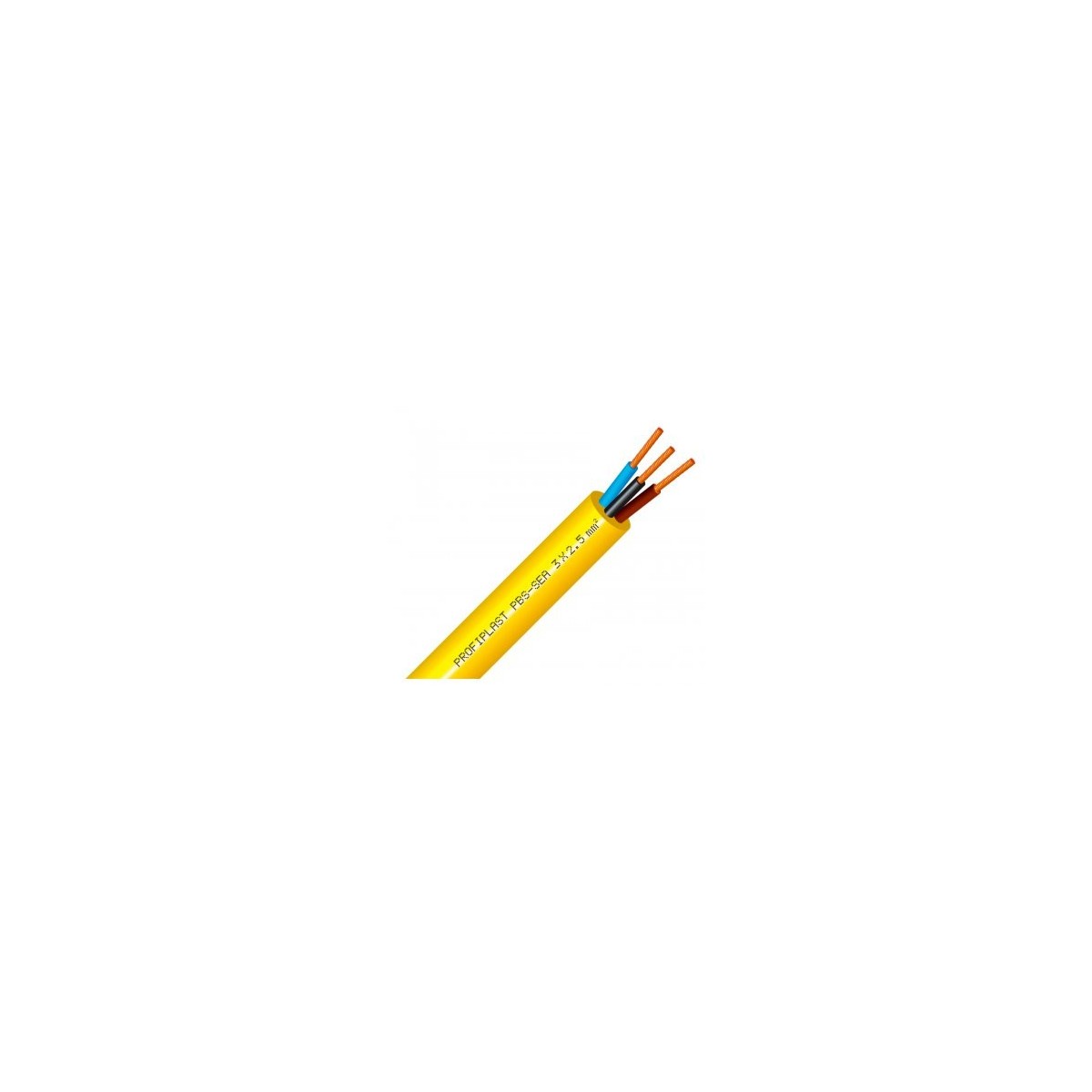

Electrical marine cable Profiplast PBS-SEA 3G2.5
Ref.
CP325
Ideal for supplying power to electrical boxes located on yachting or unloading docks.
Watertight in a marine environment, this cable is the perfect answer to the needs of marine professionals.
Flexible bare copper core class 5 - IEC 60228
Insulation: isovinyl
Plain or two-tone colors or numbering
Sheath: profiprene
Standard color: yellow
Sold by 50m
CP325
Features :
- Operating temperature
- fixed installation in air: -40°C to +70°C
- mobile installation in air: -25°C to +70°C
- fixed installation in water: +50°C
- Rated voltage
- fixed installation: 0.6/1 kV
- mobile installation: 450/750V
- Test voltage: 2500V
- Permanent immersion AD8 according to NF C 15-100
- Immersion depth: 250 m - 25 bar
- Linear resistance at 20°C as per IEC 60228
- Seawater resistance (AD8 tests carried out in salt water at 40 g/l)
Marking :
- Profiplast PBS-SEA section mm2
- Permanent immersion NF C 15-100 AD8
Approvals & standards :
- NF C 15-100, IEC 60228, NF C 32-070, IEC 60332-1
- Approval certificate AD8 by Bureau Veritas according to NF C 32-102-16 A-B
