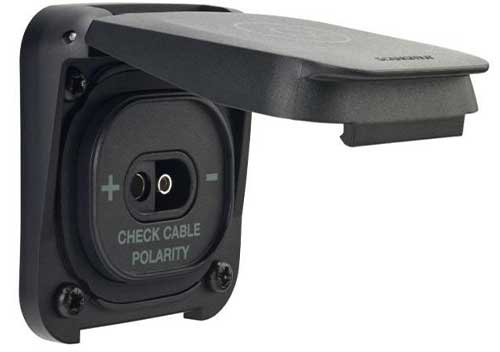

SAE Ventura Series solar connector

Name: SAE Ventura Series solar connector
Brand: Scanstrut

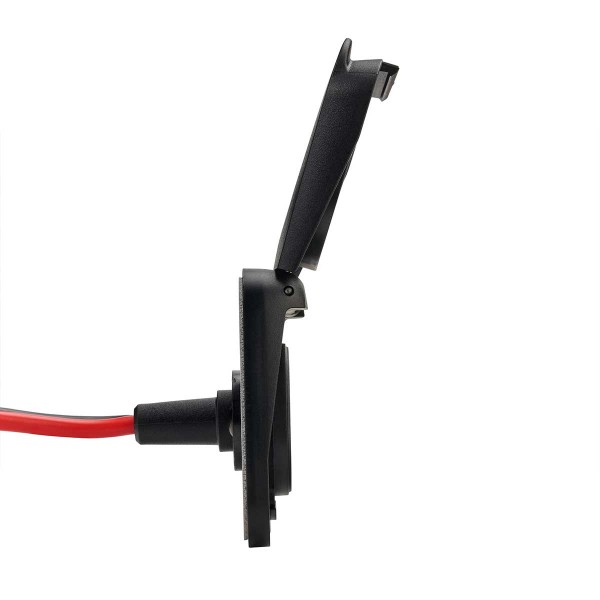

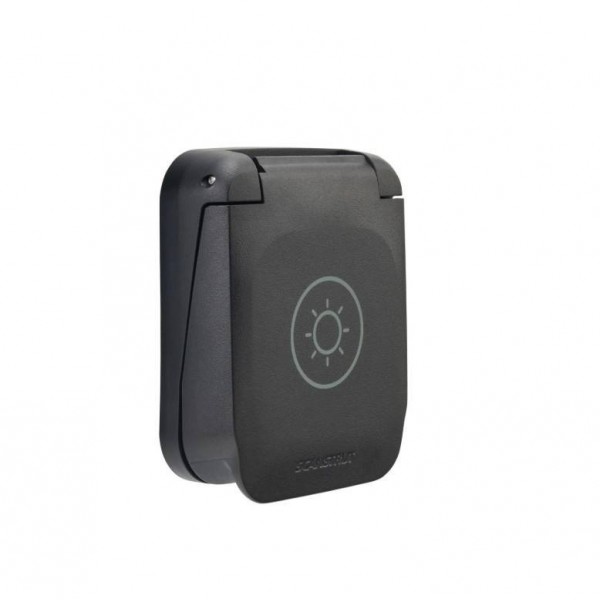

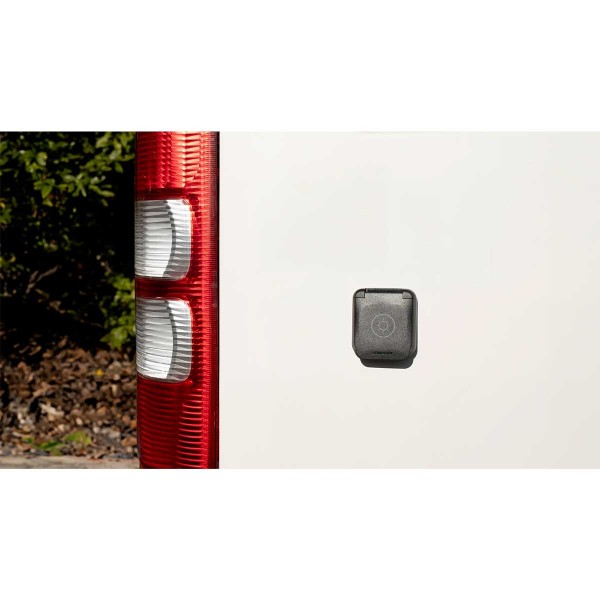

The Scanstrut Ventura Series SC-V-S2 flush-mount SAE solar connector allows a portable panel to be connected neatly on board or in a van.

It features an SAE-type connector offering a current rating of 20A and a nominal voltage of 24V DC.

€32.42

Public price

€33.50

Price tax excl. / DOM TOM €32.42

Quantity

OUT OF STOCK

32 loyalty points.

Reference SC-V-S2

Description
Attachments
Customer Reviews
Questions / Answers
Products also ordered

Description

Scanstrut - SAE Ventura Series Solar Connector SC-V-S3

The SAE Ventura Series Solar Connector creates a clean, reliable connection point for your solar panels. No more makeshift cable runs: you plug in your external panel when you need it, then close the cover.

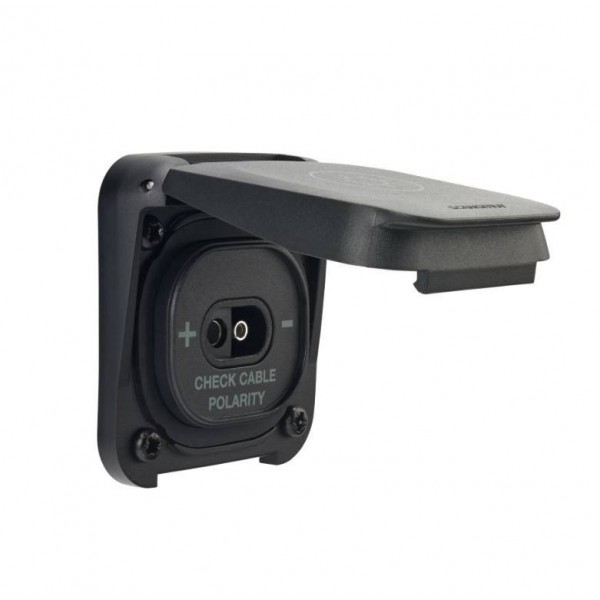

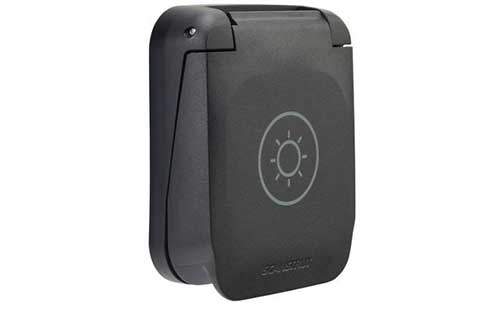

The plug uses an SAE connector and accepts high currents for robust solar installation. The product is designed for DC power, with flush-mounting and a locking cover to keep closed when not in use.


	High-capacity SAE solar connector Designed for connecting a panel to a charge controller or battery system, this connector handles the common needs of a mobile solar installation. It accepts up to 20 A, with a nominal voltage of up to 24 V DC. SAE waterproof connector Compatible with XT60W-F waterproof type and XT60-F standard type Connector max. current: 20A Maximum voltage: 24 V DC Max. power: 240 W at 12 V, 480 W at 24 V

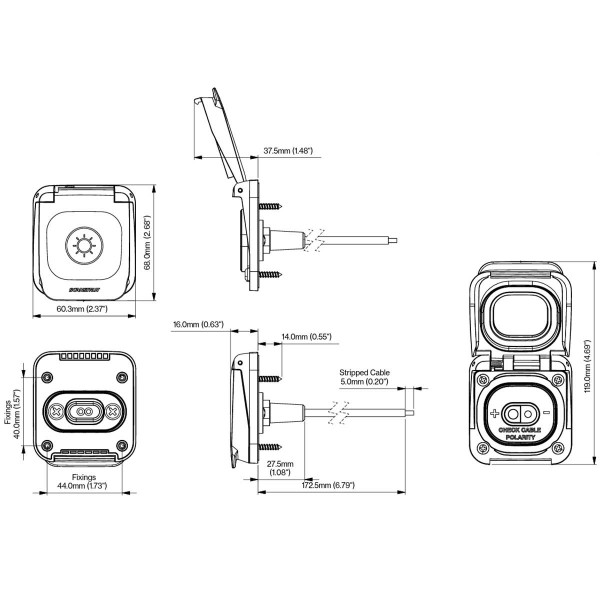

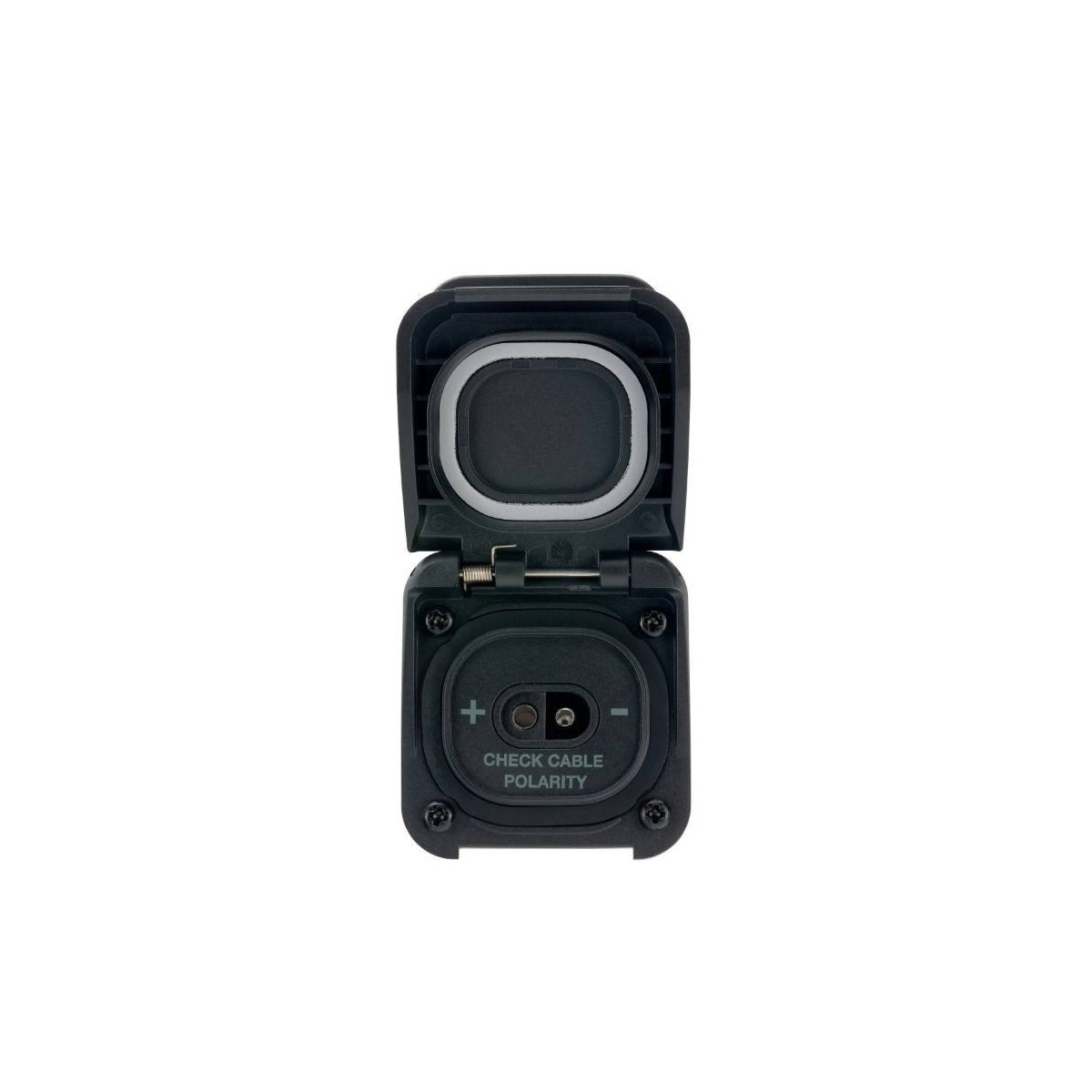

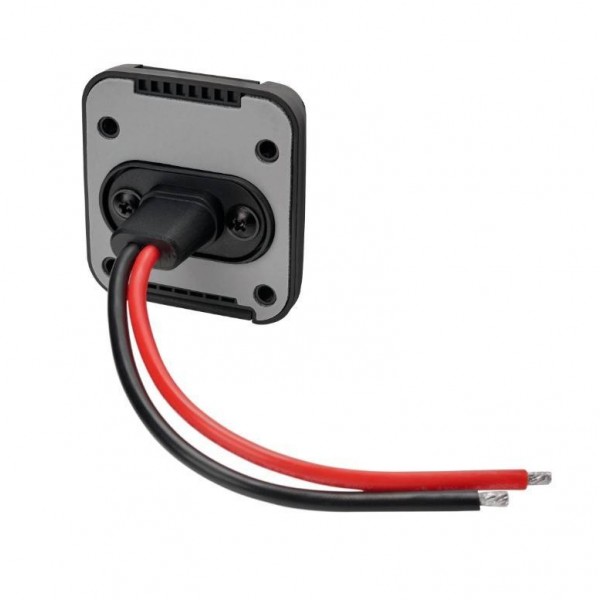

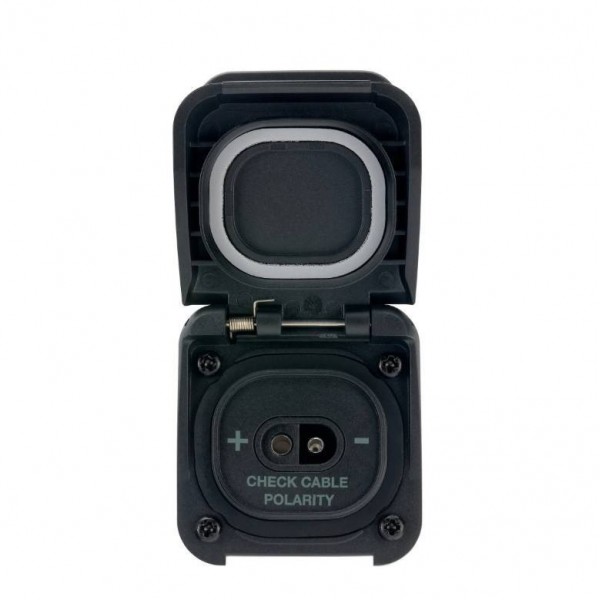

Flush-mounted and front-sealed Protection applies to the front panel. It is given as IP68-IP69K for the closed cover, if installed on a flat, smooth, non-porous surface, with the seal well compressed. IP68-IP69K for closed front cover Fixing by 4 screws Integrated gasket 90° retaining lug The cover must remain securely locked when not in use, and must not be left open when navigating or on the road. The connector must not be installed in an area that may be submerged.
