Solar connector XT60 Ventura Series

Name: Solar connector XT60 Ventura Series
Brand: Scanstrut

The XT60 flush-mount solar connector Scanstrut Ventura Series SC-V-S3, allows a portable panel to be connected neatly on board or in a van.

It features an Amass XT60EW-M type connector, offering 30 A continuous and 60 A instantaneous current and a rated voltage of 500 V DC.

€32.42

Public price

€33.50

Price tax excl. / DOM TOM €32.42

Quantity

OUT OF STOCK

32 loyalty points.

Reference SC-V-S3

Description
Attachments
Customer Reviews
Questions / Answers
Products also ordered

Description

Scanstrut - Solar connector XT60 Ventura Series SC-V-S3

The XT60 Ventura Series solar connector creates a clean, reliable connection point for your solar panels. No more makeshift cable runs: you plug in your external panel when you need it, then close the cover.

The plug uses an Amass XT60EW-M connector and accepts high currents for a robust solar installation. The product is designed for DC power, with flush mounting and a locking cover to keep closed when not in use.


	High-capacity XT60 solar connector Designed for connecting a panel to a charge controller or battery system, this connector handles the current needs of a mobile solar installation. It accepts up to 30 A continuous and 60 A peak, with a nominal voltage of up to 500 V DC. Amass XT60EW connector-M waterproof type Compatible with XT60W-F waterproof type and XT60-F standard type 30 A continuous, 60 A instantaneous Rated voltage: 500 V DC Max. power: 360 W at 12 V, 720 W at 24 V, 1440 W at 48 V

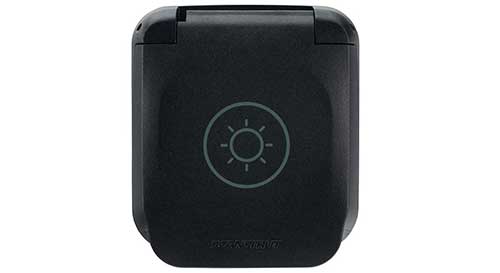

Flush-mounted and front-sealed Protection applies to the front panel. It is given as IP68-IP69K for the closed cover, if installed on a flat, smooth, non-porous surface, with the seal well compressed. In use, the product is rated IP65 with an XT60W-F waterproof connector fitted. IP68-IP69K with front cover closed IP65 in use with XT60W-F fitted Secured by 4 screws Integral gasket The cover must remain securely locked when not in use, and must not be left open when navigating or on the road. The connector must not be installed in an area that may be submerged.
