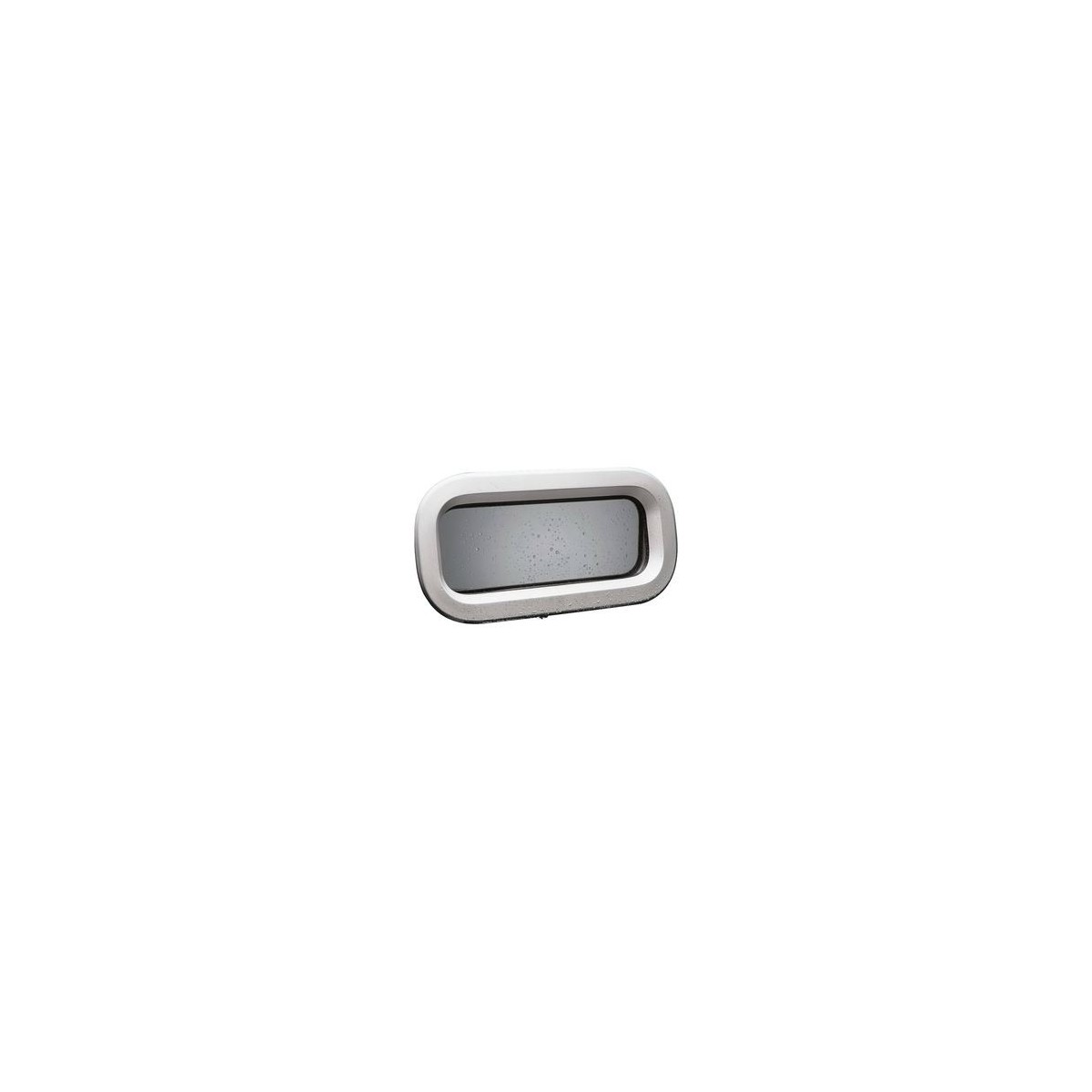

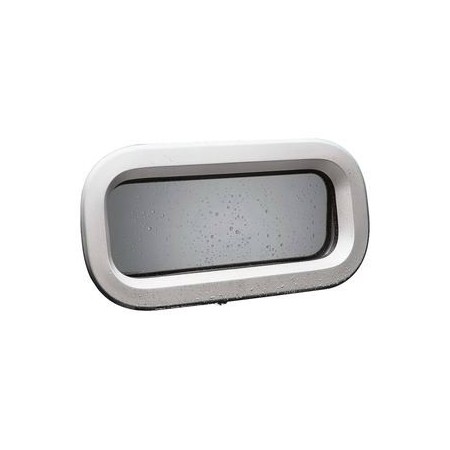

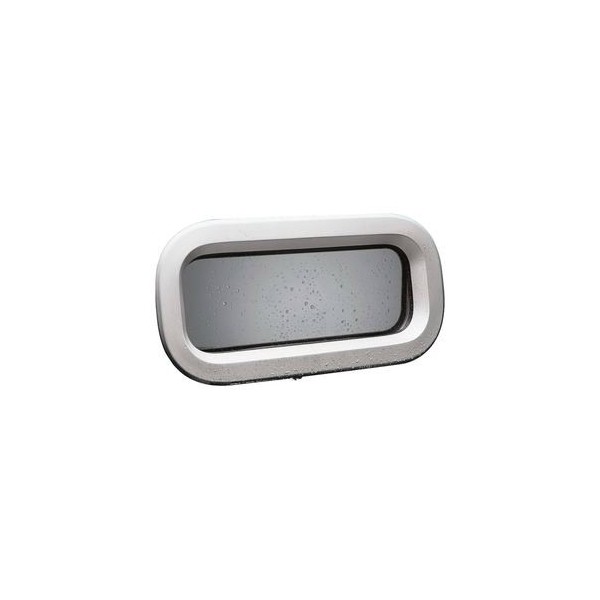

Atlantic T30 opening porthole - thick valance
The Atlantic porthole has a discreet line and clear Plexiglas, set in an elegant aluminum frame.
Full range of spare parts available
Clip handles (standard) / Screw handles (optional)
Plexiglas color: Gray (standard), other colors optional
Frame finish: Silver-gray anodized (standard), other finishes available
Friction hinges
Supplied with aluminum cladding and insect screen
Opening and fixed portholes supplied with screws and bolts

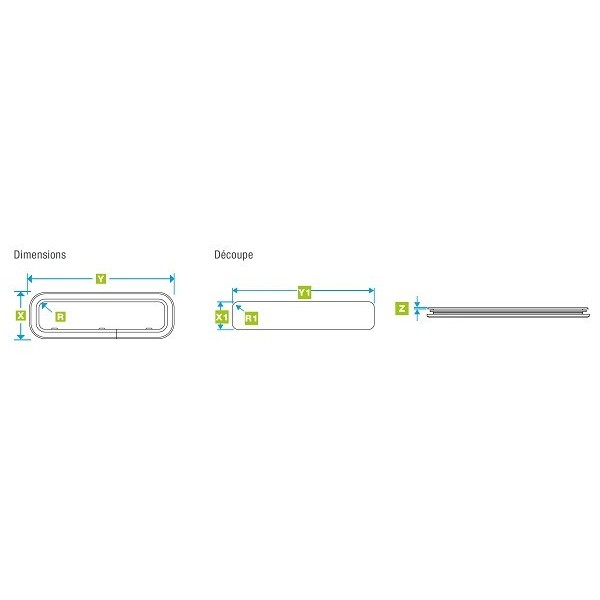

Dimensions : Cut-out :
X : 200 mm X1 : 180 mm
Y : 400 mm Y1 : 380 mm
R : 71 mm R1 : 61 mm
Z : 6 mm
Weight: 2.2 Kg
