Data sheet

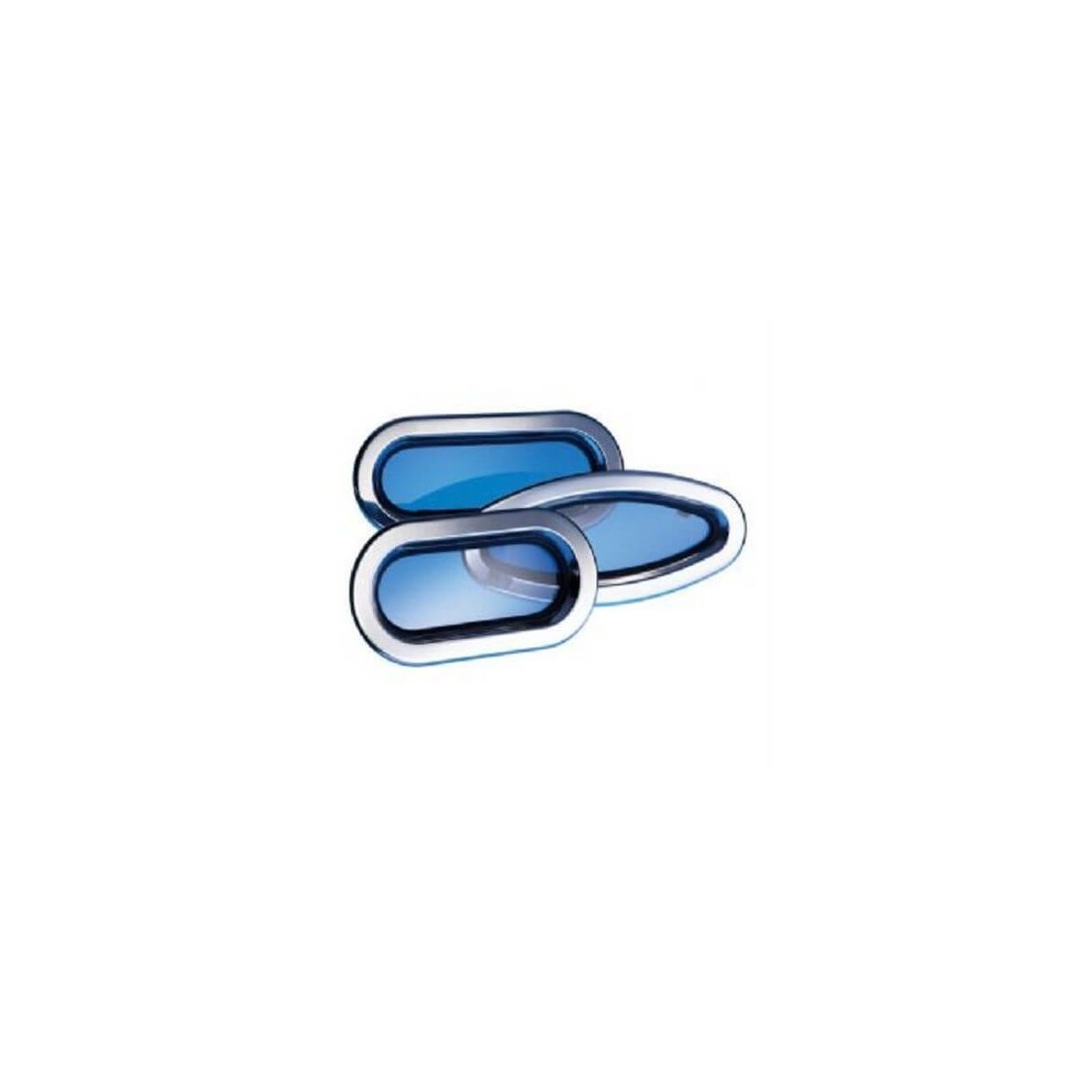

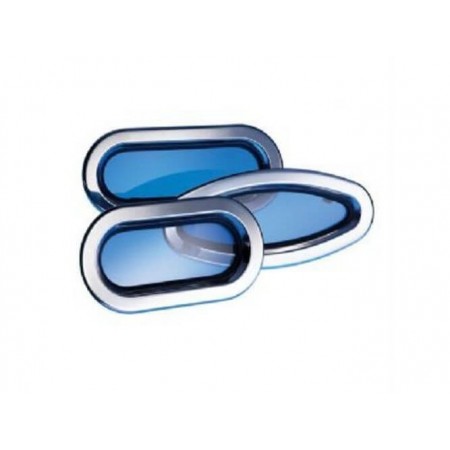

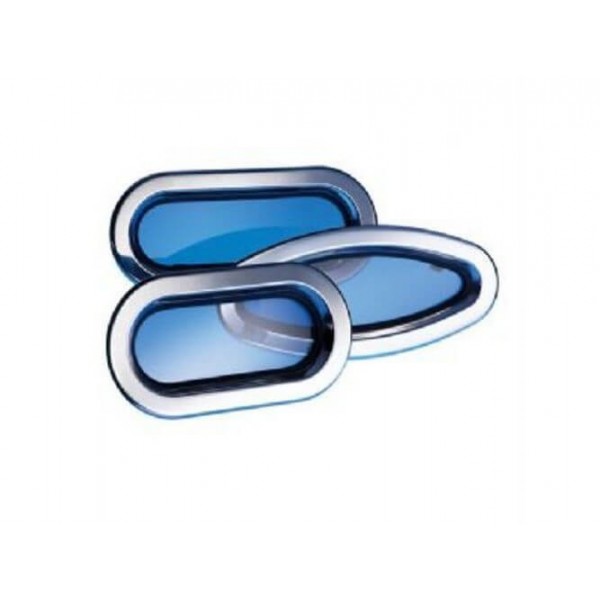

T0 fixed stainless steel portlight
With its polished stainless steel frame, the stainless steel portlight will add sparkle to your boat. Handles and hinges are fixed to the edges of the plexiglass for maximum visibility and a modern look.
Supplied with white ABS cover and insect screen
Can be installed with watertight sealant or closed-cell PVC adhesive
Easy to install by interlocking the inner and outer frame with the screws supplied, simply tightened to the outer frame
Clip (standard) / twist (optional) handles
Molding color: gray
Plexiglas color: gray (standard), other colors available as options

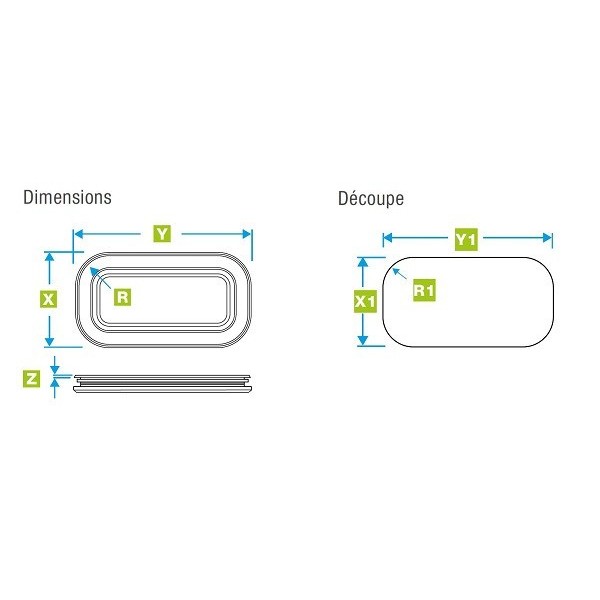

Dimensions : Cut-out :
X: 176 mm X1: 156 mm
Y: 323 mm Y1: 303 mm
R : 62 mm R1 : 52 mm
Z : 4 mm
Weight: 1.5 Kg
Maximum shell thickness: 30 mm
Min. hull thickness: 9 mm
