- -€14.67
Standard T1RE opening porthole
Ref.
393180200
€279.92
Tax included
Public price
€294.59
Price tax excl. / DOM TOM
€279.92
393180200

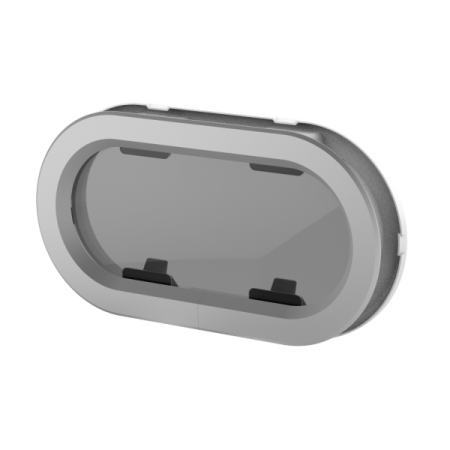

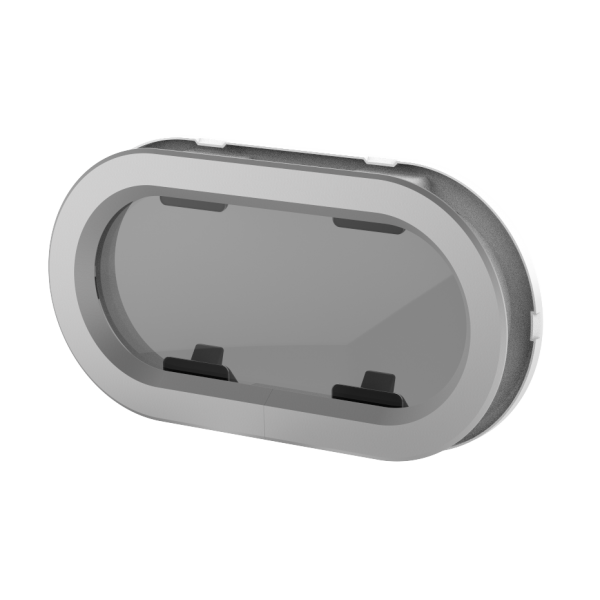

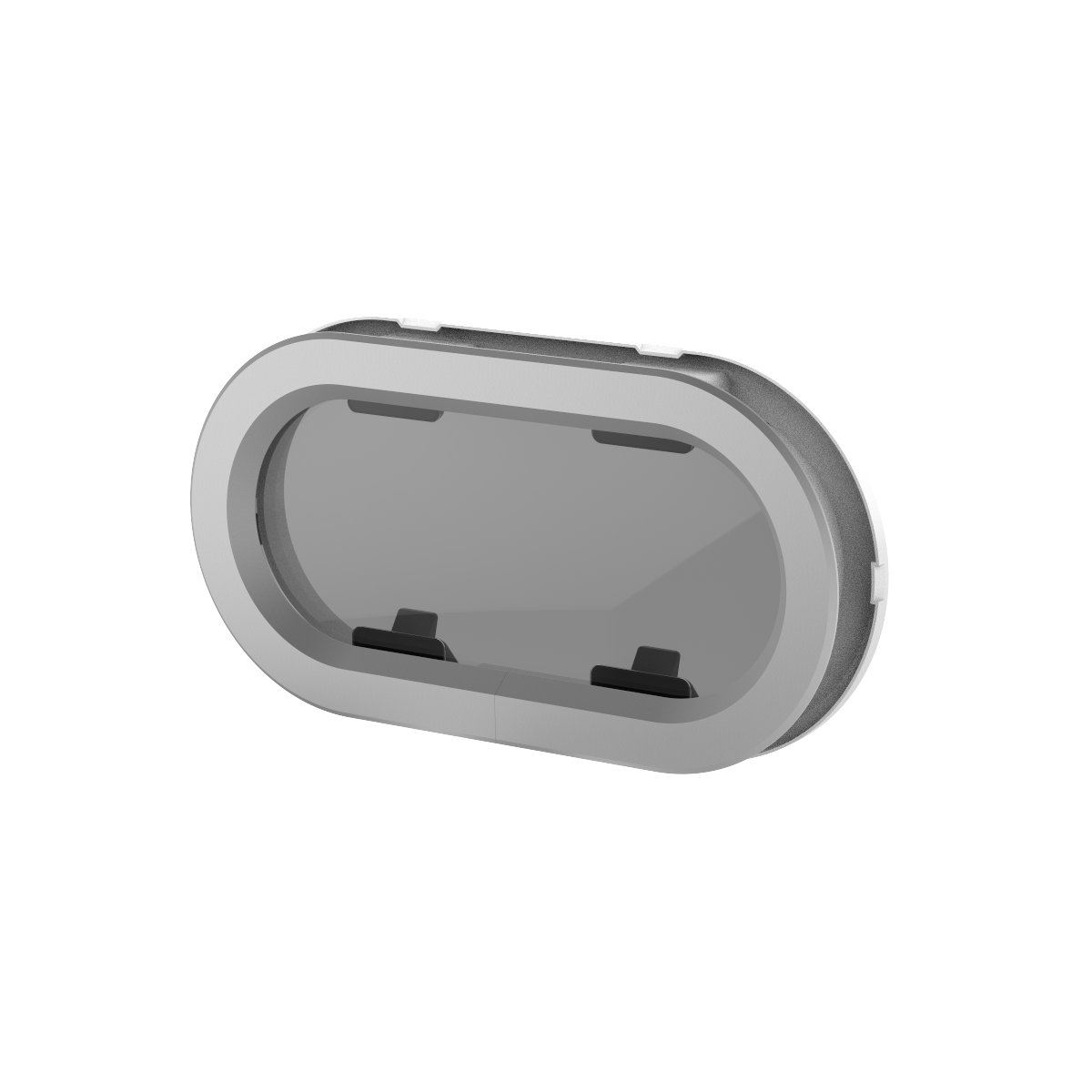

Standard T1RE opening porthole
In perfect harmony with the deck panels Lewmar, the Standard porthole is elegant, well-priced, easy to install and use.
Easy to install by clamping the 2 edges of the cabin between the inside and outside of the frame with the screws supplied clamped in the outer frame
White ABS plastic interior trim
Supplied with trim and screen
Clip handles (standard) / twist (optional)
Molding color: gray
Plexiglas color: Gray (standard) other colors available as options
Frame finish: Silver-gray anodized (standard). Other finishes available
Full range of spare parts available

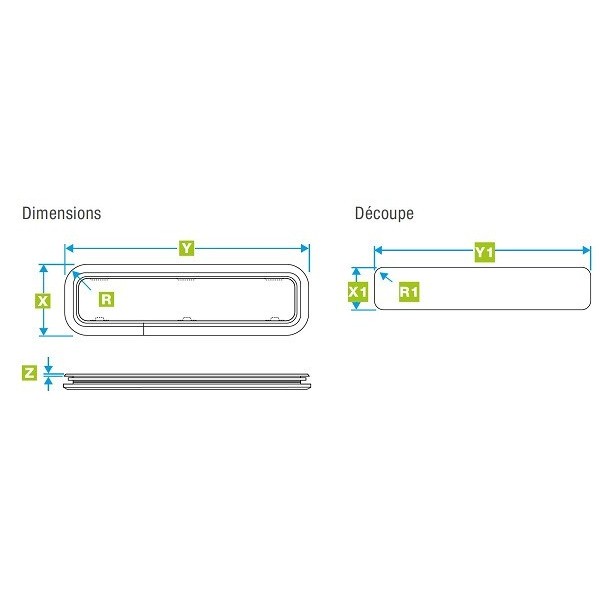

Dimensions : Cutout :
X : 191 mm X1 : 171 mm
Y: 367 mm Y1: 347 mm
R : 95.5 mm R1 : 85.5 mm
Z : 4 mm
Weight: 1.3 Kg
Max. hull thickness: 34 mm
Min. hull thickness: 7 mm
