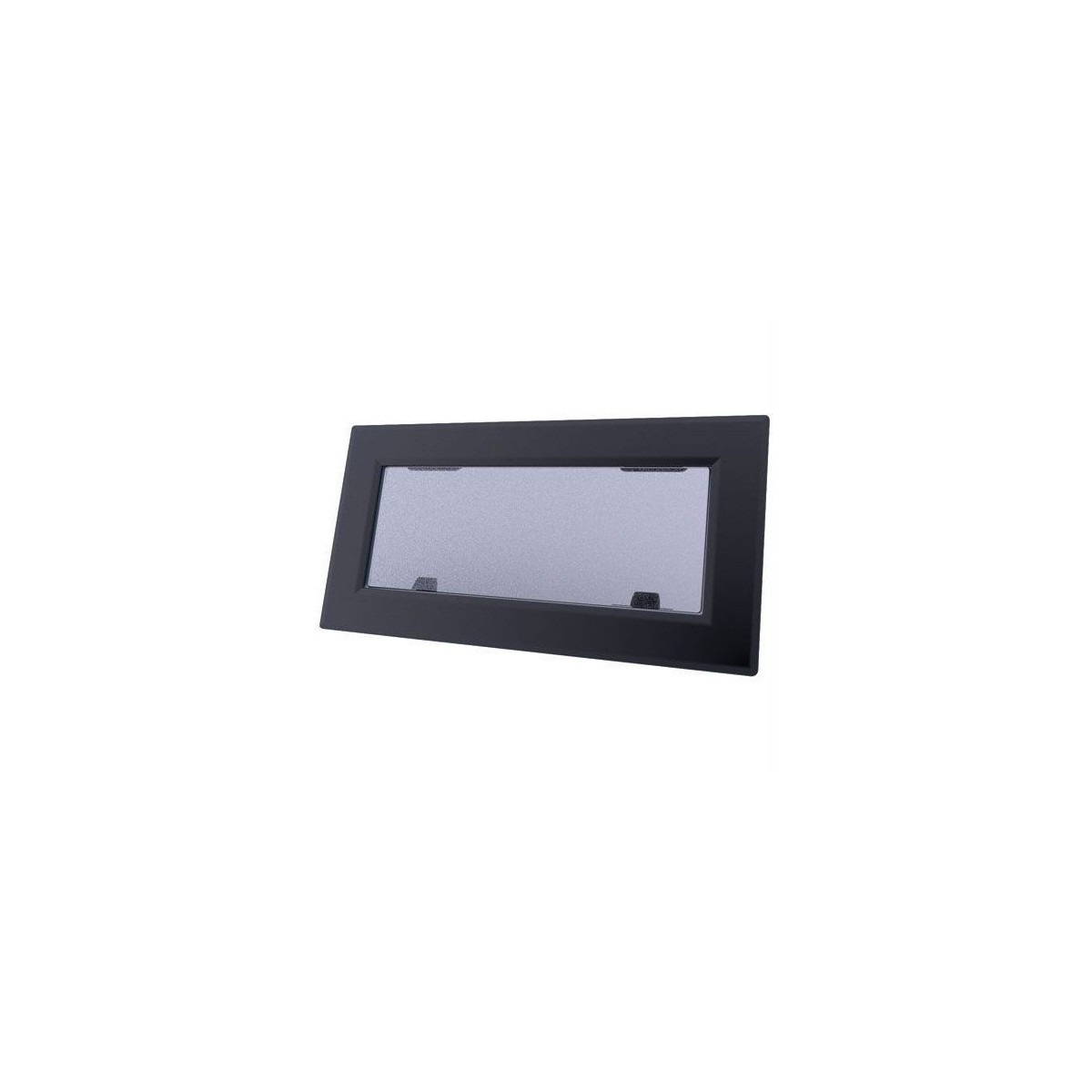

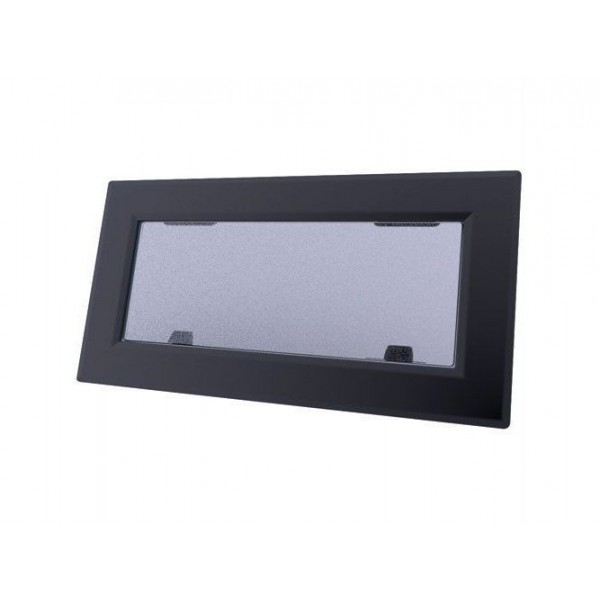

Flush T3 mitered window - grey

To complement the styling of the Flush panel range, Flush mitered portholes offer a continuous line from hull to porthole. When installed in plexiglass, the Flush mitered porthole offers a ventilation solution while maintaining the illusion of a larger opening. The number of textures, angles and levels is reduced to minimize the visual impact of the porthole on the boat

The plexiglass is virtually flush with the surface of the frame

Thicker plexiglass is used to achieve the flush effect

Handle: clip (standard) / twist (optional)12 mm plexiglass window

Color: Gray

Frame color: Black overlay paint

Insect screens are not supplied as standard with these portholes.

Weight : 2 Kg

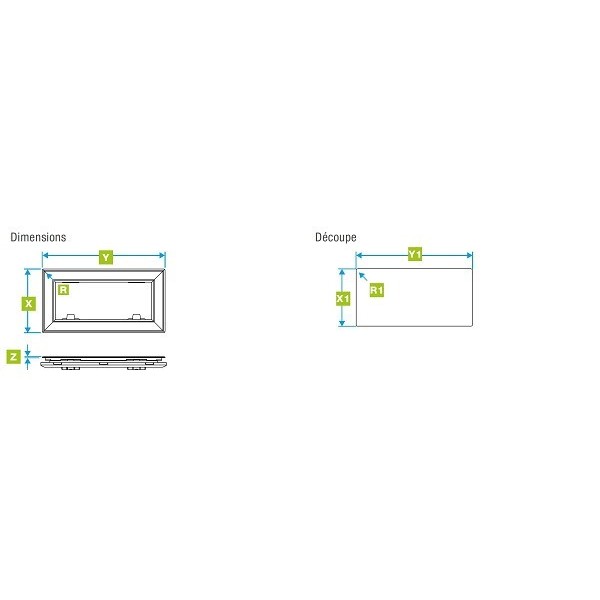

Dimensions : Cut-out :

X : 190 mm X1 : 171 mm

Y : 448 mm Y1 : 429 mm

R : 5 mm R1 : 5 mm

Z : 4 mm
