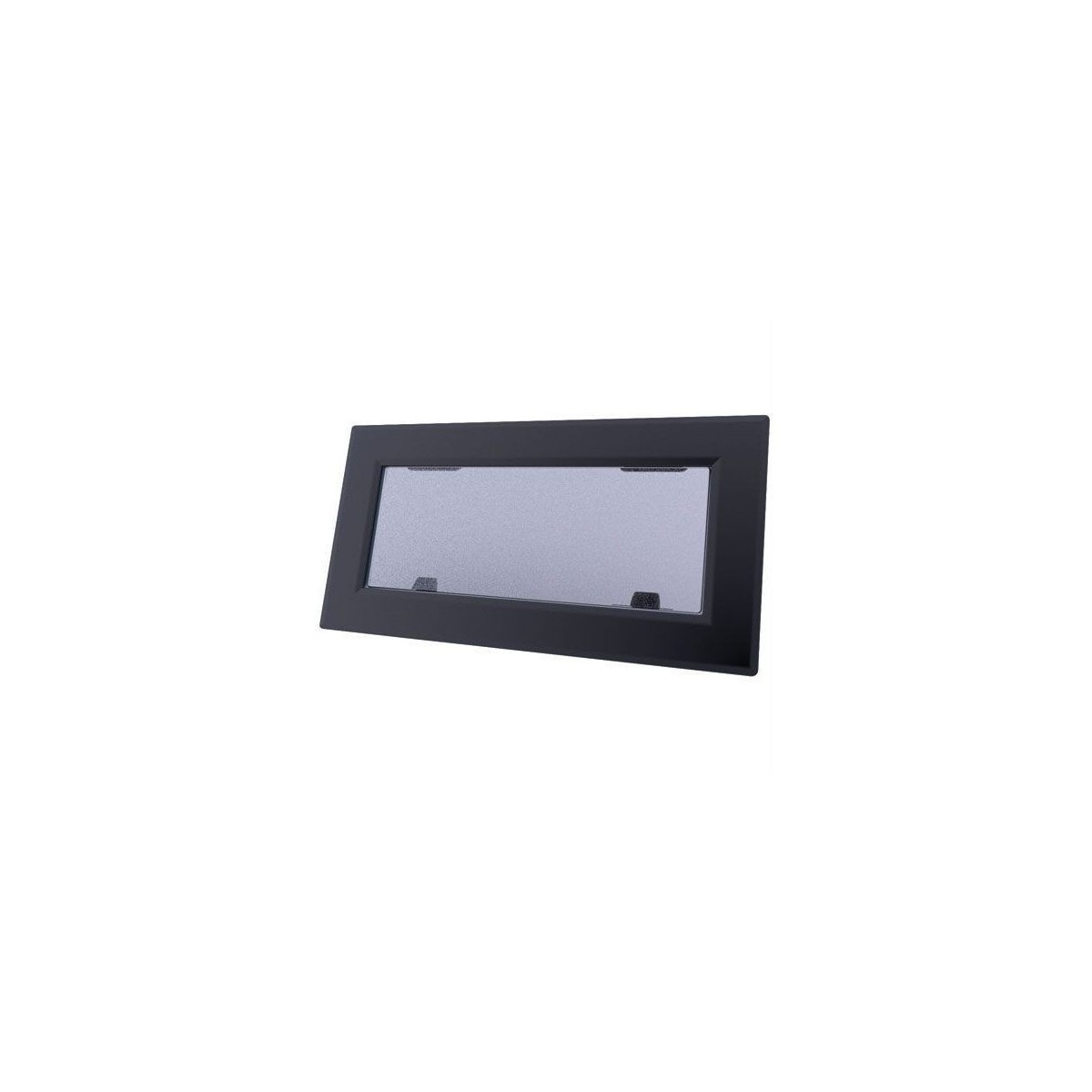

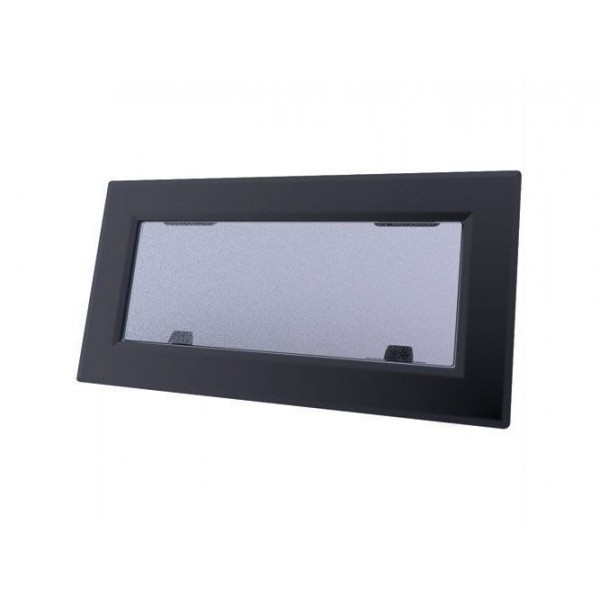

Flush sightglass T4 - grey

To complement the styling of the Flush panel range, Flush mitered portholes offer a continuous line from hull to porthole. When installed in plexiglass, the Flush mitered porthole offers a ventilation solution while maintaining the illusion of a larger opening. The number of textures, angles and levels is reduced to minimize the porthole's visual impact on the boat.

The plexiglass is virtually flush with the surface of the frame

A thicker plexiglass is used to achieve the flush effect

12 mm Plexiglas window

Handle: clip (standard) / twist (optional)

Color: Gray

Frame color: Black overlay paint

Insect screens are not supplied as standard with these portholes.

Weight: 2.8 Kg

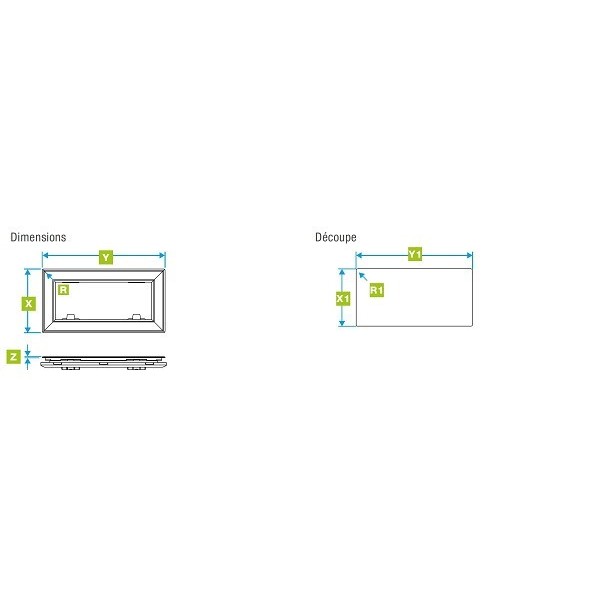

Dimensions : Cut-out :

X : 190 mm X1 : 171 mm

Y : 645 mm Y1 : 626 mm

R : 5 mm R1 : 5 mm

Z : 4 mm
