Standard T4R opening porthole

Ref. 393440200
€713.90 Tax included
Public price
€751.07
or pay in
20x 60x
Price tax excl. / DOM TOM €594.92
Quantity
OUT OF STOCK
By buying this product you can collect up to 713 loyalty points. Your cart will total 713 points that can be converted into a voucher of €7.13.
393440200

Data sheet

Description

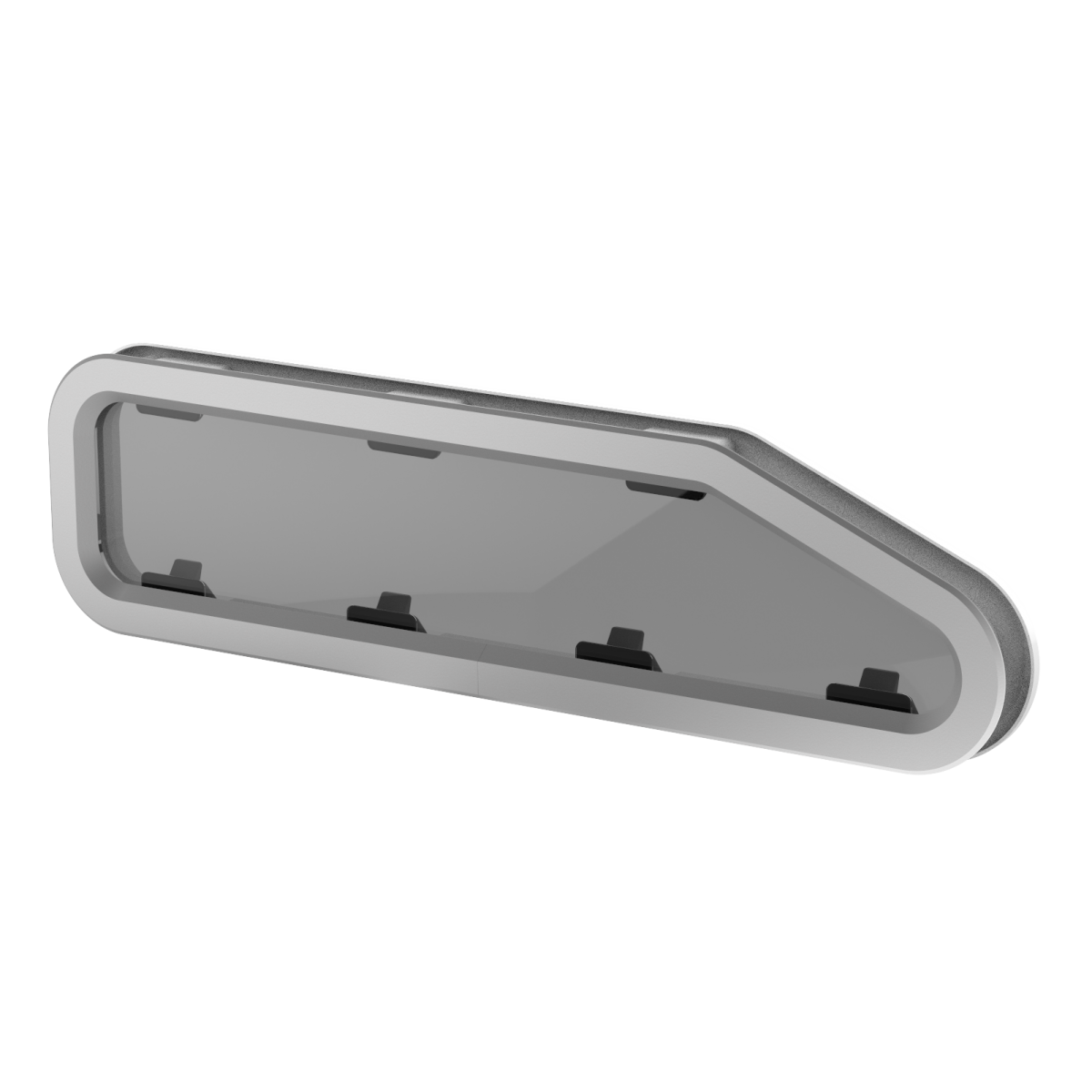

T4R Standard opening porthole

In perfect harmony with the deck hatches Lewmar, the Standard porthole is elegant, well-priced, easy to install and use.
Easy to install by clamping the 2 edges of the cabin between the inside and outside of the frame with the screws supplied clamped in the outer frame
Supplied with white ABS plastic interior trim
Clip (standard) / twist (optional) handles
Molding color: Gray
Plexiglas color: Gray (standard) other colors available as options
Frame finish: Silver-gray anodized (standard). Other finishes available
Full range of spare parts available

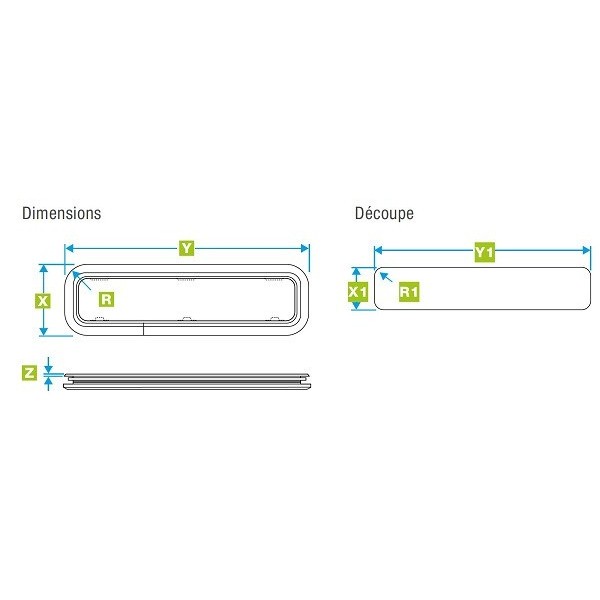

Dimensions : Cutout :
X : 195 mm X1 : 175 mm
Y: 708 mm Y1: 688 mm
R : 62 mm R1 : 52 mm
Z : 4 mm
Weight: 2.4 Kg
Max. hull thickness: 34 mm
Min. hull thickness: 7 mm
