Standard opening porthole T7RE
Ref.
393780200
€374.08
Tax included
Public price
€393.50
Price tax excl. / DOM TOM
€374.08
393780200

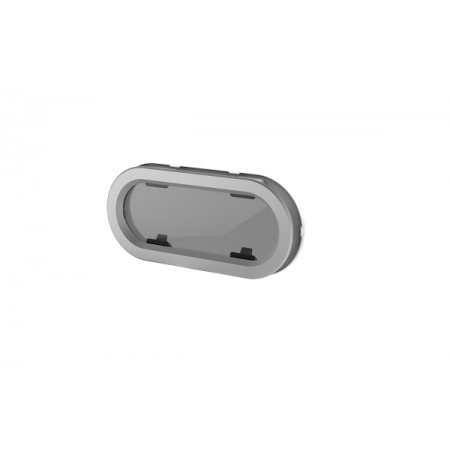

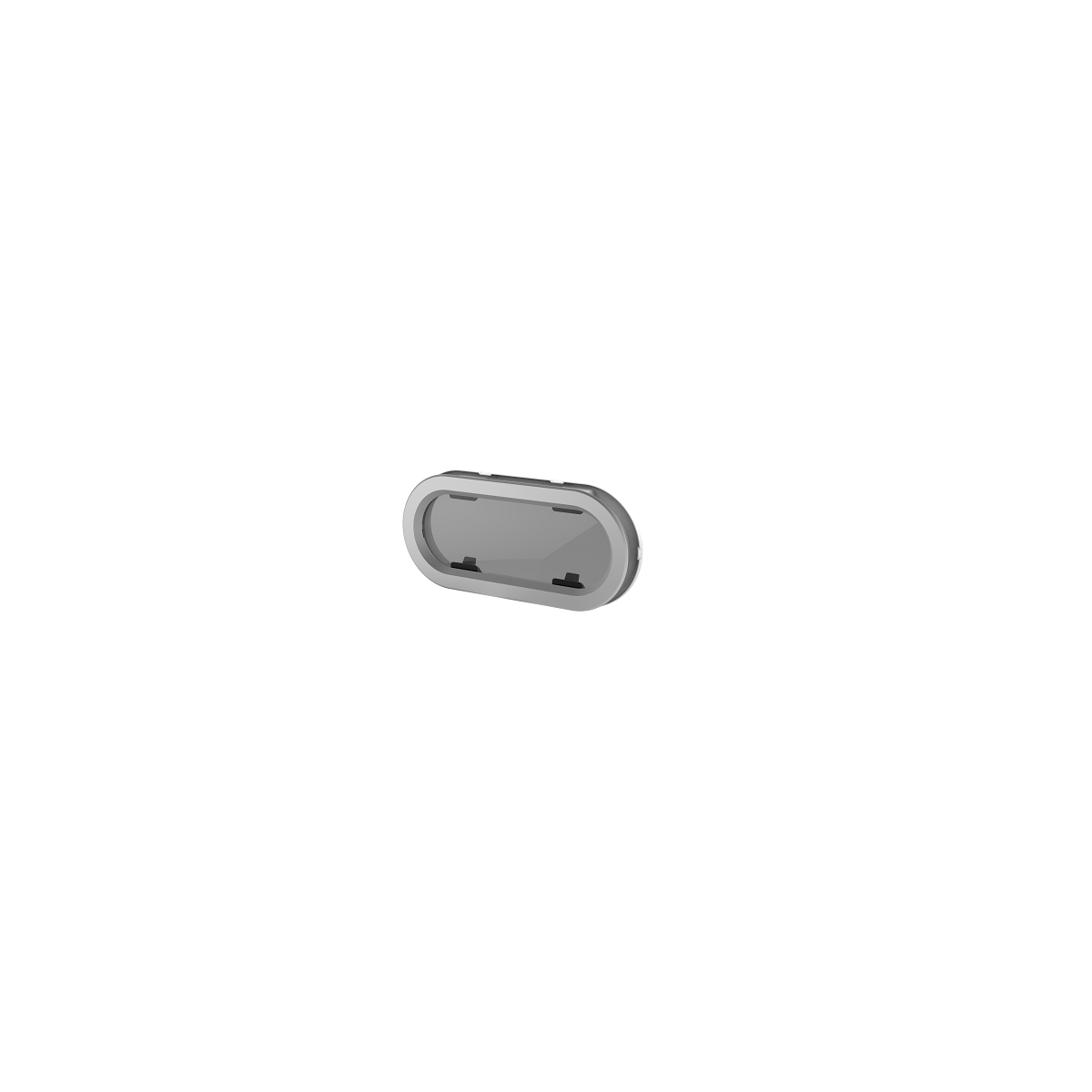

Standard opening porthole T7RE
In perfect harmony with the deck hatches Lewmar, the Standard portlight is elegant, well-priced, easy to install and use.
Easy to install by clamping the 2 edges of the cabin between the inside and outside of the frame with the screws supplied clamped in the outer frame
White ABS plastic interior trim
Supplied with trim and screen
Clip (standard) / twist (optional) handles
Molding color: gray
Plexiglas color: Gray (standard) other colors available as options
Frame finish: Silver-gray anodized (standard). Other finishes available
Full range of spare parts available

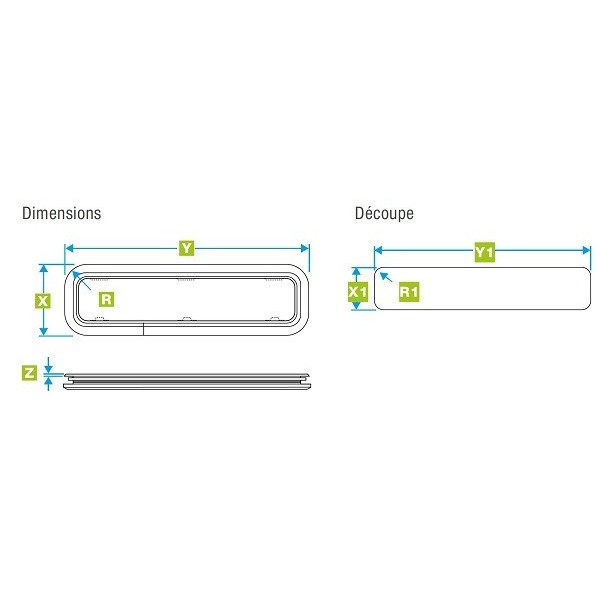

Dimensions : Cutout :
X : 191 mm X1 : 171 mm
Y: 425 mm Y1: 405 mm
R : 95.5 mm R1 : 85.5 mm
Z : 4 mm
Weight: 2.4 Kg
Max. hull thickness: 34 mm
Min. hull thickness: 7 mm
