Self-aligning system on Constellation™ partition without brake

Ref. 89101098
€696.58
Public price
€732.85
or pay in
20x 60x
Price tax excl. / DOM TOM €696.58
Quantity
OUT OF STOCK
By buying this product you can collect up to 696 loyalty points. Your cart will total 696 points that can be converted into a voucher of €6.96.
89101098
Description

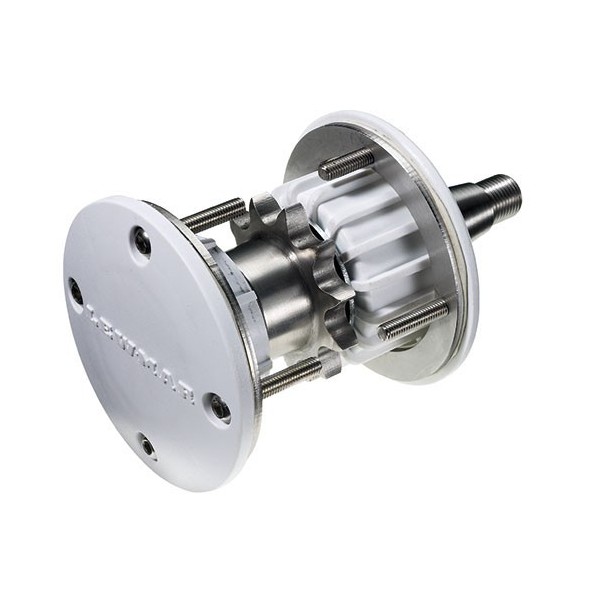

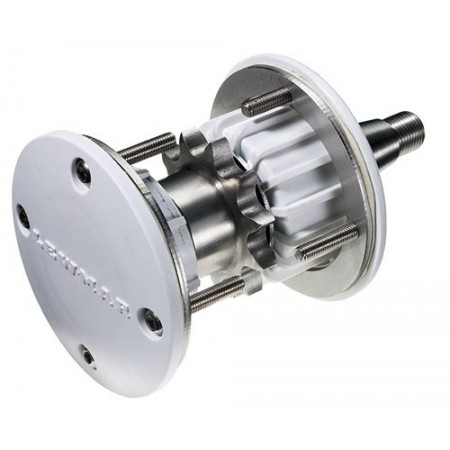

Self-aligning system on Constellation™ bulkhead without brake

St/St SA steerer 11T 196 mm

The bulkhead-mounted steerer features high-efficiency, sealed, pre-lubricated double ball bearings for long, maintenance-free life.
Ball-mounted plate compensates for misalignment or angle, when mounted in a bracket
Compact installation with a minimum distance of 100 mm between partitions
Available with a sliding pinion to facilitate alignment with multiple sheaves
Bar axis supported by sealed roller bearings
Friction brake mounted on the tiller shaft
Polymer composite front and rear bearing supports
High-efficiency sealed double ball bearings
Stainless steel support plate for maximum rigidity
Quick and easy installation

Various sprocket sizes
Customized bar shafts on request
